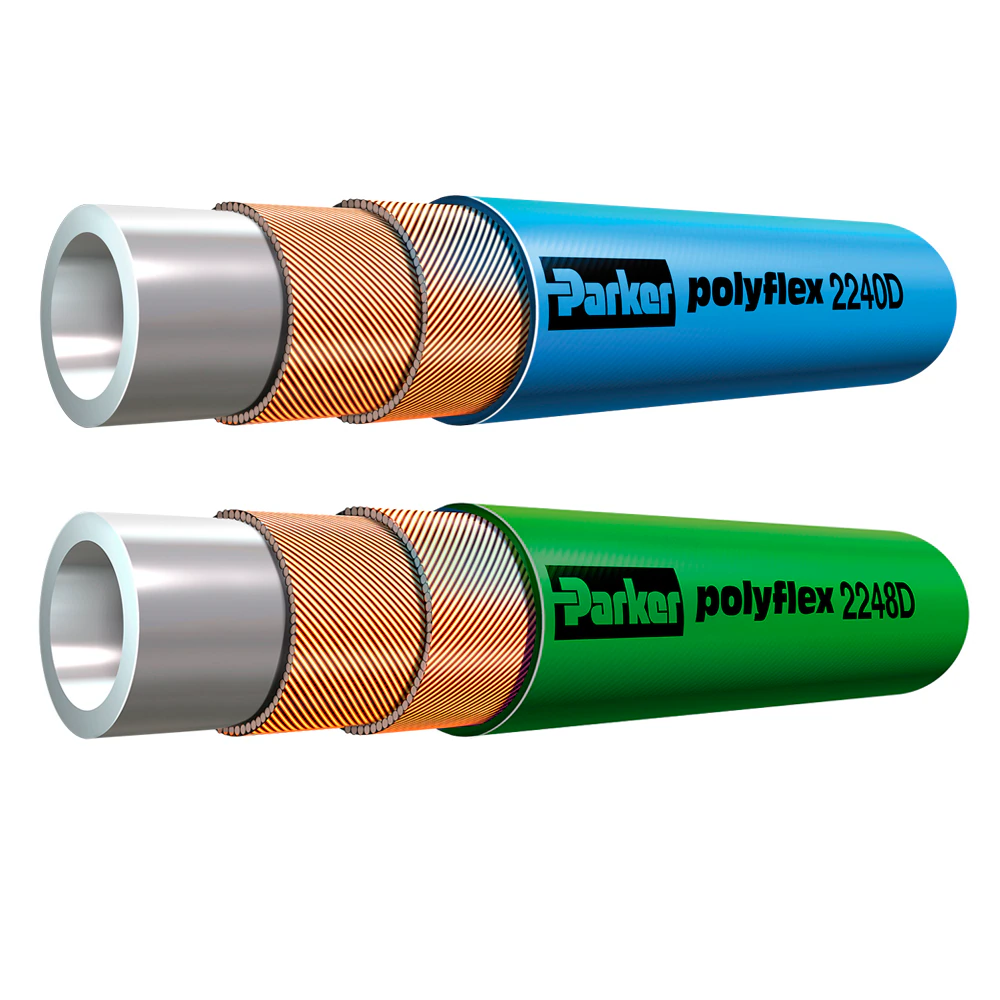

2240D/2248D
DIN 1829-2
Description
High Pressure Water Blast 2240D/2248D Hoses are developed for use as a high pressure tube cleaning hose and for ultra high pressure applications.
Technical Specifications
| Design Factor: | 2.5 |
| Cover Color: | Blue (2248D hose), Green (2240D hose) |
| Media: | Chemicals, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | AX Series (dependent on hose), TX Series (dependent on hose) |
| Inside Diameter: | 1/8 to 5/16 inch, 3.2 to 7.9 mm |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Maximum Operating Pressure: | 1034 to 1500 bar, 15000 to 21750 psi |
| Application: | Construction Equipment, Industrial Cleaning, Shipbuilding, Waterblasting |
| Weight: | 0.05 to 0.07 lb/ft, 0.07 to 0.10 kg/m |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Cover Material: | Polyamide (PA) |
| Hose Reinforcement Material: | 2 Spirals of Maximum Tensile Steel Wire |
| Outside Diameter: | 0.280 inch, 0.300 inch, 0.310 inch, 0.370 inch, 0.460 inch, 0.530 inch, 7.1 to 13.5 mm |
| Minimum Bend Radius: | 2-3/8 to 4-3/4 inch, 60 to 125 mm |
Additional information
| Part Number | 2240D-025V33-TC, 2240D-02V33-TC, 2240D-03V33-TC, 2240D-04V33-TC |
|---|
