2245D (High pressure)
Certification: DIN 1829-2
Description

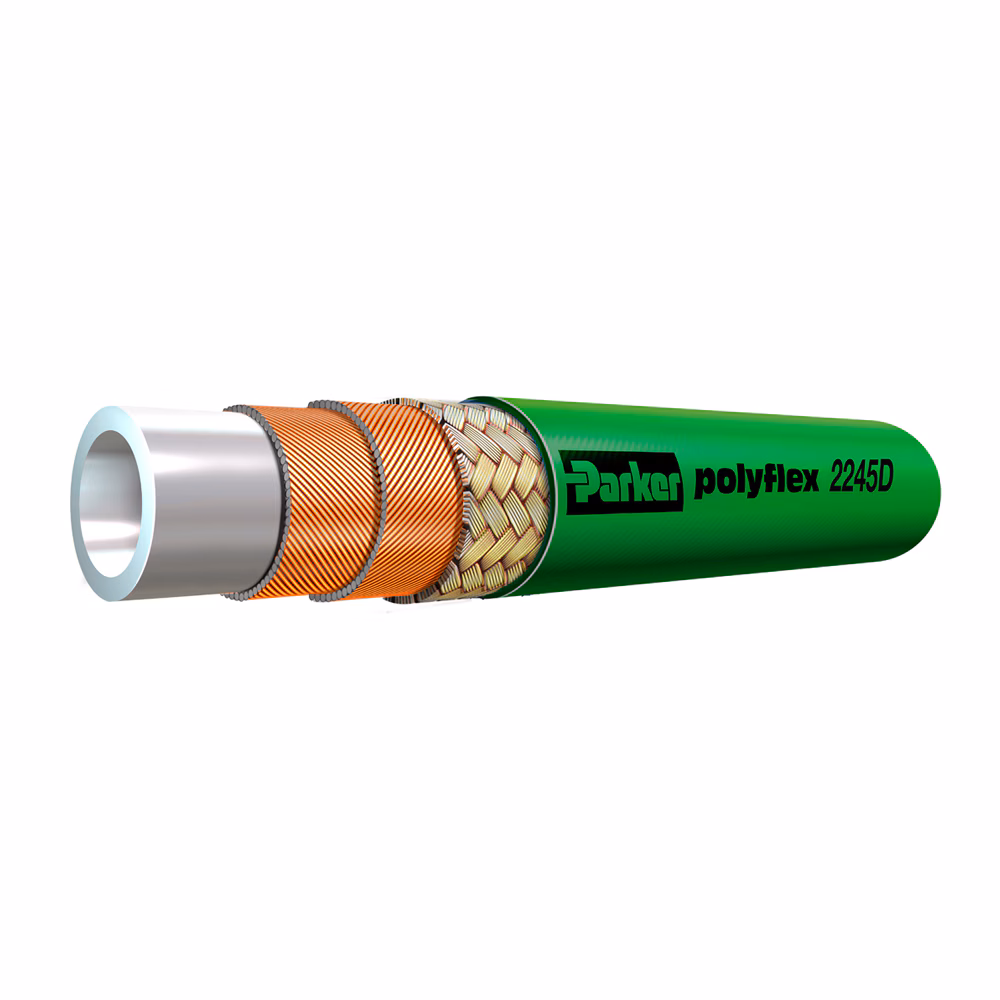

Parker 2245D flex lance hose is DIN EN1829-2 compliant and operates up to 15,000 psi.
Technical Specifications
| Design Factor: | 2.7 |
| Media: | Water |
| Compatible Fitting: | AX Series |
| Specifications Met: | DIN 1829-2 |
| Maximum Operating Pressure: | 103 MPa, 1034 bar, 15000 psi |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Bend Radius: | 3.74 inch, 95 mm |
| Application: | Industrial |
| Cover Color: | Green |
| Weight: | 0.14 lb/ft, 0.21 kg/m |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Cover Material: | Polyamide (PA) |
| Size: | -3 |
| Inside Diameter: | 3/16 inch, 4.8 mm |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Hose Reinforcement Material: | 2 Spirals of High Tensile Steel Wire and 1 Braid of Steel Wire |
| Outside Diameter: | 0.420 inch, 10.7 mm |
Additional information
| Part Number | 2245D-03V33 |
|---|
