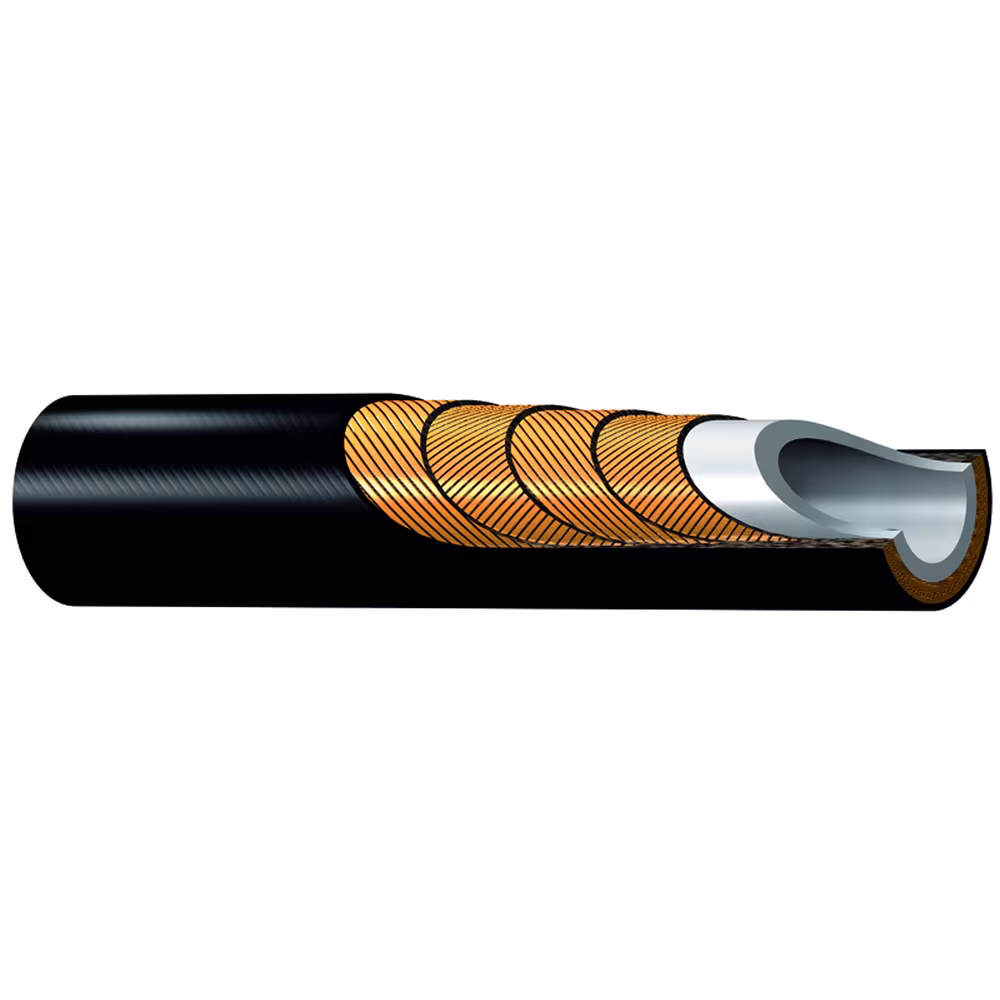

2448N (High pressure-EU)
Certification: API 17E, ISO 13628-5
Description
Parker 2448N Hoses for the Oil & Gas industry are designed for safety, versatility and efficiency, matching the tough requirements and expectations of the market place. For working pressure up to 103.5 MPa.
Technical Specifications
| Industry: | Marine, Oil & Gas |
| Hose Inner Tube Material: | Polyamide 11 Methanol Washed |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -40 °F |
| Product Type: | High Pressure Hose, Hydraulic Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide 12 |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | High Pressure Wire Hose |
| Materials of Construction: | Thermoplastic |
| Media: | Chemicals (Methanol) – Check your fluid compatibility with our catalogue chart., Coolants (Glycol), Petroleum Hydraulic Fluids |
| Specifications Met: | API 17E, ISO 13628-5 |
| Compatible Fitting: | 8X Series |
| Weight: | 0.38 to 0.94 kg/m, 0.26 to 0.63 lb/ft |
| Inside Diameter: | 1/4 to 1/2 inch, 6.4 to 12.9 mm |
| Maximum Operating Pressure: | 860 to 1035 bar, 86.0 to 103.5 MPa, 12500 to 15000 psi |
| Application: | Subsea BOP |
| Hose Reinforcement Material: | High Strength Wire |
| Minimum Bend Radius: | 5.905 to 7.874 inch, 150 to 200 mm |
| Outside Diameter: | 0.539 to 0.890 inch, 13.69 to 22.61 mm |
Additional information
| Part Number | 2448N-04V91, 2448N-08V91 |
|---|
