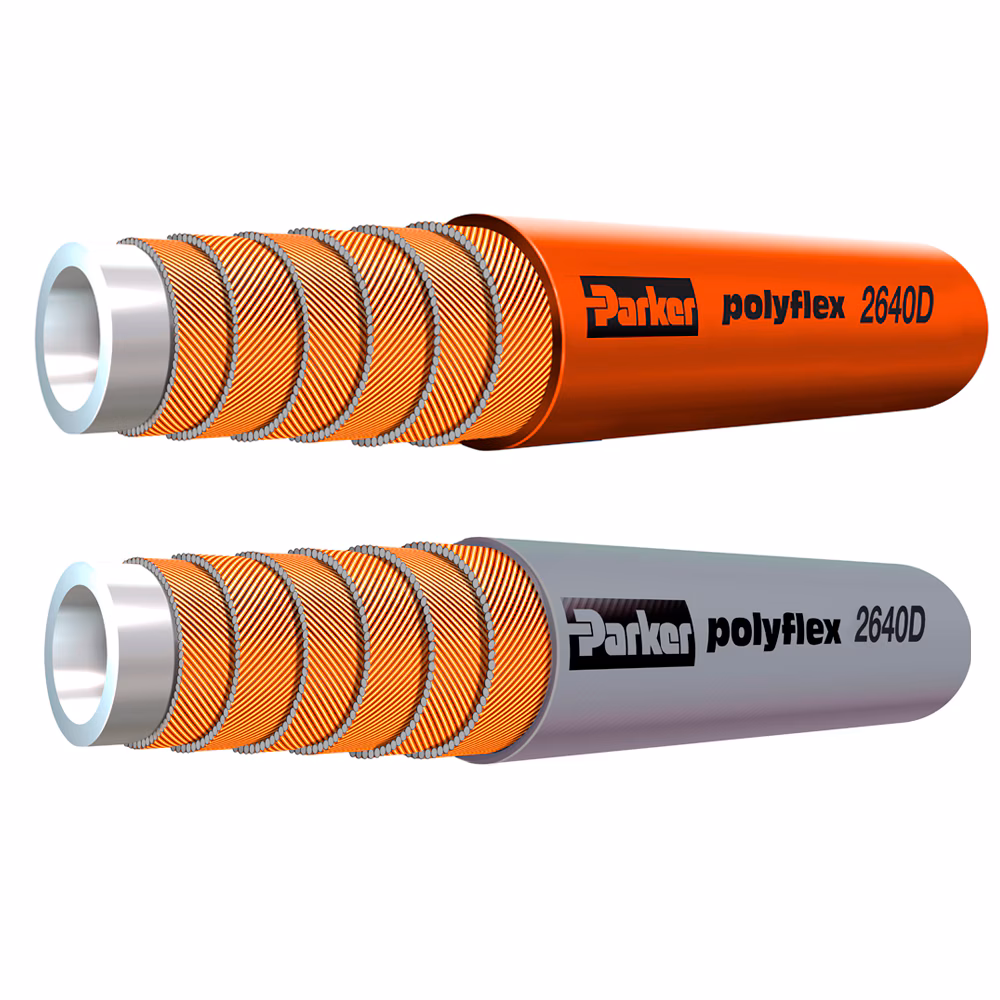

2640D (High pressure)
Certification: DIN 1829-2
Description
High Pressure 2640D water jet hoses handles pressures up to 40,600 psi (4,000 bar), making it ideal for water jet cutting equipment and ship washdown applications.
Technical Specifications
| Design Factor: | 2.5 |
| Cover Color: | Gray (3/16 inch hose), Orange (5/32 inch hose) |
| Media: | Chemicals, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | 2X Series |
| Weight: | 0.12 to 0.44 kg/m, 0.29 to 0.41 lb/ft |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Inside Diameter: | 5/32 to 3/16 inch, 4.0 to 4.8 mm |
| Maximum Operating Pressure: | 2500 to 2800 bar, 35230 to 40600 psi |
| Application: | High Pressure Hydraulics, Waterblasting |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Cover Material: | Polyamide (PA) |
| Hose Reinforcement Material: | 6 Spirals of Maximum Tensile Steel Wire |
| Outside Diameter: | 0.470 inch, 0.510 inch, 12.0 to 12.9 mm |
| Minimum Bend Radius: | 5-1/2 to 6-11/16 inch, 140 to 175 mm |
Additional information
| Part Number | 2640D-025V35 |
|---|
