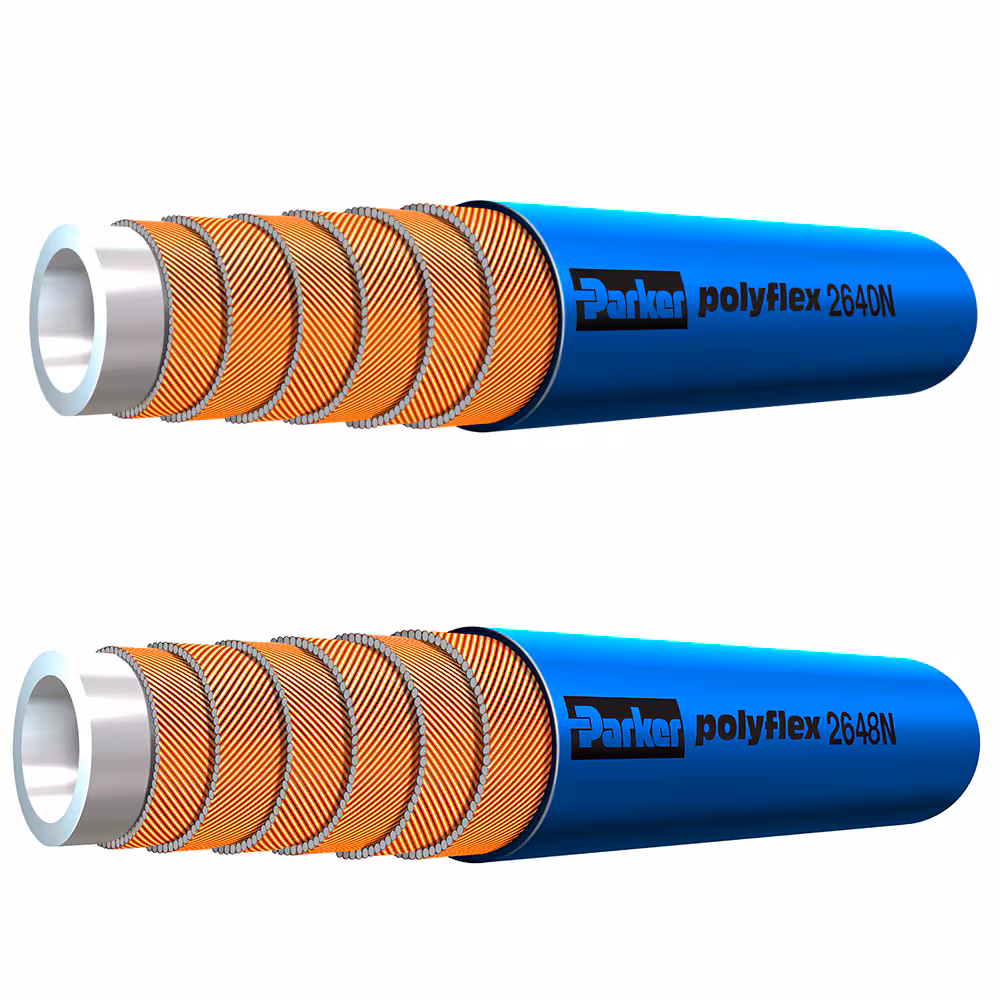

2640N/2648N
DIN 1829-2
Description
Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.
Technical Specifications
| Design Factor: | 2.5 |
| Media: | Chemicals, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | JX Series, 5X Series, CX Series, 2X Series |
| Weight: | 1.37 to 3.10 kg/m, 0.92 to 2.08 lb/ft |
| Inside Diameter: | 1/2 to 1 inch, 12.7 to 25.4 mm |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Maximum Operating Pressure: | 1400 to 1800 bar, 140.0 to 180.0 MPa, 20300 to 26100 psi |
| Application: | Construction Equipment, Industrial Cleaning, Shipbuilding, Waterblasting |
| Hose Reinforcement Material: | 6 Spirals of Maximum Tensile Steel Wire |
| Hose Inner Tube Material: | Polyamide (PA) |
| Cover Material: | Polyamide (PA) |
| Outside Diameter: | 0.960 inch, 1.300 inch, 1.330 inch, 1.610 inch, 24.5 to 40.8 mm |
| Minimum Bend Radius: | 11-3/4 to 15-3/4 inch, 290 to 400 mm |
| Size: | -8 to -16 |
Additional information
| Part Number | 2640N-08V32, 2640N-12V32 |
|---|
