426
Certification: SAE J517 (MSHA compliant Cover)
Description

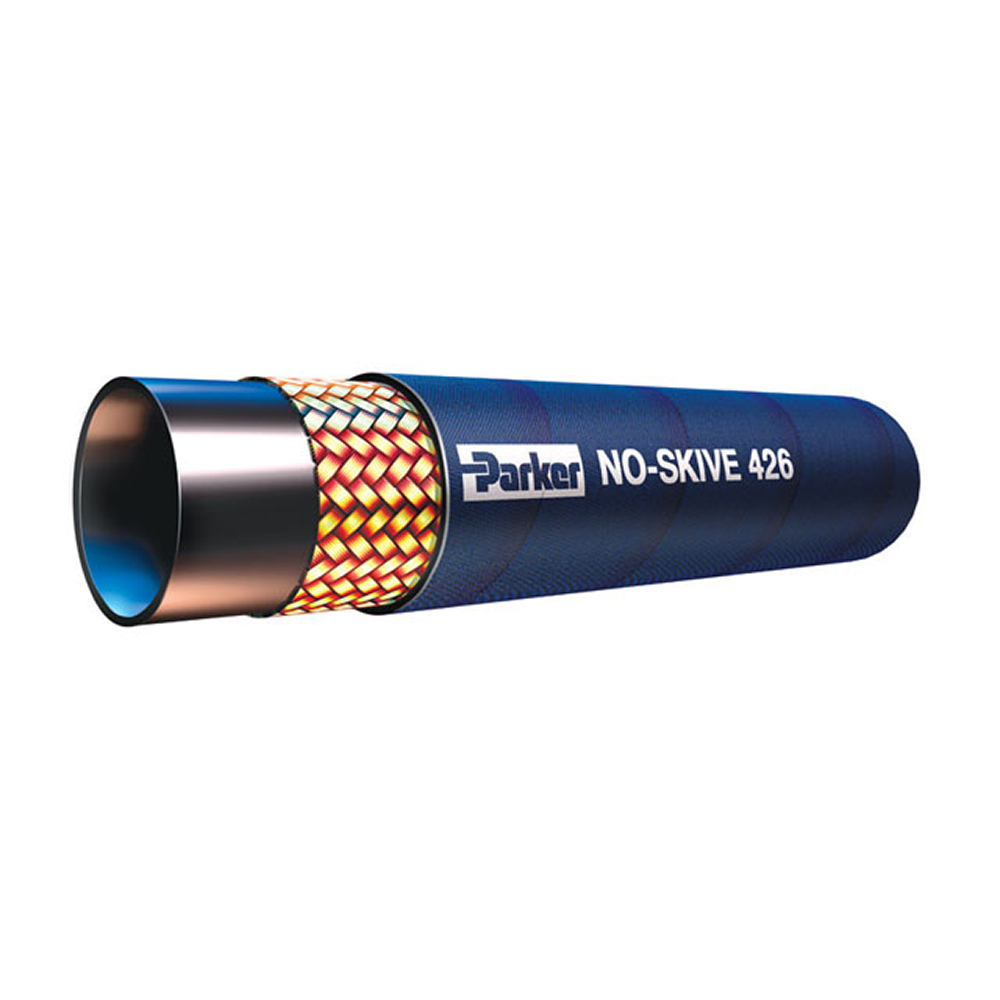

Parker’s 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 PSI, which is designed for high-temperature applications.
Technical Specifications
| Cover Material: | PKR® Rubber MSHA approved |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | SAE J517 (MSHA compliant Cover) |
| Compatible Fitting: | 43 Series |
| Weight: | 0.94 to 2.23 kg/m, 0.63 to 1.50 lb/ft |
| Inside Diameter: | 1 to 2 inch, 25 to 51 mm |
| Maximum Operating Pressure: | up to 19.2 MPa, up to 2750 psi, up to 192 bar |
| Application: | Construction Equipment, Hydraulics, Material Handling, Transportation |
| Hose Reinforcement Material: | 1 Braid of Steel Wire |
| Minimum Bend Radius: | 12 to 25 inch, 300 to 630 mm |
| Outside Diameter: | 1.40 to 2.50 inch, 36 to 64 mm |
| Size: | -4 to -32 |
| Minimum Operating Temperature: | -50 °F, -46 °C |
| Maximum Operating Temperature: | 302 °F, 150 °C |
| Hose Inner Tube Material: | PKR® Rubber |
| Cover Color: | Blue |
Additional information
| Part Number | 426-4, 426-6, 426-8, 426-16, 426-20, 426-24, 426-32, 426-12 |
|---|
