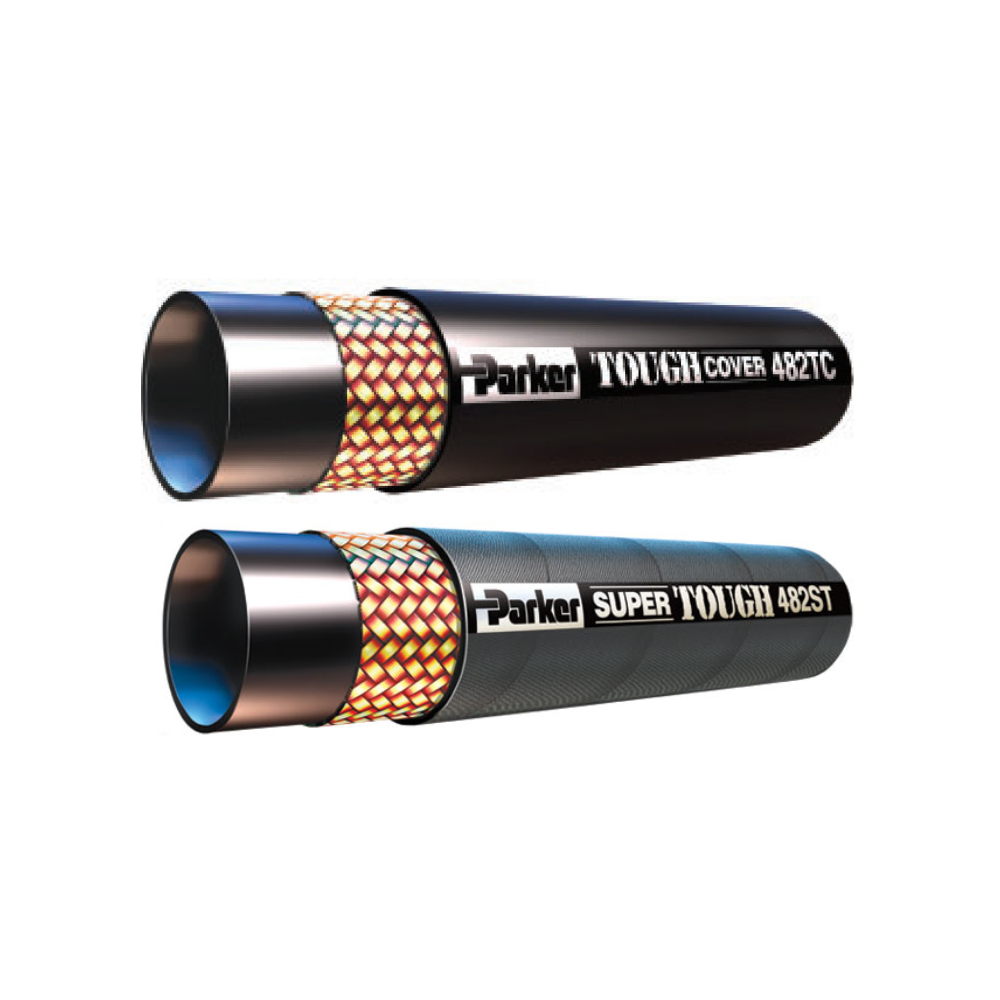

482TC/482ST
Certification: EN 853, Type 1SN, ISO 1436, Type 1SN, SAE J517 and 100R1, Type AT
Description
Parker’s 482 hose is a hydraulic industry standard hose that has a pressure range of 1275-3250 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | EN 853, Type 1SN, ISO 1436, Type 1SN, SAE J517 and 100R1, Type AT |
| Compatible Fitting: | 43 Series, 42 Series |
| Weight: | 0.24 to 0.94 kg/m, 0.16 to 0.63 lb/ft |
| Inside Diameter: | 1/4 to 1 inch, 6.3 to 25 mm |
| Maximum Operating Pressure: | up to 22.7 MPa, up to 3250 psi, up to 227 bar |
| Application: | Construction Equipment, Hydraulics, Material Handling, Transportation |
| Hose Reinforcement Material: | 1 Braid of Steel Wire |
| Minimum Bend Radius: | 50 to 150 mm, 2 to 6 inch |
| Outside Diameter: | 0.53 to 1.41 inch, 14 to 36 mm |
| Size: | -4 to -16 |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber Abrasion Resistant, MSHA approved |
Additional information
| Part Number | 482TC-4, 482TC-5, 482TC-6, 482TC-8, 482TC-12, 482TC-16 |
|---|
