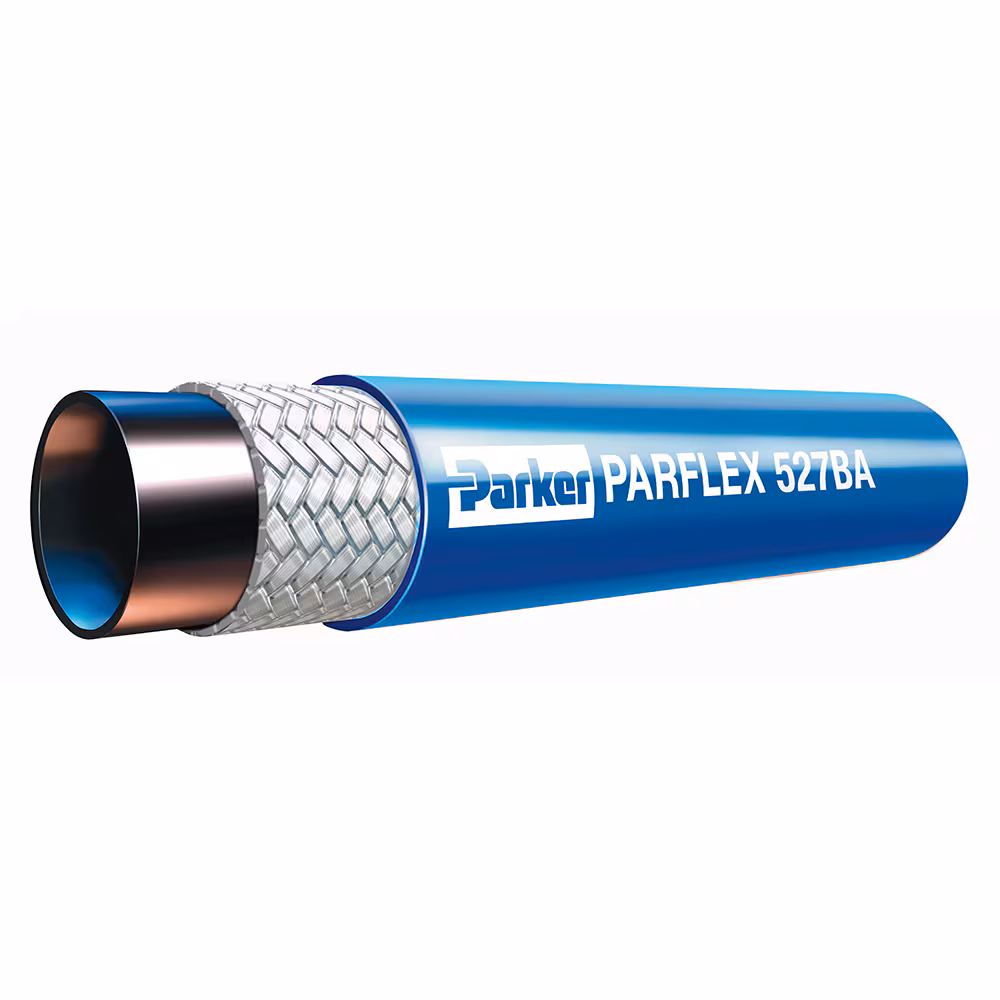

527BA
Parflex
CGA G7.1, Grade E (Breathing Air Standards), NFPA 1901.0
Description
Parkers’ Breathing Air Refill Hose is a 7,000 psi working pressure hose. It complies with CGA G7.1-1 Grade E Breathing Air Standards and NFPA 1901 requirements for Fire Apparatus.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Design Factor: | 4 |
| Media: | Air, Industrial Gases (Compressed Gas) |
| Specifications Met: | CGA G7.1, Grade E (Breathing Air Standards), NFPA 1901.0 |
| Compatible Fitting: | CG Series |
| Maximum Operating Pressure: | 7000 psi, 48.3 MPa, 483 bar |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Inside Diameter: | 3/16 to 1/4 inch, 5 to 6.3 mm |
| Weight: | 0.05 to 0.07 lb/ft, 0.07 to 0.11 kg/m |
| Hose Inner Tube Material: | Polyamide (PA) |
| Cover Material: | Polyurethane |
| Hose Reinforcement Material: | Aramid Fiber |
| Application: | Integrated Containment Fill Stations, Mobile Fill Systems, Portable SCBA Fill |
| Minimum Bend Radius: | 1-1/2 to 3 inch, 38 to 51 mm |
| Outside Diameter: | 0.430 inch, 0.520 inch, 10.9 to 13.2 mm |
Additional information
| Part Number | 527BA-3, 527BA-4 |
|---|
