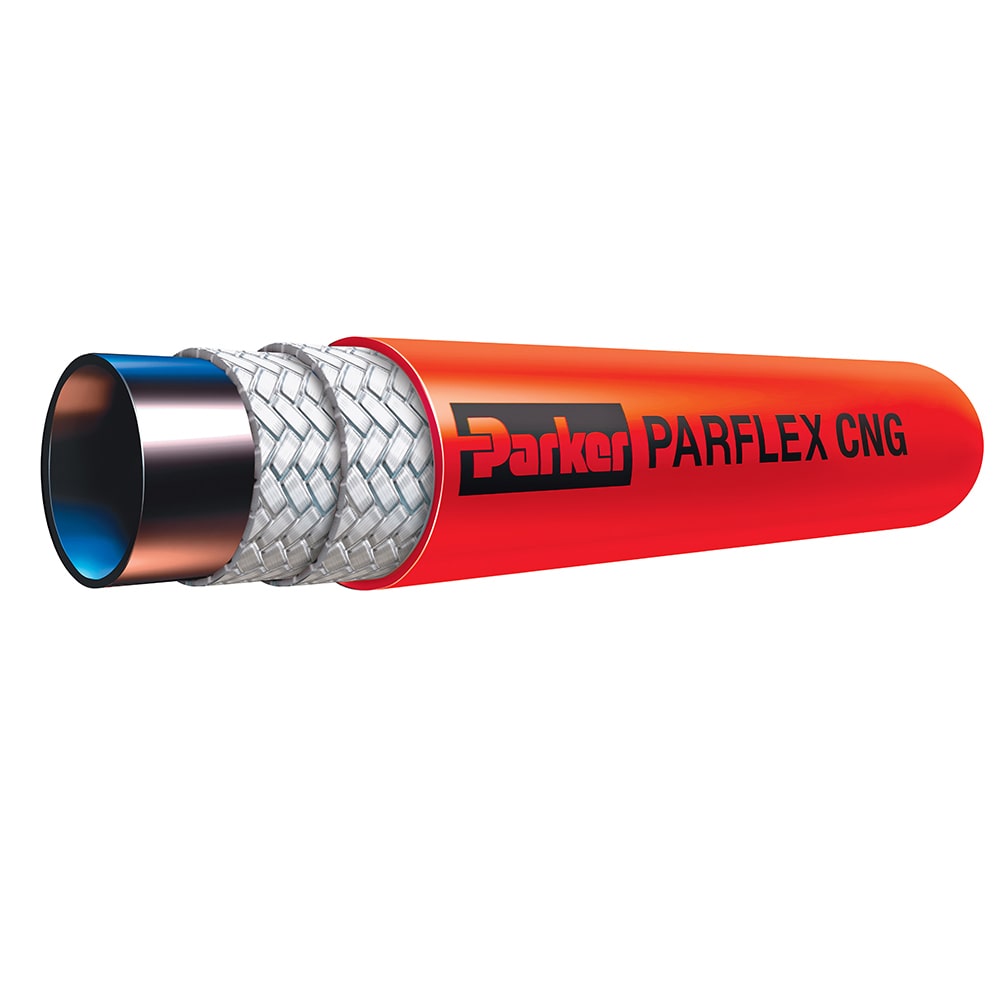

5CNG
Certification: ANSI NGV 3.1, CSA 12.3, Class B – P36 (5CNG-8 only), ANSI NGV 4.2, CSA 12.52, Class A, Class D, CSA, ECE R110, NFPA 52.0
Description
Parflex global presence in the CNG market for natural gas vehicles and fueling stations allow OEM revenue growth by selling into multiple geographies given the CSA (NA) and ECR (EMEA) approvals on CNG Hose.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Design Factor: | 4 |
| Hose Inner Tube Material: | Polyamide (PA), Conductive |
| Specifications Met: | ANSI NGV 3.1, CSA 12.3, Class B – P36 (5CNG-8 only), ANSI NGV 4.2, CSA 12.52, Class A, Class D, CSA, ECE R110, NFPA 52.0 |
| Compatible Fitting: | CG Series |
| Weight: | 0.11 to 0.53 kg/m, 0.08 to 0.36 lb/ft |
| Maximum Operating Pressure: | 34.5 MPa, 345 bar, 5000 psi |
| Maximum Operating Temperature: | 185 °F, 85 °C |
| Inside Diameter: | 1/4 to 1 inch, 6 to 25 mm |
| Application: | Natural Gas Transfer |
| Cover Material: | Polyurethane |
| Hose Reinforcement Material: | Aramid Fiber |
| Minimum Bend Radius: | 2 to 10 inch, 51 to 254 mm |
| Outside Diameter: | 0.550 inch, 0.650 inch, 0.900 inch, 1.190 inch, 1.590 inch, 14 to 40.4 mm |
Additional information
| Part Number | 5CNG-4, 5CNG-6, 5CNG-8, 5CNG-12, 5CNG-16 |
|---|
