7391
Certification: UL UL94-V-O flame resistance
Description

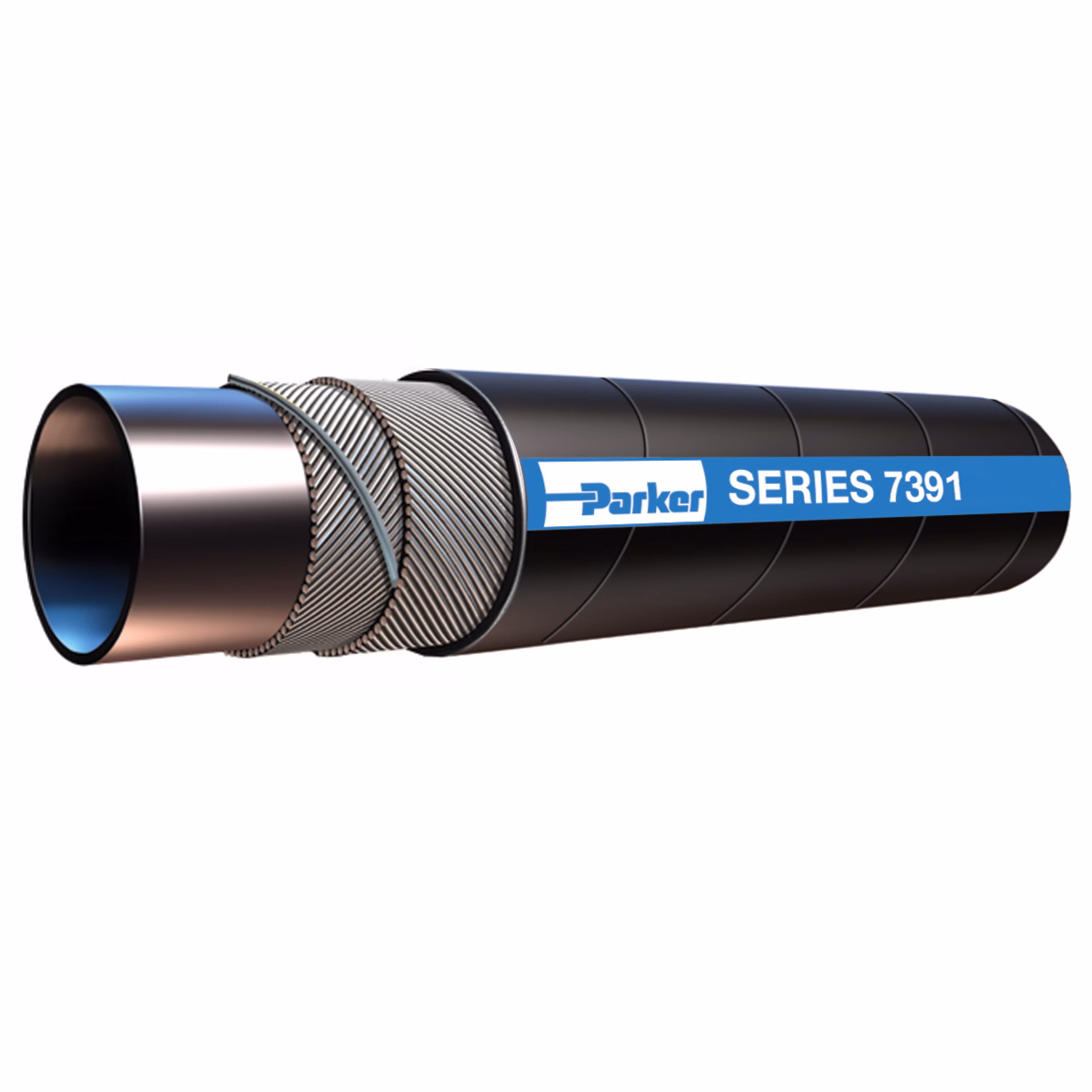

7391 EPDM-P Suction & Discharge Hose delivers high-flow, fire-safe coolant transfer for data centers, CDUs, and facility applications. For DI water and water/glycol solution applications to 212°F and 150 psi
Technical Specifications
| Hose Inner Tube Material: | Peroxide Cured EPDM |
| Cover Material: | Synthetic rubber smooth wrapped finish |
| Cover Color: | Black blue layline |
| Minimum Bend Radius: | 7 to 22 inch, 178 to 559 mm |
| Inside Diameter: | 2 to 4 inch, 50.8 to 101.6 mm |
| Outside Diameter: | 2.56 to 4.65 inch, 65 to 118.1 mm |
| Weight: | 1.63 to 3.89 kg/m, 1.09 to 2.61 lb/ft |
| Vacuum Pressure Rating: | 28 inch-Hg, 94.8 kPa, Full |
| Maximum Operating Pressure: | 150 psi, 10.3 bar, 1.03 MPa |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Application: | DI water and glycol based coolant solutions |
| Specifications Met: | UL UL94-V-O flame resistance |
| Cover Structure: | Smooth wrapped cover |
| Hose Reinforcement Material: | Multiple textile plies with wire helix |
| Media: | Water, Coolants |
| Compatible Fitting: | EZ Series |
| Package Type: | Coils |
| Design Factor: | 4:1 |
Additional information
| Part Number | 7391-2000100, 7391-3000100, 7391-4000100 |
|---|
