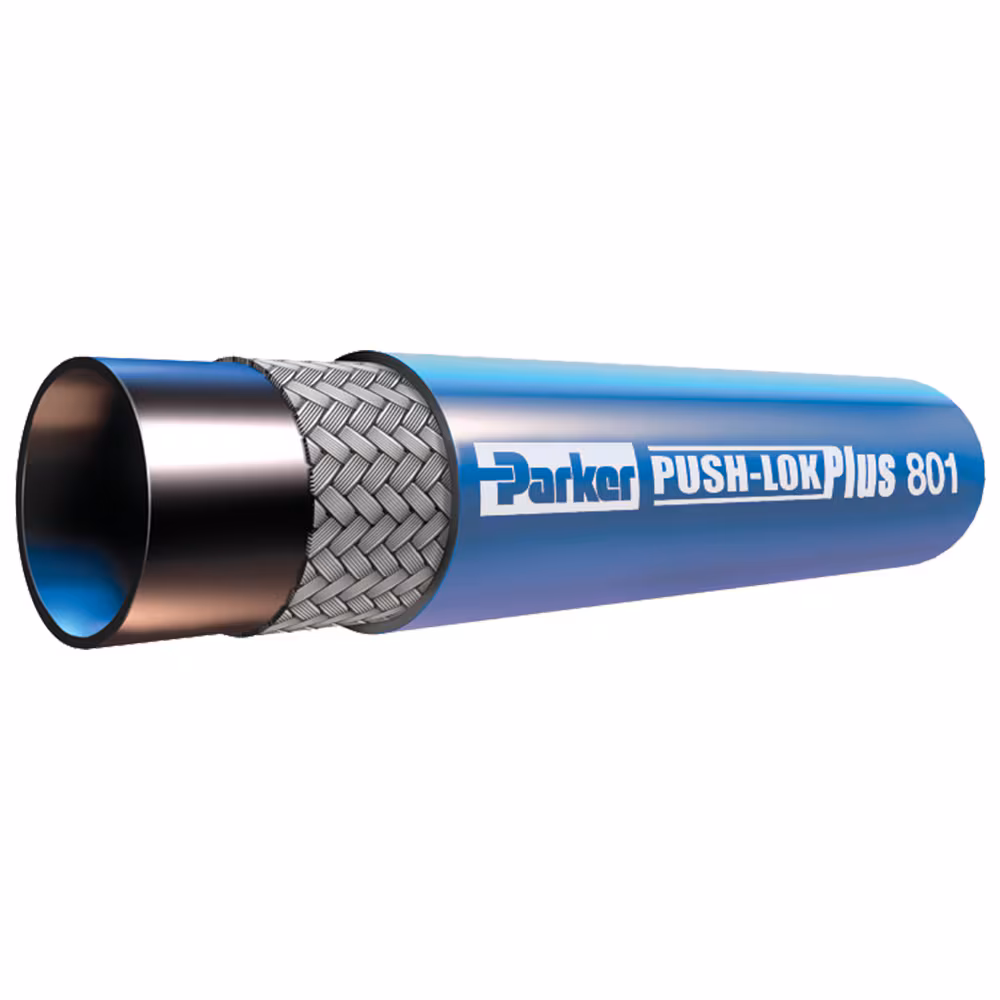

801PLUS
Parker Specifications
Description
Parker’s Push-Lok 801PLUS is a very flexible all-rounder with Nitrile (NBR) inner tube and a working pressure of up to 2.4 MPa, available in six different colors and compatible with Push-Lok fittings in series 82 in steel, stainless steel and brass.
Technical Specifications
| Weight: | 0.13 to 0.55 kg/m, 0.09 to 0.37 lb/ft |
| Industry: | General Industrial, Marine, Transportation |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °F |
| Maximum Operating Pressure: | 1.4 to 2.4 MPa, 14 to 24 bar, 200 to 350 psi |
| Product Type: | Push-Lok and Push-on Hoses, Push-Lok and Push-on Hoses (Push-Lok Plus) |
| Technology: | Fluid & Gas Handling |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 2.559 to 9.843 inch, 65 to 250 mm |
| Materials of Construction: | Rubber |
| Cover Color: | Black, Blue, Gray, Green, Red, Yellow |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | 82 Series |
| Inside Diameter: | 1/4 to 1 inch, 6.4 to 25.4 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | Low Pressure Hydraulics, Paper & Pulp for water/air applications |
| Hose Reinforcement Material: | Braid of High Tensile Fiber |
| Vacuum Pressure Rating: | 0.51 to 0.95 bar, 15.06 to 28.05 inch-Hg, 382.53 to 712.56 mm-Hg |
| Outside Diameter: | 0.476 to 1.299 inch, 12.1 to 33.0 mm |
| Media: | Air (General Industrial Air), Coolants (Water-Glycol), Petroleum Hydraulic Fluids |
Additional information
| Part Number | 801PLUS-4-XXX-RL, 801PLUS-6-XXX-RL, 801PLUS-8-XXX-RL, 801PLUS-10-XXX-RL, 801PLUS-12-XXX-RL, 801PLUS-16-XXX-RL |
|---|
