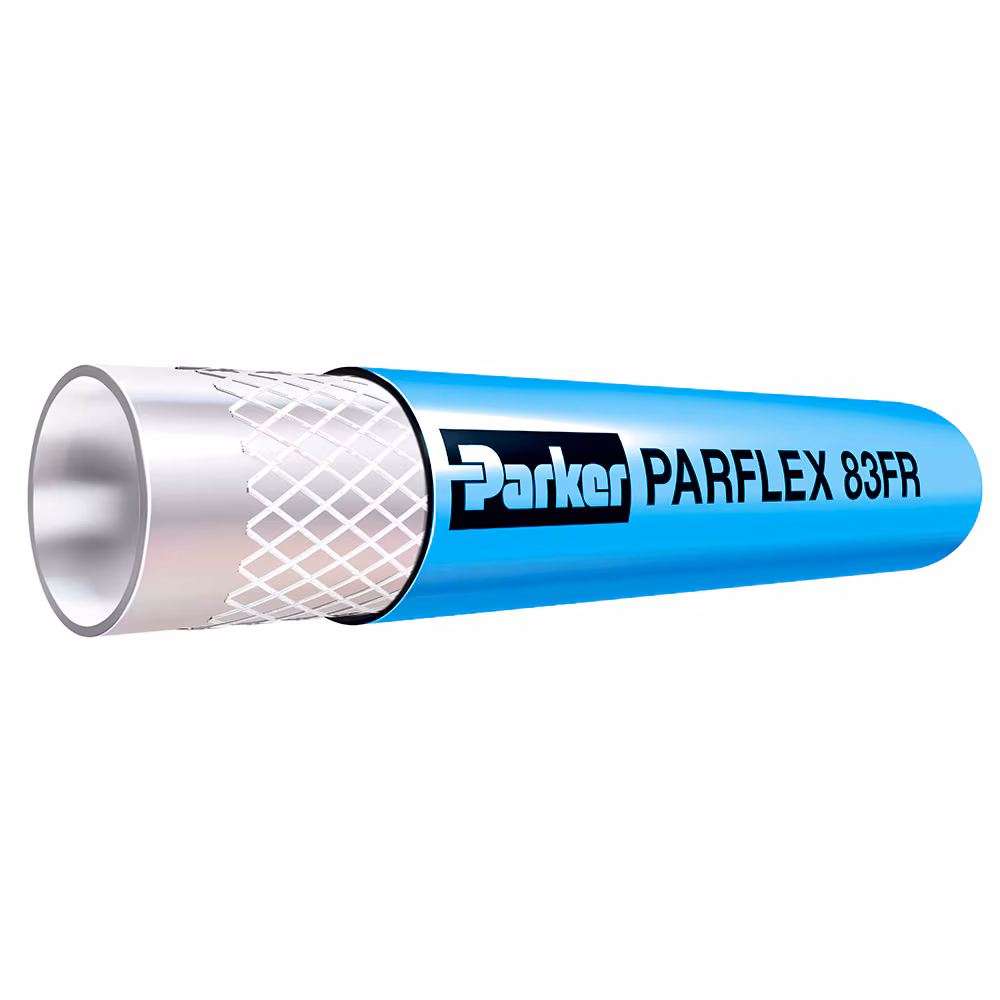

83FR
Certification: MSHA, SAE J517 (non-conductivity), UL 94 (HB)
Description
Flame Resistant 83FR Polyurethane Hose is Parker’s most durable, multipurpose flame retardant hose for air and water. It is MSHA accepted and often used in robotic welding applications.
Technical Specifications
| Design Factor: | 4 |
| Cover Color: | Black, Blue, Brown, Gray, Green, Red |
| Media: | Air, Water |
| Maximum Operating Pressure: | 300 psi, 2.1 MPa, 21 bar |
| Maximum Operating Temperature: | 200 °F, 93 °C |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Specifications Met: | MSHA, SAE J517 (non-conductivity), UL 94 (HB) |
| Compatible Fitting: | 56 Series, 82 Series |
| Weight: | 0.04 to 0.19 lb/ft, 0.06 to 0.28 kg/m |
| Inside Diameter: | 3/16 to 3/4 inch, 5 to 19 mm |
| Application: | Pneumatics, Robotics |
| Hose Inner Tube Material: | Specially Formulated Polyurethane |
| Cover Material: | Polyurethane |
| Hose Reinforcement Material: | Fiber |
| Vacuum Pressure Rating: | n/a |
| Minimum Bend Radius: | 1 to 3-1/2 inch, 25 to 89 mm |
| Outside Diameter: | 0.39 to 1.04 inch Nominal, 9.8 to 26.4 mm |
Additional information
| Part Number | 83FR-3, 83FR-4, 83FR-6, 83FR-8, 83FR-10, 83FR-12 |
|---|
