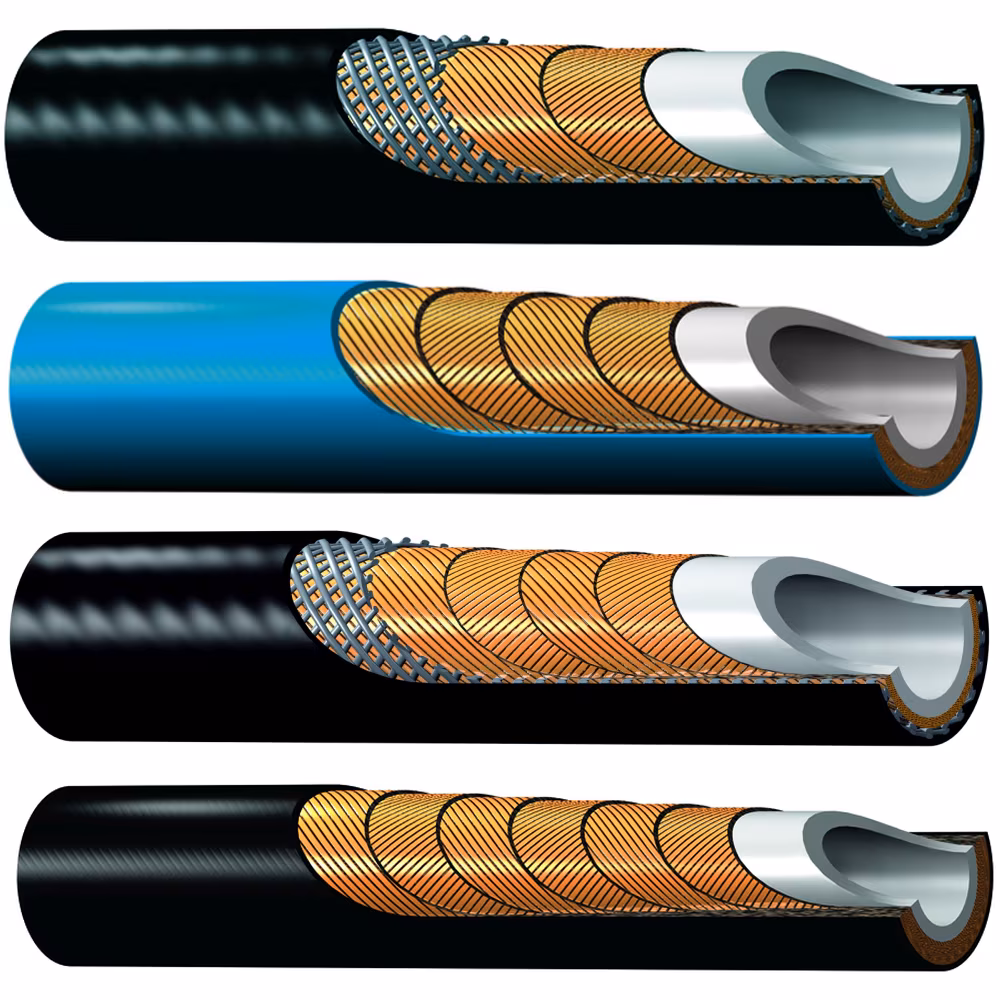

High Temperature Hose
Certification: DIN 1829-2
Description
Parker High Temperature Hoses are developed for High Pressure cleaning applications, at working temperatures up to 100 °C (212 °F), combining excellent handling and long service life with superior safety standards. Working pressures up to 125 MPa.
Technical Specifications
| Weight: | 0.30 to 1.45 lb/ft, 0.44 to 2.16 kg/m |
| Industry: | General Industrial, Marine |
| Hose Inner Tube Material: | Polyamide (PA) |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Maximum Operating Pressure: | 10150 to 18125 psi, 700 to 1250 bar, 70.0 to 125.0 MPa |
| Application: | Industrial Cleaning, Marine Cleaning |
| Product Type: | High Pressure Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyurethane |
| Design Factor: | 2.5:1 |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 120 to 350 mm, 4.724 to 13.780 inch |
| Materials of Construction: | Thermoplastic |
| Cover Color: | Black, Blue |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | 8X Series |
| Inside Diameter: | 3/8 to 3/4 inch, 9.8 to 19.8 mm |
| Hose Reinforcement Material: | High Strength Wire |
| Outside Diameter: | 0.705 to 1.307 inch, 17.90 to 33.20 mm |
Additional information
| Part Number | 2380N-06V50-HT, 2440N-06V60-HT, 2640N-12V62-HT |
|---|
