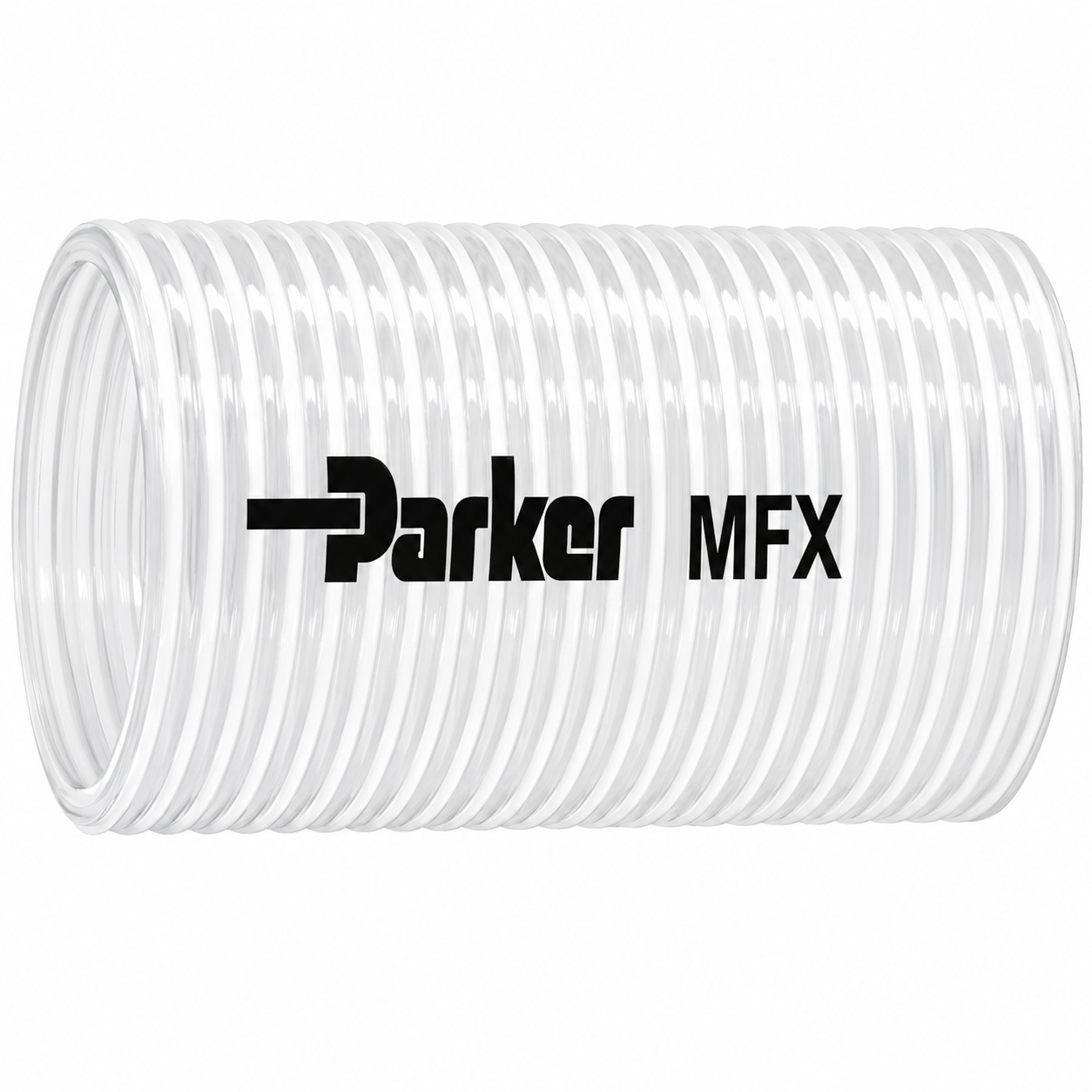

MFX
AS/NZS 2070.0
Description
For non-toxic applications. Suitable for use as a milk tanker suction and delivery hose. Conforms to AS/NZS 2070 standards. Food contact clear with white helix.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Maximum Operating Pressure: | 145 psi |
| Length: | 20 m |
| Nominal Hose Inside Diameter: | 25 to 75 mm |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Vacuum Pressure Rating: | 20.2 inch-Hg, 515 mm-Hg, 515 to 520 mm-Hg |
| Cover Material: | PVC |
| Cover Color: | White |
| Media: | Food & Beverage |
| Specifications Met: | AS/NZS 2070.0 |
| Weight: | 0.45 to 1.52 kg/m |
| Inside Diameter: | 1 to 3 inch, 25.5 to 76.2 mm |
| Application: | Food Manufacturing, Milk Tankers |
| Design Factor: | 2:1 |
| Minimum Bend Radius: | 2.9 to 13.7 inch, 75 to 350 mm, 75 to 350 inch |
| Outside Diameter: | 31.9 to 86.6 mm |
| Size: | -16 to -48 |
Additional information
| Part Number | MFX-032-020, MFX-050-020, MFX-063-020 |
|---|
