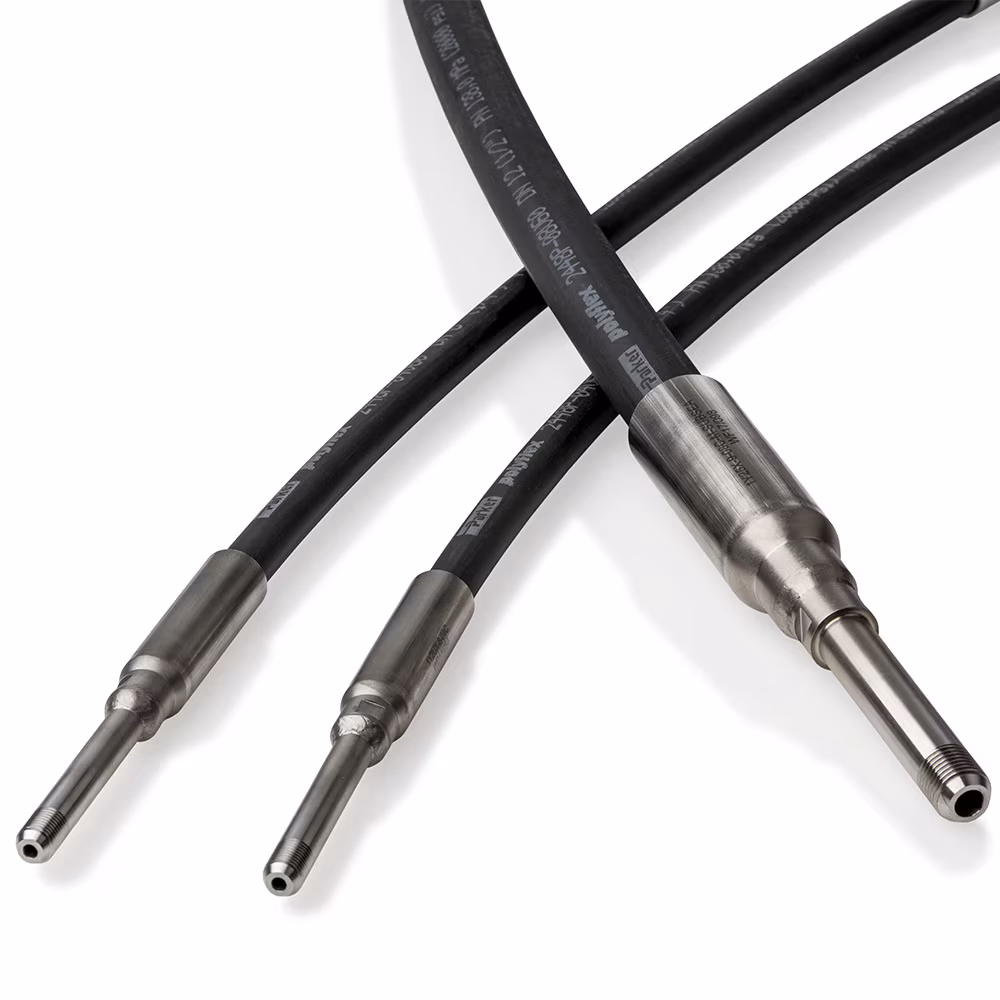

Nautilus20
Certification: API 17E, ISO 13628-5
Description
Overcoming the constraints of 15,000 psi hoses. Experience the world of the 20,000 psi Polyflex hose series, with the Nautilus20
Technical Specifications
| Industry: | Marine, Oil & Gas |
| Hose Inner Tube Material: | High Performance Thermoplastics |
| Brand: | Parker |
| Maximum Operating Temperature: | 125 °C, 257 °F |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Pressure: | 138 MPa, 1380 bar, 20000 psi |
| Product Type: | High Pressure Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide 12 |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Materials of Construction: | Thermoplastic |
| Product Style: | Umbilical Hose |
| Media: | Chemicals (Methanol) – Check your fluid compatibility with our catalogue chart., Coolants (Glycol), Petroleum Hydraulic Fluids |
| Specifications Met: | API 17E, ISO 13628-5 |
| Compatible Fitting: | UX Series, 5X-SUBSEA Series |
| Weight: | 0.33 to 1.15 kg/m, 0.22 to 0.77 lb/ft |
| Inside Diameter: | 1/4 to 1/2 inch, 6.4 to 12.9 mm |
| Application: | Subsea BOP |
| Hose Reinforcement Material: | 4 Layers of High Tensile Steel Wire |
| Minimum Bend Radius: | 5.906 to 11.811 inch, 150 to 300 mm |
| Outside Diameter: | 0.511 to 0.913 inch, 13.0 to 23.2 mm |
Additional information
| Part Number | 2448P-04V30, 2448P-08V30 |
|---|
