NTP
Certification: AS/NZS 2070.0
Description

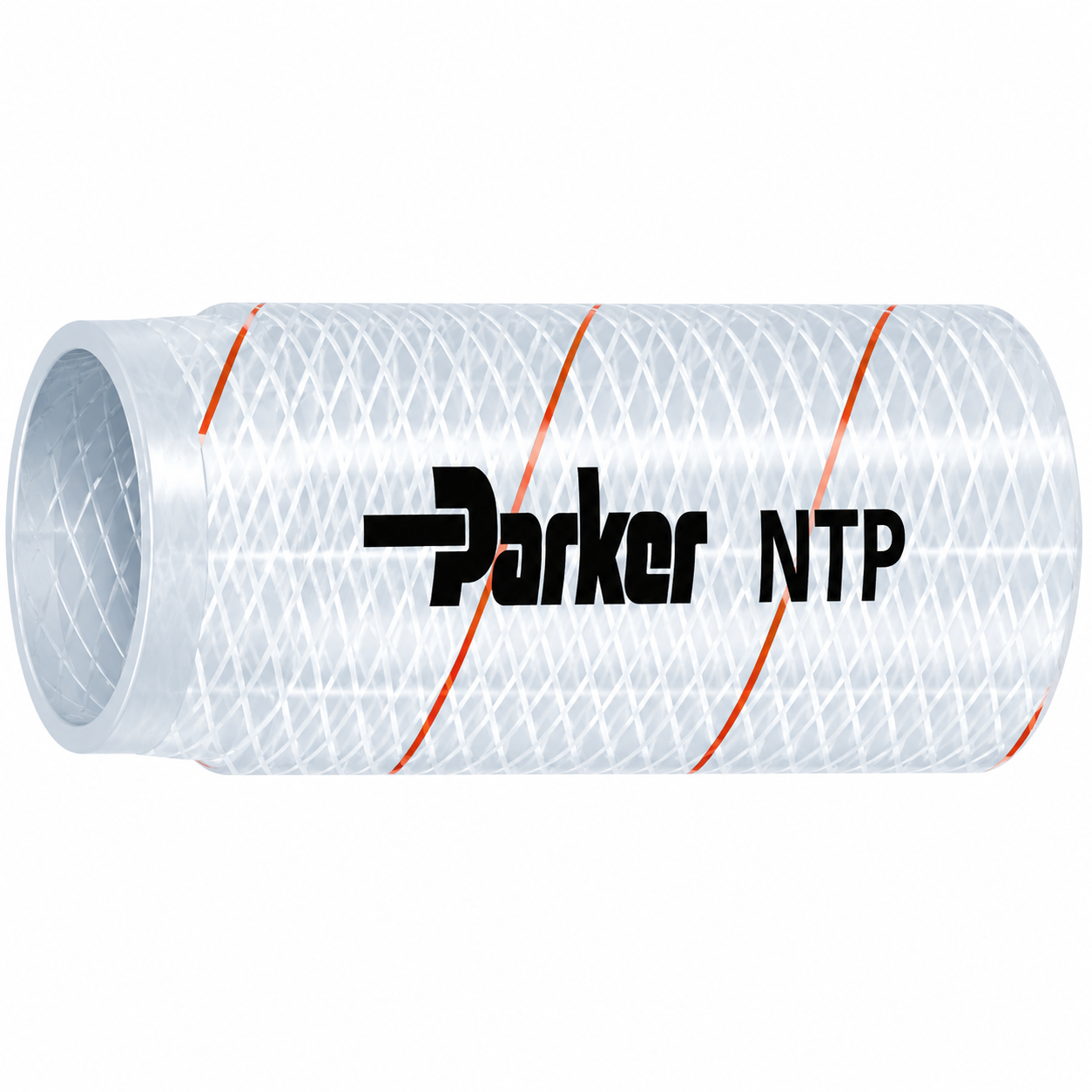

Translucent dual purpose food contact/petrol hose with a distinctive red/gold tracer to identify its dual application. Conforms to AS/NZS 2070 for food contact requirements. Safety factor 4:1.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Cover Material: | PVC |
| Cover Color: | White with Red stripe |
| Media: | Food & Beverage |
| Specifications Met: | AS/NZS 2070.0 |
| Weight: | 0.11 to 1.36 kg/m |
| Inside Diameter: | 1/4 to 2 inch, 6 to 50.4 mm |
| Maximum Operating Pressure: | 10 to 17.2 bar, 1 to 1.72 MPa, 145 to 250 psi, 250 to 145 psi |
| Application: | Beverage, Food, Petrol Transfer |
| Hose Reinforcement Material: | Fiber |
| Nominal Hose Inside Diameter: | DN6 to 50 |
| Minimum Bend Radius: | 2.5 to 12.6 inch, 65 to 320 mm, 65 to 320 inch |
| Outside Diameter: | 12 to 63 mm |
| Size: | -6 to -32 |
Additional information
| Part Number | NTP-006-020, NTP-006-100, NTP-006-300, NTP-008-020, NTP-008-100 |
|---|
