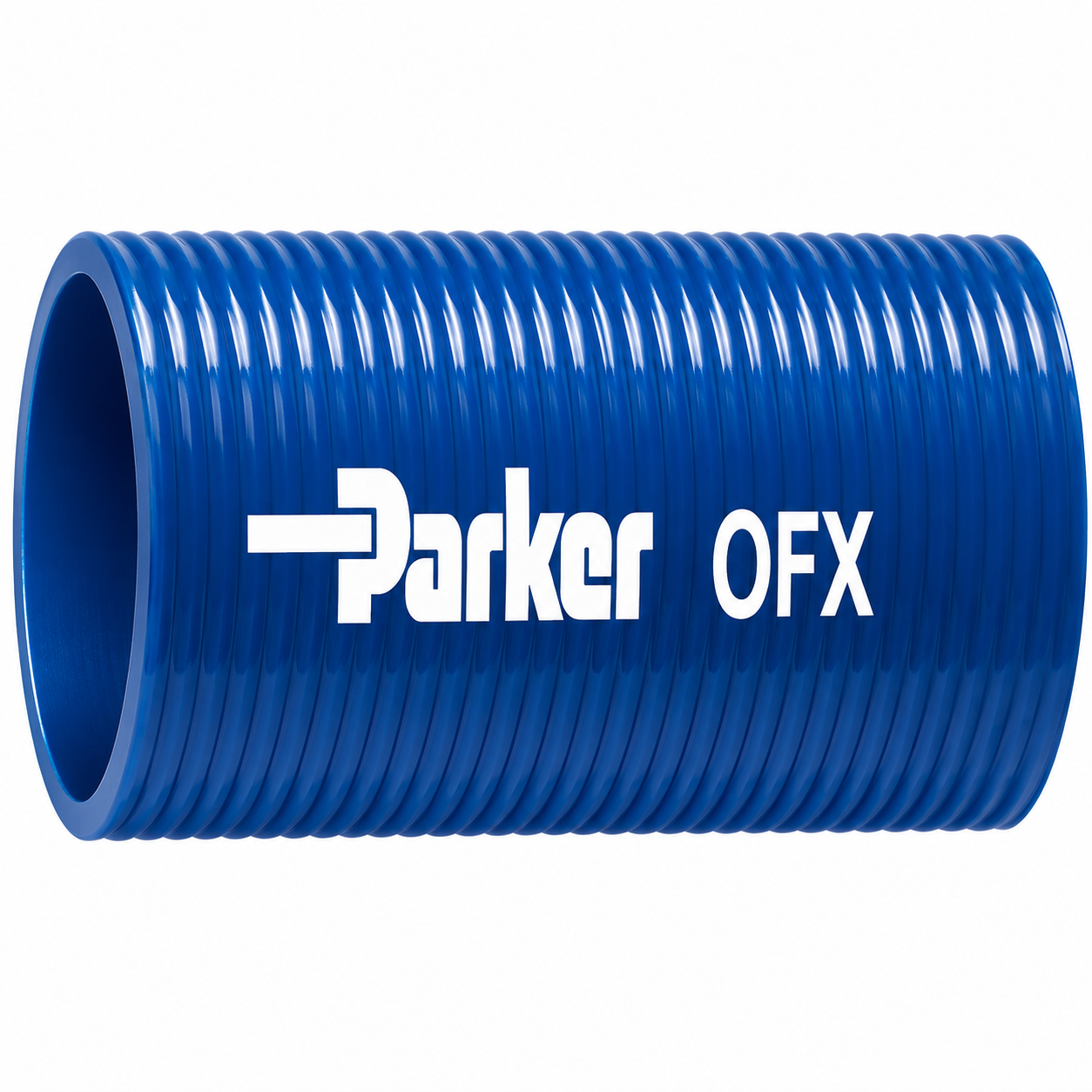

OFX
N/A
Description
For conveying petroleum products and derivatives, lubricating oils and various chemicals and sullage. Heavy duty oil suction blue. Made with Thermoplastic rubber for improved flexibility and durability.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Cover Material: | PVC |
| Length: | 20 m |
| Nominal Hose Inside Diameter: | 25 to 100 mm |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Vacuum Pressure Rating: | 26.5 inch-Hg, 675 mm-Hg, 675 to 681 mm-Hg |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Specifications Met: | n/a |
| Weight: | 0.54 to 2.9 kg/m |
| Inside Diameter: | 1 to 4 inch, 25.5 to 102.2 mm |
| Maximum Operating Pressure: | 5.5 to 8.9 bar, 0.55 to 0.9 MPa, 80 to 130 psi |
| Application: | Chemical Transfer, Petroleum Transfer |
| Design Factor: | 2:1 |
| Minimum Bend Radius: | 2.3 to 22 inch, 60 to 560 mm, 60 to 560 inch |
| Outside Diameter: | 33.5 to 115.2 mm |
| Size: | -16 to -64 |
Additional information
| Part Number | OFX-025-020, OFX-038-020, OFX-050-020 |
|---|
