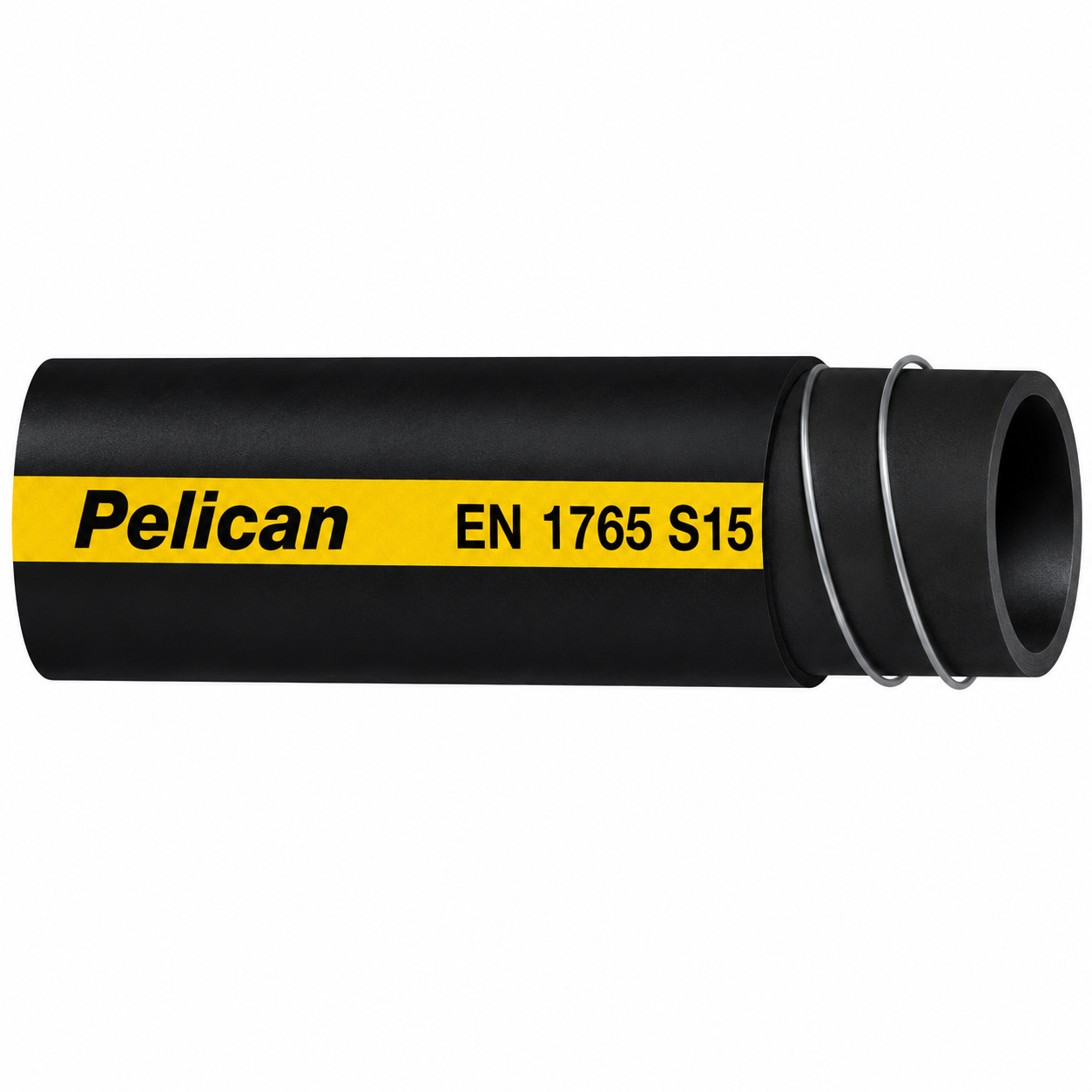

Pelican EN 1765 S15

EN 1765, Type S15

Category:

Description

Pelican is a hose according to EN 1765 S15, specially designed for bunkering operations. Pelican is tested and supplied with Parker large bore crimped fittings to enable faster service. Not to be used with LPG and CNG.

Technical Specifications

Weight: 2.01 to 22.07 lb/ft, 3.00 to 32.84 kg/m
Industry: Marine, Oil & Gas
Hose Inner Tube Material: Nitrile Butadiene Rubber (NBR)
Brand: Parker
Maximum Operating Temperature: 180 °F, 82 °C
Minimum Operating Temperature: -20 °C, -4 °F
Maximum Operating Pressure: 1.5 MPa, 15 bar, 217.5 psi
Application: Oil & Fuel
Product Type: Fuel Hose, Suction Hose, Transfer Hose
Cover Material: Nitrile Butadiene Rubber (NBR)/PVC
Design Factor: 4:1
Vacuum Pressure Rating: 0.85 bar, 25.1 inch-Hg, 637.55 mm-Hg
Materials of Construction: Rubber
Division: Polymer Hose Division Europe
Product Style: Suction and Delivery
Minimum Bend Radius: 13.779 to 53.150 inch, 350 to 1350 mm
Technology: Fluid & Gas Handling
Media: Fuels – Check fuel type with our catalogue chart.
Specifications Met: EN 1765, Type S15
Inside Diameter: 2 to 10 inch, 51 to 254 mm
Hose Reinforcement Material: Synthetic Textile Fabric
Outside Diameter: 2.795 to 11.732 inch, 71 to 298 mm

Additional information

Part Number

IH36522450/40, IH36522451/40, IH36522452/40, IH36522453/20, IH36522454/20, IH36522455/20, IH36522456/10
