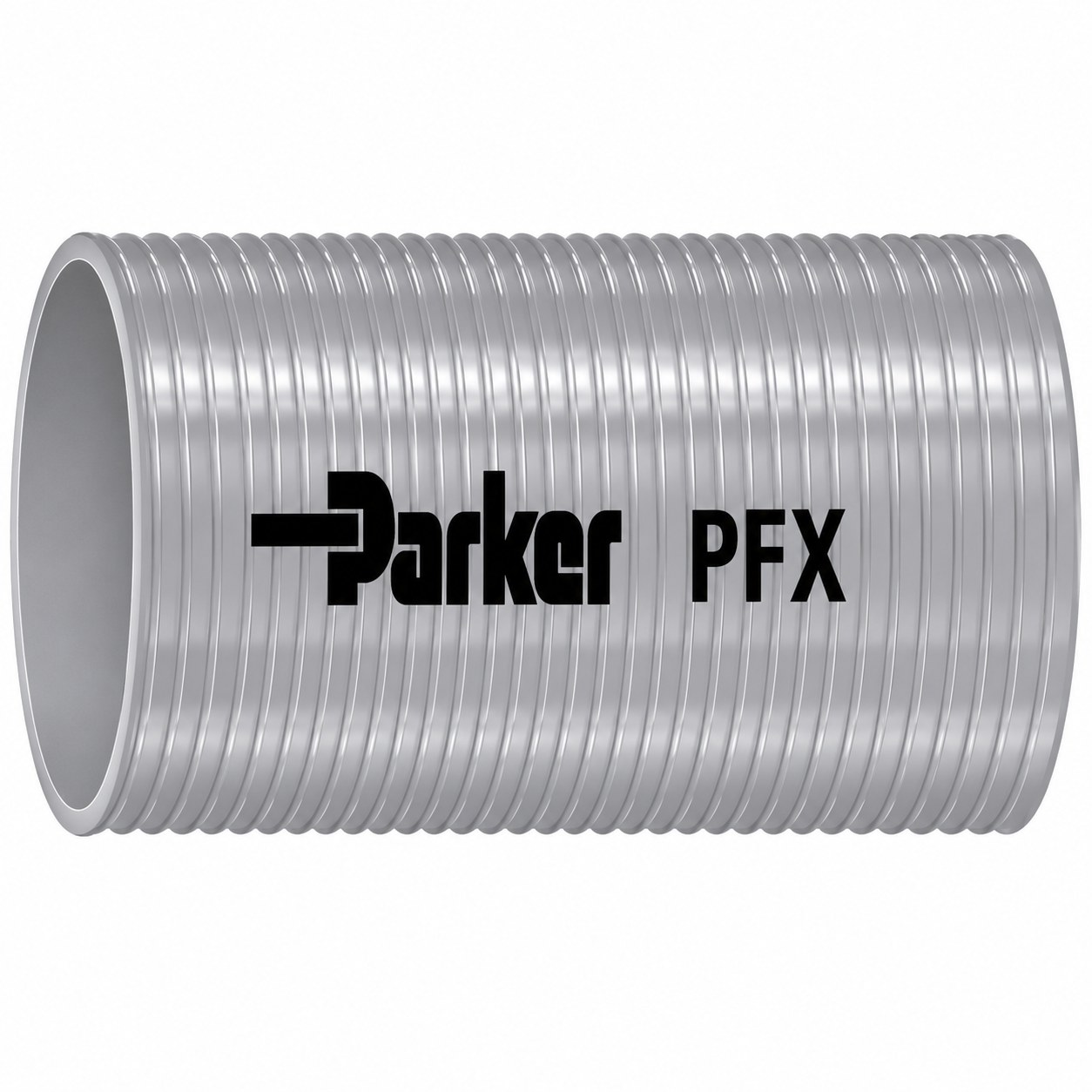

PFX
N/A
Description
For conveying water, other liquids and light granular materials. Suitable for agriculture and industrial applications.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Cover Material: | PVC |
| Cover Color: | Gray |
| Media: | Dry Abrasive Powders, Water |
| Specifications Met: | n/a |
| Weight: | 0.39 to 5.55 kg/m |
| Inside Diameter: | 1 to 6 inch, 25.5 to 153.4 mm |
| Maximum Operating Pressure: | 3.1 to 8.9 bar, 0.31 to 0.89 MPa, 45 to 130 psi |
| Application: | Suction Discharge Liquid Seeds |
| Design Factor: | n/a |
| Vacuum Pressure Rating: | 23.6 to 26.5 inch-Hg, 600 to 675 mm-Hg |
| Nominal Hose Inside Diameter: | DN1 to 6 |
| Minimum Bend Radius: | 2.9 to 43.3 inch, 75 to 1100 mm |
| Outside Diameter: | 31.9 to 169.8 mm |
| Size: | -16 to -96 |
Additional information
| Part Number | PFX-025-020, PFX-032-020, PFX-038-020, PFX-125-020 |
|---|
