PFX17 (Ultra High pressure-EU)
Certification: DIN 1829-2, ISO 23384
Description

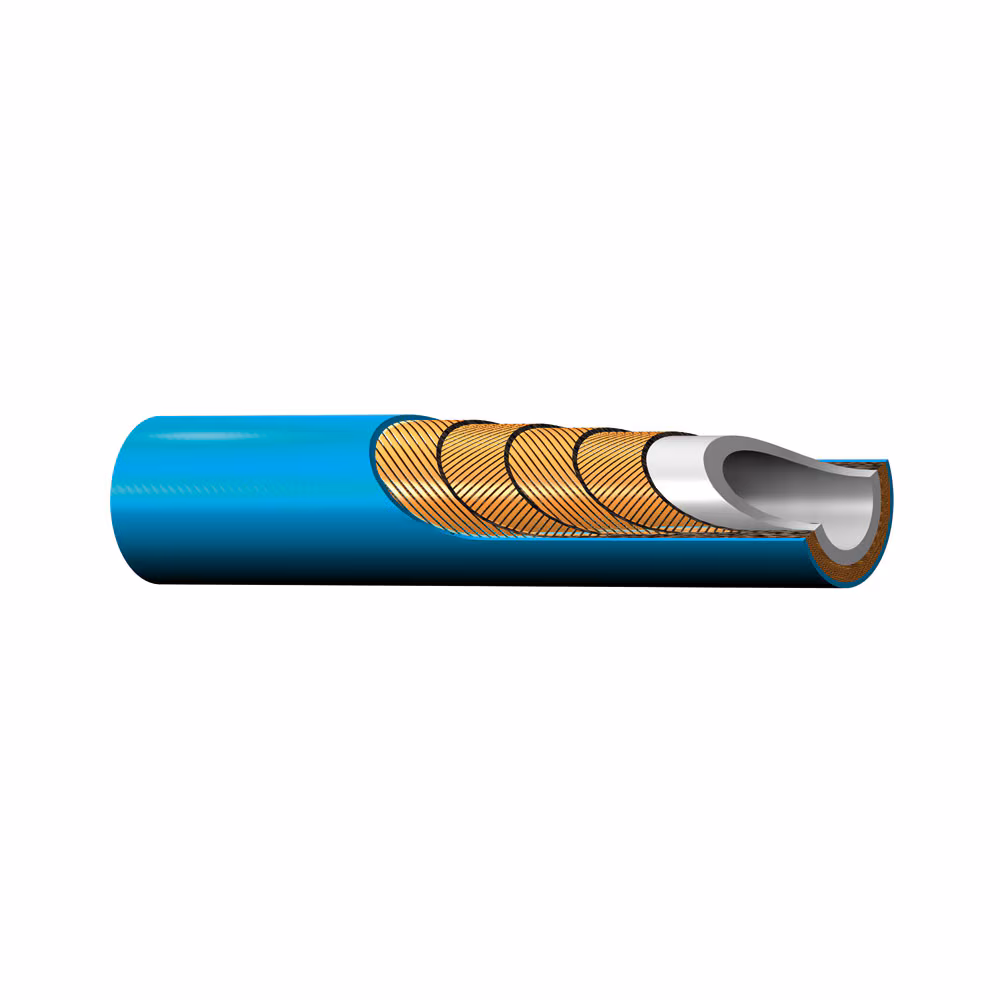

Parker’s PFX17 ultra high pressure waterblast hose delivers lightweight durability with high‑strength reinforcement, abrasion‑resistant cover and a robust design factor, plus color‑coded branding for quick identification in UHP cleaning.
Technical Specifications
| Weight: | 0.33 kg/m, 0.22 lb/ft |
| Hose Outside Diameter: | 12.6 mm, 0.496 inch |
| Industry: | Industrial Manufacturing Equipment, Construction |
| Minimum Burst Pressure: | 61625 psi, 425 MPa |
| Inside Diameter: | 6.4 mm, 1/4 inch |
| Cover Color: | Blue according WJTA Color Coding |
| Hose Inner Tube Material: | Polyoxymethylene |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Media: | Water |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Maximum Operating Pressure: | 24650 psi, 170 MPa, 1700 bar |
| Compatible Fitting: | LX, LX-PL |
| Application: | Industrial Cleaning, Waterblast Cleaning Equipment, Hydrodemolition |
| Product Type: | High Pressure Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide |
| Design Factor: | 2,5:1 |
| Hose Reinforcement Material: | Four spiral layers of maximum tensile wire inch |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 6.102 inch, 155 mm |
| Specifications Met: | DIN 1829-2, ISO 23384 |
Additional information
| Part Number | PFX17-04-PL |
|---|
