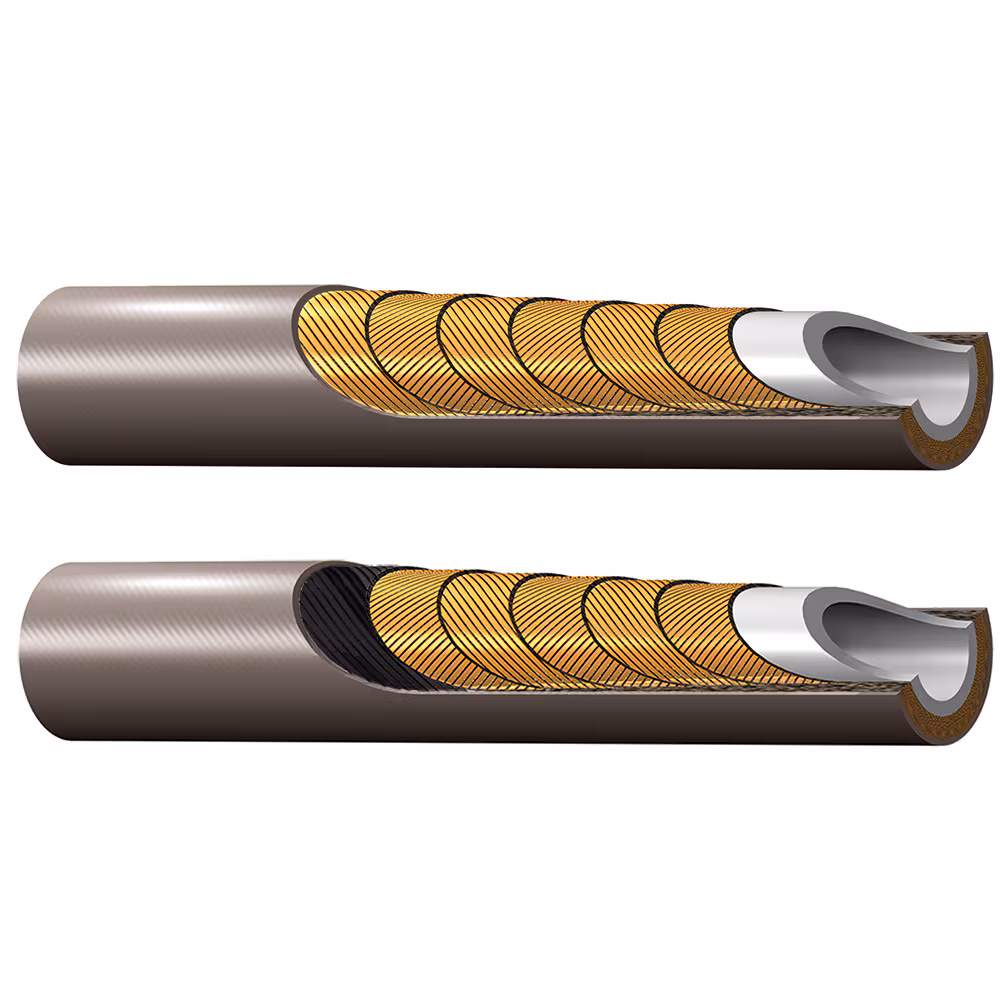

PFX21 (Ultra High pressure)
DIN 1829-2, ISO 23384
Description
Parker’s PFX21 delivers robustness and improved service life in the Ultra High Pressure waterblast applications. The series is compliant with ISO23384 and DIN EN 1829-2.
Technical Specifications
| Industry: | Industrial Manufacturing Equipment, Construction |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Brand: | Parker |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Maximum Operating Pressure: | 210 MPa, 30450 psi, 2100 bar |
| Application: | Industrial Cleaning, Hydrodemolition, Waterblasting |
| Product Type: | High Pressure Hose, Water Blast Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide (PA) |
| Design Factor: | 2.5 |
| Division: | Polymer Hose Division Europe |
| Materials of Construction: | POM, Polyamide (PA) |
| Minimum Bend Radius: | 3.937 to 11.811 inch, 100 – 300 mm |
| Specifications Met: | DIN 1829-2, ISO 23384 |
| Compatible Fitting: | 2X / LX / LX-PL Series |
| Weight: | 0.12 to 2.06 kg/m, 0.081 to 1.38 lb/ft |
| Inside Diameter: | 1/8 to 1/2 inch, 3 to 13 mm |
| Minimum Burst Pressure: | 525 MPa, 76125 psi |
| Hose Reinforcement Material: | 4 to 6 spirals of maximum tensile steel wire |
| Outside Diameter: | 0.311 to 1.224 inch, 7.9 to 31.1 mm |
Additional information
| Part Number | PFX21-08, PFX21-02, PFX21-03, PFX21-03-PL |
|---|
