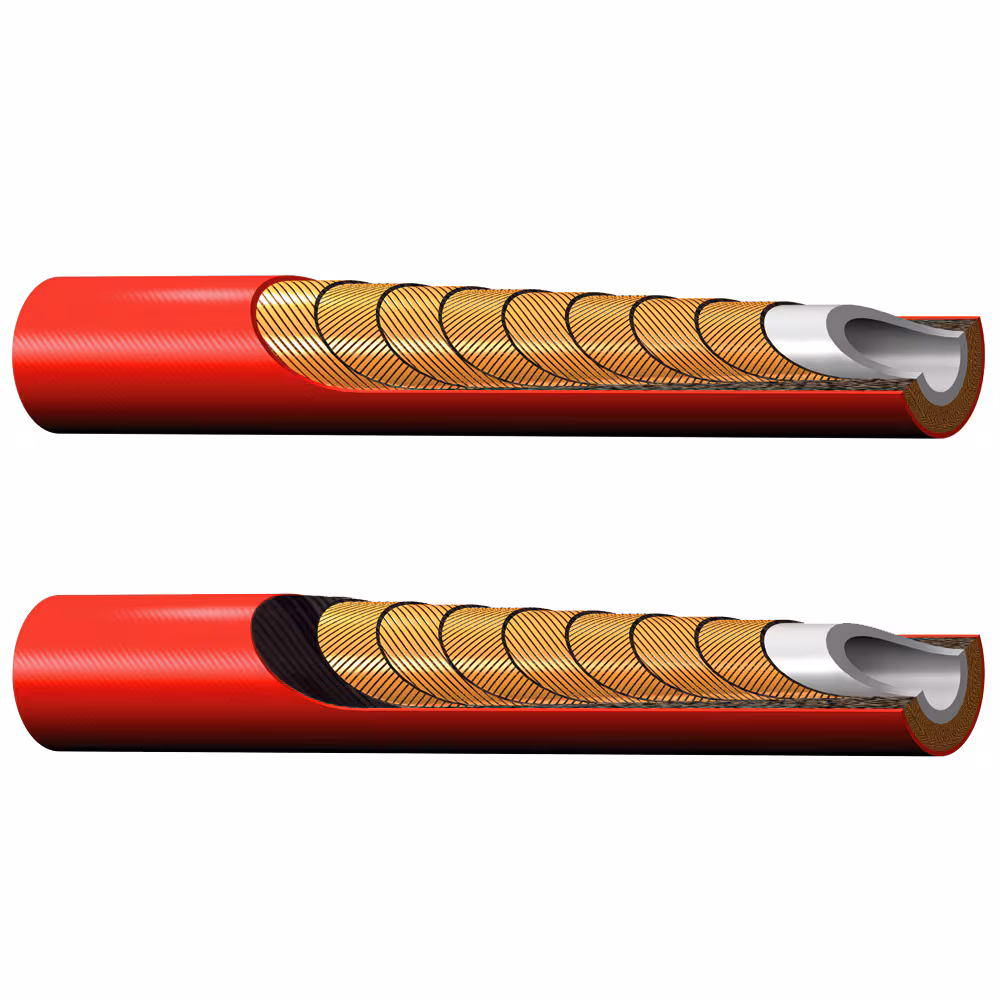

PFX40 (Ultra High pressure-EU)
Certification: DIN EN1829-2, ISO 23384
Description
Parker’s PFX40 offers durability and extended service life for ultra high pressure waterblast applications. This series meets the standards of ISO23384 and DIN EN 1829-2.
Technical Specifications
| Hose Outside Diameter: | 15.1, 19.1 mm |
| Industry: | Industrial Manufacturing Equipment, Construction |
| Cover Color: | Red According WJTA Color Coding |
| Burst Pressure: | 800 MPa, 116000 psi |
| Hose Inner Tube Material: | Polyoxymethylene |
| Brand: | Parker |
| Maximum Operating Temperature: | 70 °C, 158 °F |
| Media: | Water |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Maximum Operating Pressure: | 4000 bar, 58015 psi |
| Compatible Fitting: | 2X Series |
| Application: | Industrial Cleaning, Waterblast Cleaning Equipment, Hydrodemolition |
| Product Type: | High Pressure Hose |
| Technology: | Fluid and Gas Handling |
| Cover Material: | Polyamide |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 200 mm, 7.874 inch |
| Hose Inside Diameter: | -3, 3/16 inch, 4.8 mm |
| Specifications Met: | DIN EN1829-2, ISO 23384 |
| Hose Cover Type: | Standard, Double cover ToughJACKET™ |
| Hose Reinforcement Material: | Eight spiral layers of maximum tensile steel wire |
| Weight: | 0.64 kg/m, 0.43, 0.52 lb/ft |
Additional information
| Part Number | PFX40-03, PFX40-03-TJ |
|---|
