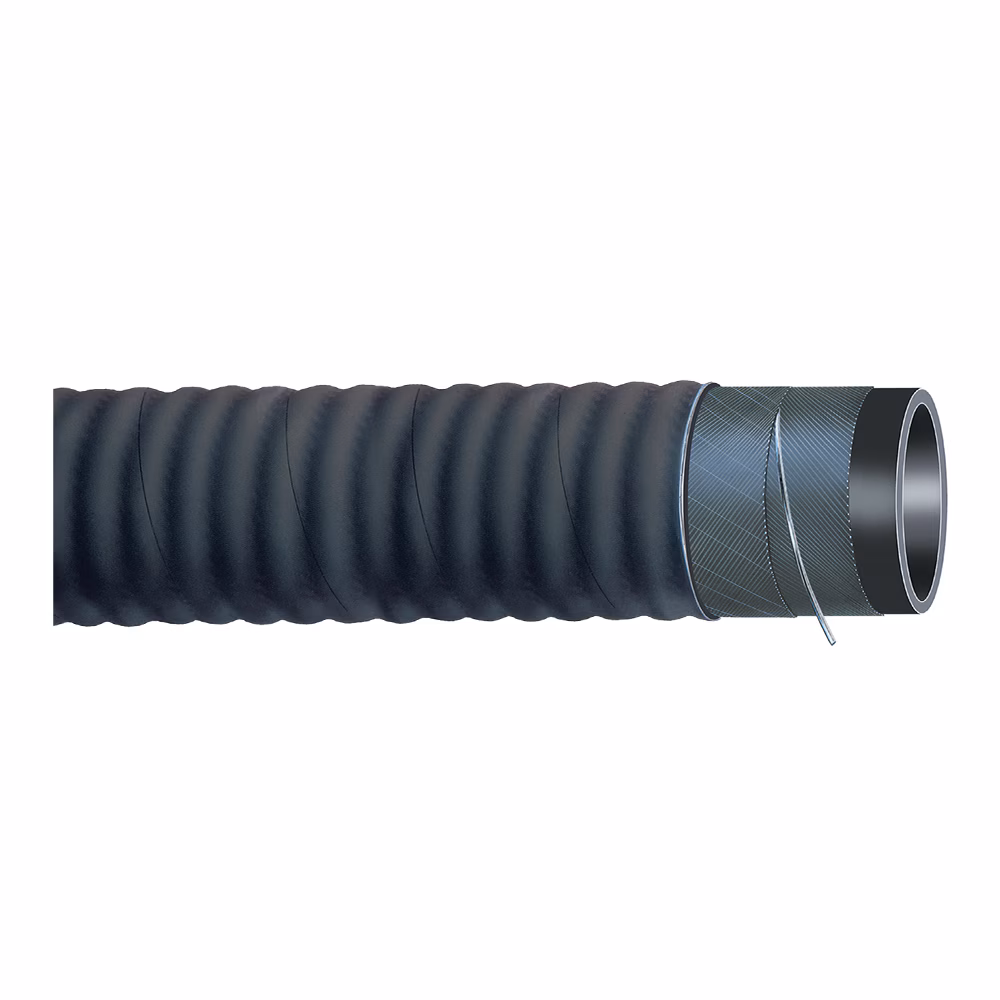

Poliax UPE con SM OND EN 12115
EN 12115.0, FDA, TRbF 131 part 2 par 5.5 (flame resistance)
Description
Poliax UPE CON SM OND EN 12115 is a medium pressure and extremely flexible hose designed for suction and delivery of highly aggressive fluids thanks to its Ultra High Molecular Weigth Polyethylene film and corrugated cover.
Technical Specifications
| Application: | Acid, Chemicals |
| Weight: | 0.71 to 4.43 kg/m, 0.48 to 2.98 lb/ft |
| Industry: | Industrial Manufacturing Equipment, Industrial & Chemicals Processing, Life Sciences & Healthcare |
| Hose Inner Tube Material: | Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE) |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F, 130 °C (for short period), 266 °F (for short period) |
| Minimum Operating Temperature: | -20 °C, 5 °F |
| Maximum Operating Pressure: | 1.6 MPa, 16 bar, 232 psi |
| Product Type: | Suction Hose, Chemical Hose, Transfer Hose |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Product Style: | Suction and Delivery |
| Technology: | Fluid & Gas Handling |
| Design Factor: | 4:1 |
| Materials of Construction: | Rubber |
| Minimum Bend Radius: | 1.496 to 7.875 inch, 38 to 200 mm |
| Division: | Polymer Hose Division Europe |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | EN 12115.0, FDA, TRbF 131 part 2 par 5.5 (flame resistance) |
| Compatible Fitting: | n/a |
| Inside Diameter: | 3/4 to 3.937 inch, 19 to 100 mm |
| Length: | 20 to 40 m |
| Hose Reinforcement Material: | Synthetic Textile Fabric with Embedded Steel Wire Helix and Copper Wire |
| Vacuum Pressure Rating: | 0.8 to 0.9 bar, 23.62 to 26.58 inch-Hg, 600 to 675.06 mm-Hg |
| Operating Features: | For Aggressive Chemicals and Solvents the hose is intended to be used at room temperature. The hose can be cleaned and sterilized with usual detergents or steam. |
| Outside Diameter: | 1.220 to 4.567 inch, 31 to 116 mm |
Additional information
| Part Number | IH36811570/40, IH36811571/40, IH36811572/40, IH36811573/40, IH36811574/40, IH36811575/40, IH36811576/40 |
|---|
