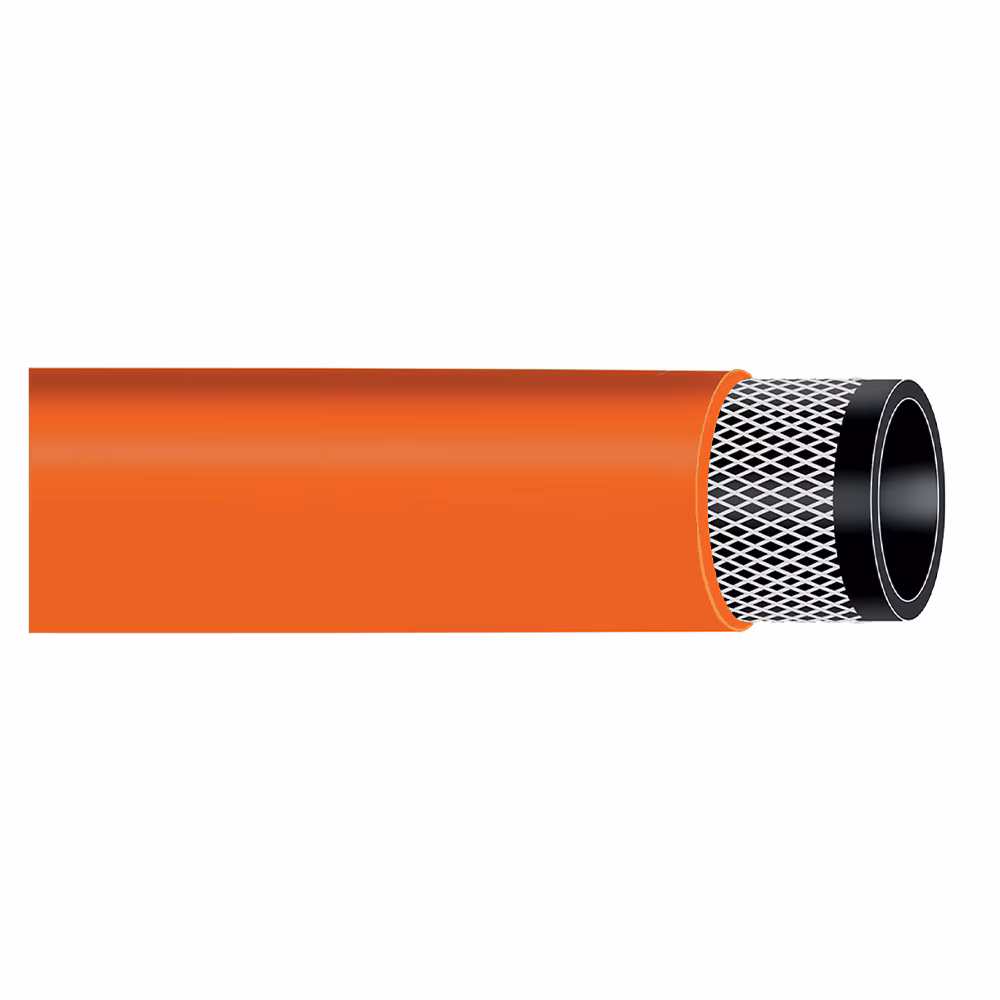

Propanpress EN ISO 3821 NA/L 20
ISO 3821, EN
Description
Propanpress EN ISO 3821 NA/L 20 is suitable for Liquefied Petroleum Gas (LPG).
Technical Specifications
| Weight: | 0.11 to 0.14 lb/ft, 0.16 to 0.22 kg/m |
| Industry: | General Industrial |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR)/Natural Rubber (NR) |
| Brand: | Parker |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | -22 °F, -30 °C |
| Maximum Operating Pressure: | 20 bar, 300 psi |
| Application: | Gas & Welding |
| Product Type: | Fuel Hose, Specialty Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 3:1 |
| Hose Reinforcement Material: | Textile |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Materials of Construction: | Rubber |
| Minimum Bend Radius: | 2 to 3.150 inch, 50 to 80 mm |
| Specifications Met: | ISO 3821, EN |
| Compatible Fitting: | n/a |
| Inside Diameter: | 1/4 to 0.394 inch, 6.3 to 10 mm |
| Outside Diameter: | 0.524 to 0.630 inch, 13.3 to 17 mm |
Additional information
| Part Number | IH30413456/100, IH30413457/100, IH30413458/100, IH30413459/100 |
|---|
