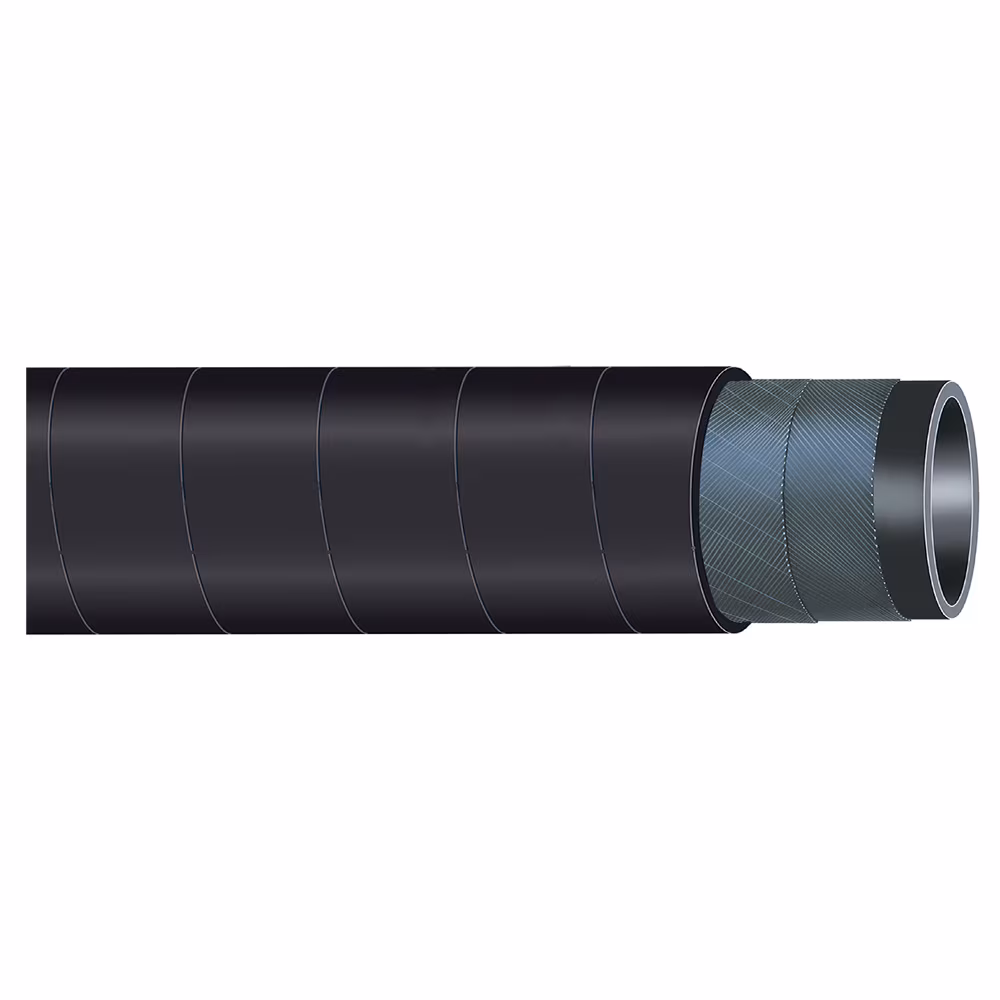

RADIOR DIN 6 (Coils)
Certification: DIN 73411.0, DIN 73411 (and Parker specifications)
Description
Radior DIN 6 is designed for cooling systems of automotive and stationary engines and for refrigerant systems in applications ranging max 6 bar WP and it is fully compliant to DIN 73411 specs up to ID 25 mm.
Technical Specifications
| Weight: | 0.11 to 0.75 lb/ft, 0.17 to 1.11 kg/m |
| Industry: | General Industrial, Transportation |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 6 bar, 90 psi |
| Application: | Automotive, Boat |
| Product Type: | Transfer Hose, Coolant Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 3:1 |
| Product Style: | Delivery |
| Materials of Construction: | Rubber |
| Specifications Met: | DIN 73411.0, DIN 73411 (and Parker specifications) |
| Inside Diameter: | 0.394 to 2 inch, 10 to 50 mm |
| Maximum Operating Temperature: | 125 °C with peaks up to 140°C., 257 °F with peaks up to 284°F. |
| Hose Reinforcement Material: | Synthetic Textile Fabric/Yarn |
| Minimum Bend Radius: | n/a |
| Outside Diameter: | 0.669 to 2.362 inch, 17 to 60 mm |
| Media: | Water (Hot Water) |
Additional information
| Part Number | IH30836101/40, IH30836103/40, IH30836104/40, IH30836105/40, IH30836106/40, IH30836107/40, IH30836108/40, IH30836109/40 |
|---|
