SB25KPM
Parker Specifications
Description

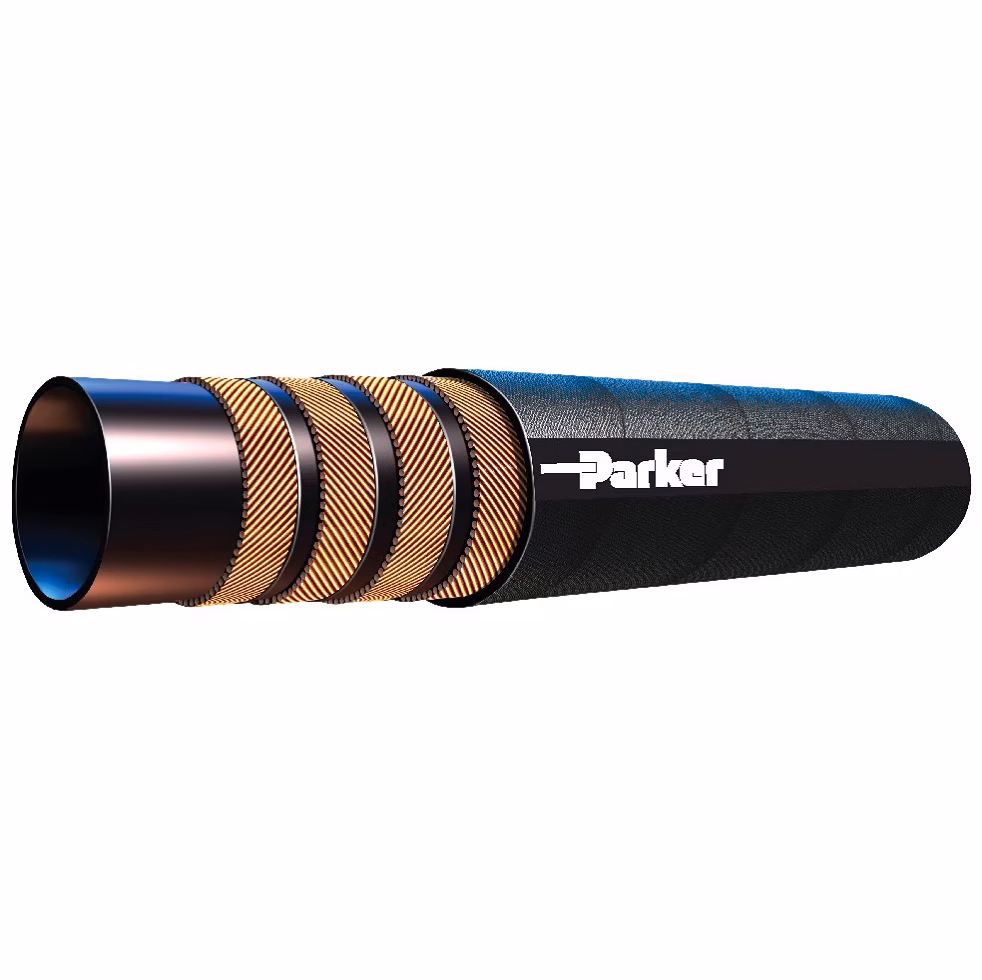

Spirablast 25K hose is a propreitory design to meet the industry requirement also made for constant pressure applications, with abrasion & ozone resistant cover.
Technical Specifications
| Maximum Operating Pressure: | 69 MPa, 690 bar, 10000 psi |
| Maximum Operating Temperature: | 80 °C, 176 °F |
| Minimum Operating Temperature: | 0 °C, 32 °F |
| Media: | Water |
| Specifications Met: | Parker Specifications |
| Weight: | 0.73 to 2.1 kg/m, 0.49 to 1.42 lb/ft |
| Inside Diameter: | 3/8 to 1 inch, 9.5 to 25.4 mm |
| Application: | Waterblasting |
| Minimum Bend Radius: | 7.1 to 13.4 inch, 180 to 340 mm |
| Outside Diameter: | 0.83 to 1.51 inch, 21.2 to 38.3 mm |
| Size: | -6 to -16 |
Additional information
| Part Number | SB25KPM-6PM, SB25KPM-8PM, SB25KPM-12PM, SB25KPM-16PM |
|---|
