SCW/SCB
FDA (Core Tube), USP Class VI (compliant core tube)
Description

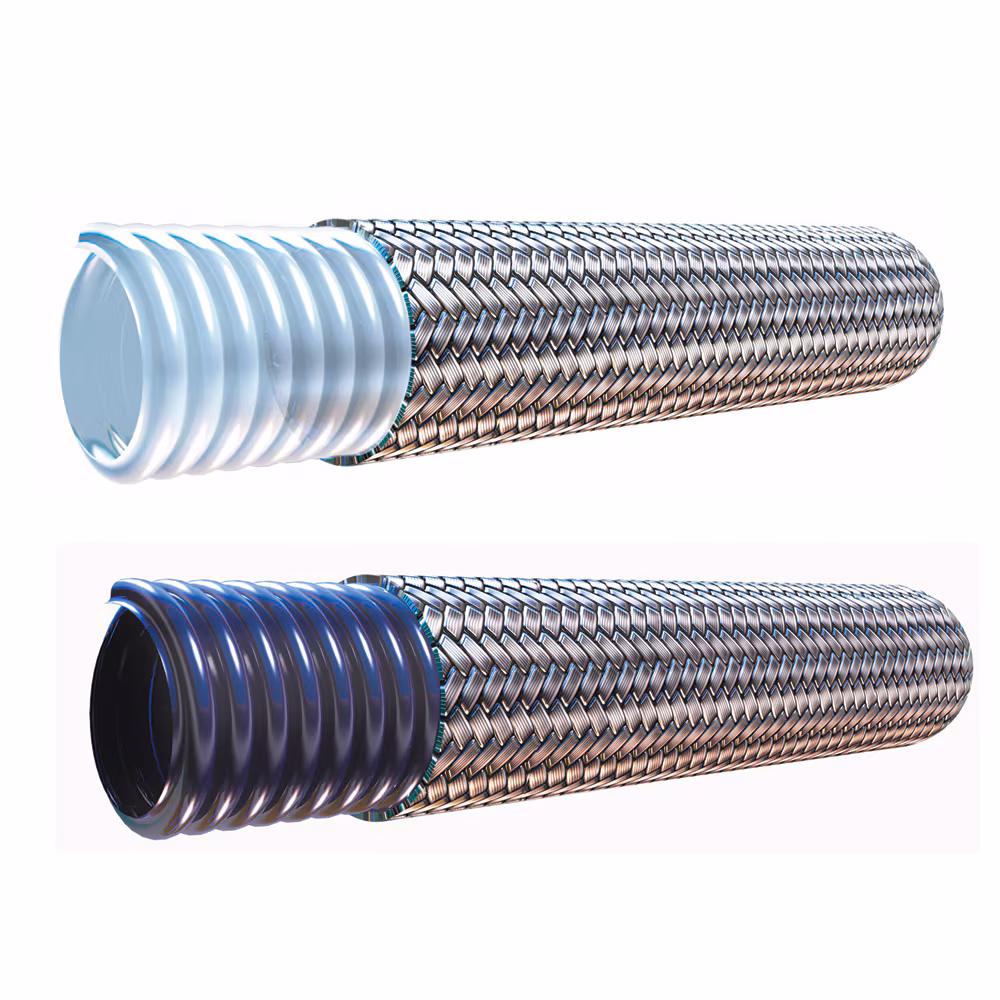

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
Technical Specifications
| Design Factor: | 4 |
| Cover Color: | n/a |
| Media: | Air, Chemicals – Check your fluid compatibility with our catalogue chart., Dry Abrasive Powders, Industrial Fluids, Water, Welding Gases (Technical Gases) |
| Specifications Met: | FDA (Core Tube), USP Class VI (compliant core tube) |
| Compatible Fitting: | PAGE Series |
| Weight: | 0.11 to 1.40 kg/m, 0.08 to 0.90 lb/ft |
| Maximum Operating Temperature: | 500 °F, 260 °C |
| Minimum Operating Temperature: | -100 °F, -73 °C |
| Inside Diameter: | 1/4 to 2 inch, 6 to 51 mm |
| Maximum Operating Pressure: | 31 to 103 bar, 3.1 to 10.3 MPa, 450 to 1500 psi |
| Application: | Chemical Transfer, Fluid Handling, Industrial, Instrumentation, Manufacturing, Semiconductor |
| Hose Reinforcement Material: | Braid of 304 Stainless Steel |
| Hose Inner Tube Material: | Polytetrafluoroethylene (PTFE) |
| Cover Material: | n/a |
| Vacuum Pressure Rating: | 28 inch-Hg, 711.2 mm-Hg |
| Minimum Bend Radius: | 2 to 16 inch, 51 to 406 mm |
| Outside Diameter: | 0.460 to 2.450 inch, 6.4 to 50.8 mm |
| Size: | -4 to -32 |
Additional information
| Part Number | 04-SCW, 06-SCW, 08-SCW, 12-SCW, 16-SCW, 20-SCW, 24-SCW, 32-SCW |
|---|
