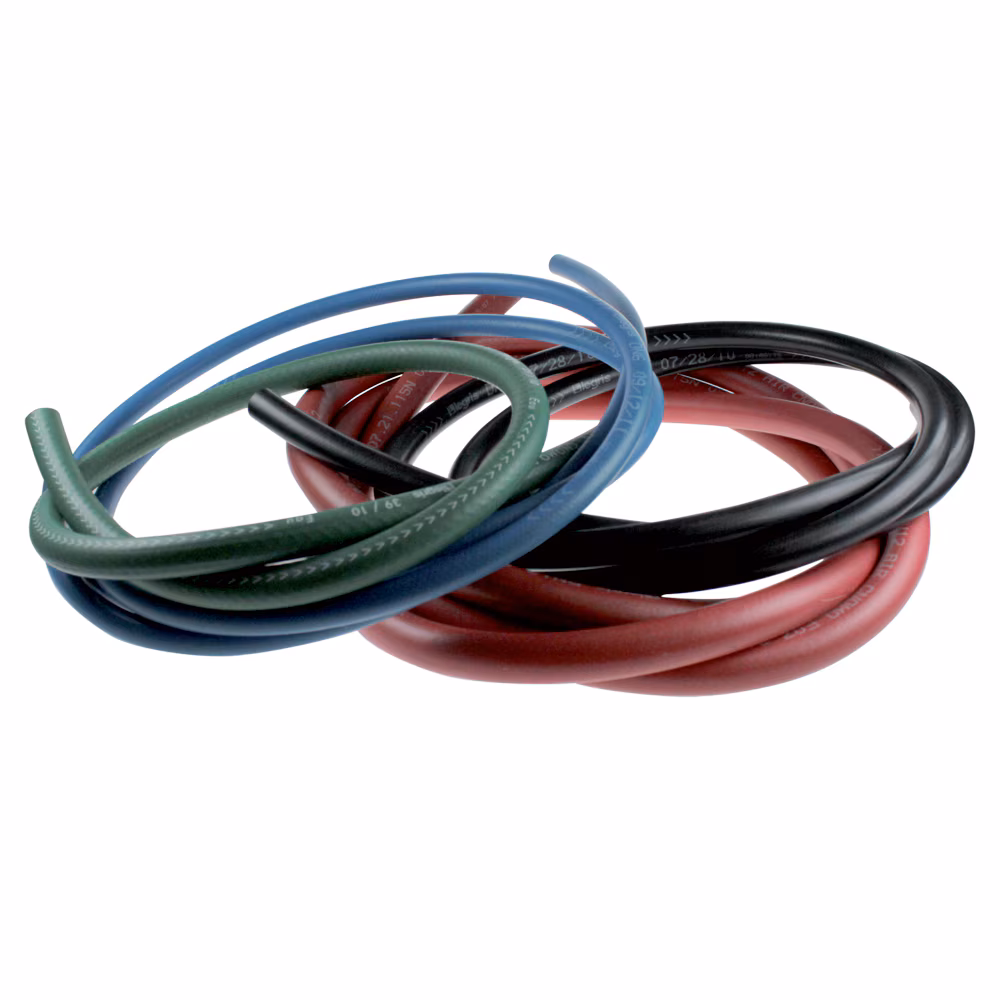

Self-fastening NBR

CNOMO: E07.21.115N, NF T46 019, NF T47 252, REACH, RoHS 2011/65/EC

Category:

Description

Parker Legris self-fastening hoses are designed to be used with barb fittings or mold quick couplers to convey in-plant industrial fluids. They offer both excellent sealing and robustness with the simplicity of installation for a long life span

Technical Specifications

Weight: 0.07 to 0.4375 kg/m, 0.099 to 0.302 lb/ft, 0.284 to 33.16 kg/package
Disclaimer: CAUTION: CNOMO certification is valid exclusively for Red and Green hose only when connected to Legris’ CNOMO-certified Barb Connectors 0132
Industry: Industrial Manufacturing Equipment
Hose Inner Tube Material: Nitrile Butadiene Rubber (NBR)
Maximum Operating Temperature: 140 to 338 °F, 60 to 170 °C
Minimum Operating Temperature: -40 to -20 °C, -40 to -4 °F
Maximum Operating Pressure: 1 to 2.8 MPa, 10 to 28 bar, 145.04 to 406.11 psi
Cover Material: Nitrile Butadiene Rubber (NBR)
Division: Low Pressure Connectors Europe Division
Brand: Legris
Number of Tubes: 1
Length per Package: 100 m
Region of Origin: France
Product Type: Self-Fastening Hose, Coolant Hose, Pneumatic Hose
Technology: Fluid & Gas Handling, Pneumatics, Process Control
Minimum Bend Radius: 0.787 to 6.692 inch, 20 to 170 mm
Cover Color: Black, Blue, Green, Red, Silver
Media: Air (Pneumatics), Fuels (Oil & Petroleum), Water
Compatible Fitting: Quick-Acting Barbed Fittings (with Brass Male BSPP Thread), Quick-Acting Barbed Fittings (with Brass Male BSPT Thread), Quick-Acting Barbed Fittings (with Brass Female Compression Fitting)
Specifications Met: CNOMO: E07.21.115N, NF T46 019, NF T47 252, REACH, RoHS 2011/65/EC
Application: Cooling Systems, Industrial Machinery, In-Plant Automotive, Pneumatics, Welding Robots
Design Factor: 3:4
Inside Diameter: 0.248 to 0.751 inch, 6.3 to 19.1 mm
Hose Reinforcement Material: Braid of Textile
Package Type: Box, Reel
Outside Diameter: 0.512 to 1.063 inch, 13 to 27 mm

Additional information

Part Number

1040H56 01, 1040H56 02, 1040H56 03, 1040H56 04
1040H60 01, 1040H60 02, 1040H60 03, 1040H60 04
1040H62 01, 1040H62 02, 1040H62 03, 1040H62 04
1040H66 01, 1040H66 02, 1040H66 03, 1040H66 04
1040H69 01, 1040H69 02, 1040H69 03, 1040H69 04

1080H66 01, 1080H66 02, 1080H66 03, 1080H66 04
1080H69 01, 1080H69 02, 1080H69 03, 1080H69 04

1100H56 02, 1100H56 03, 1100H56 04
1100H60 01, 1100H60 02, 1100H60 03, 1100H60 04
1100H62 01, 1100H62 02, 1100H62 03, 1100H62 04

Related products

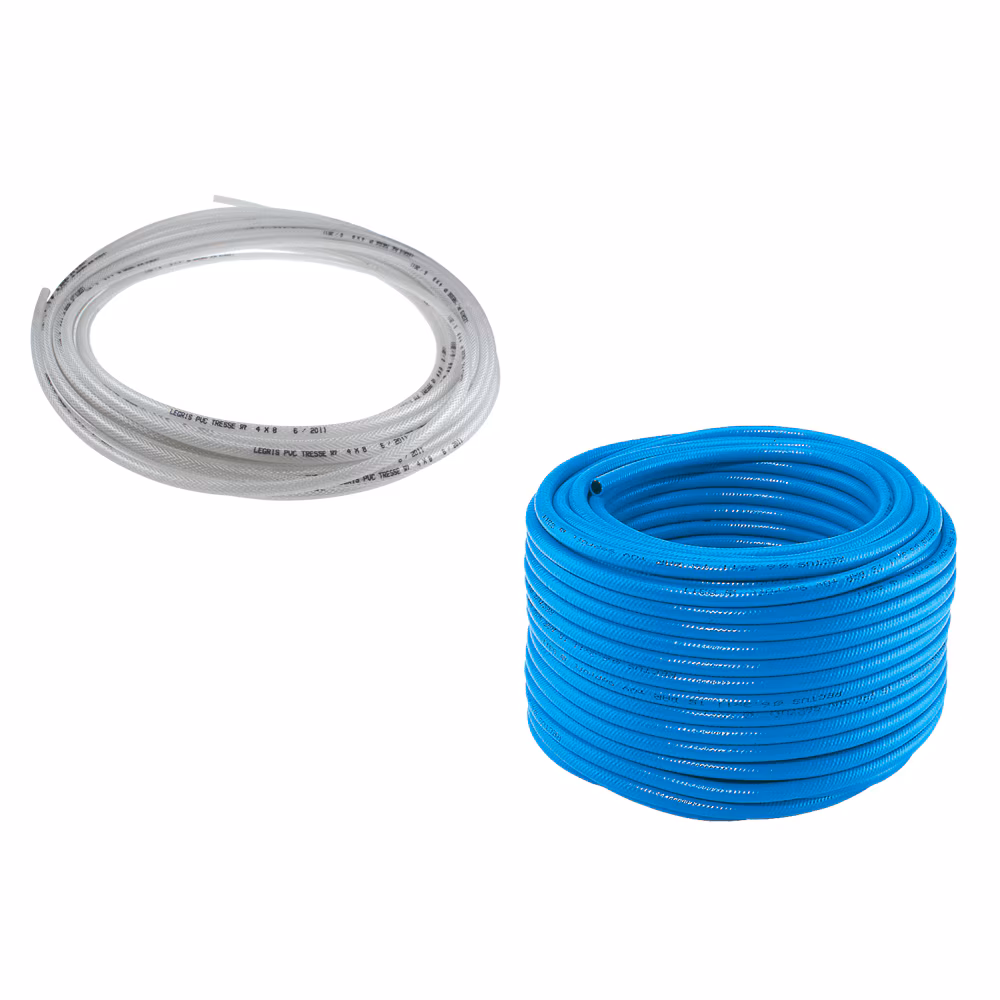

PVC Braided
