SFX

Other

Category:

Description

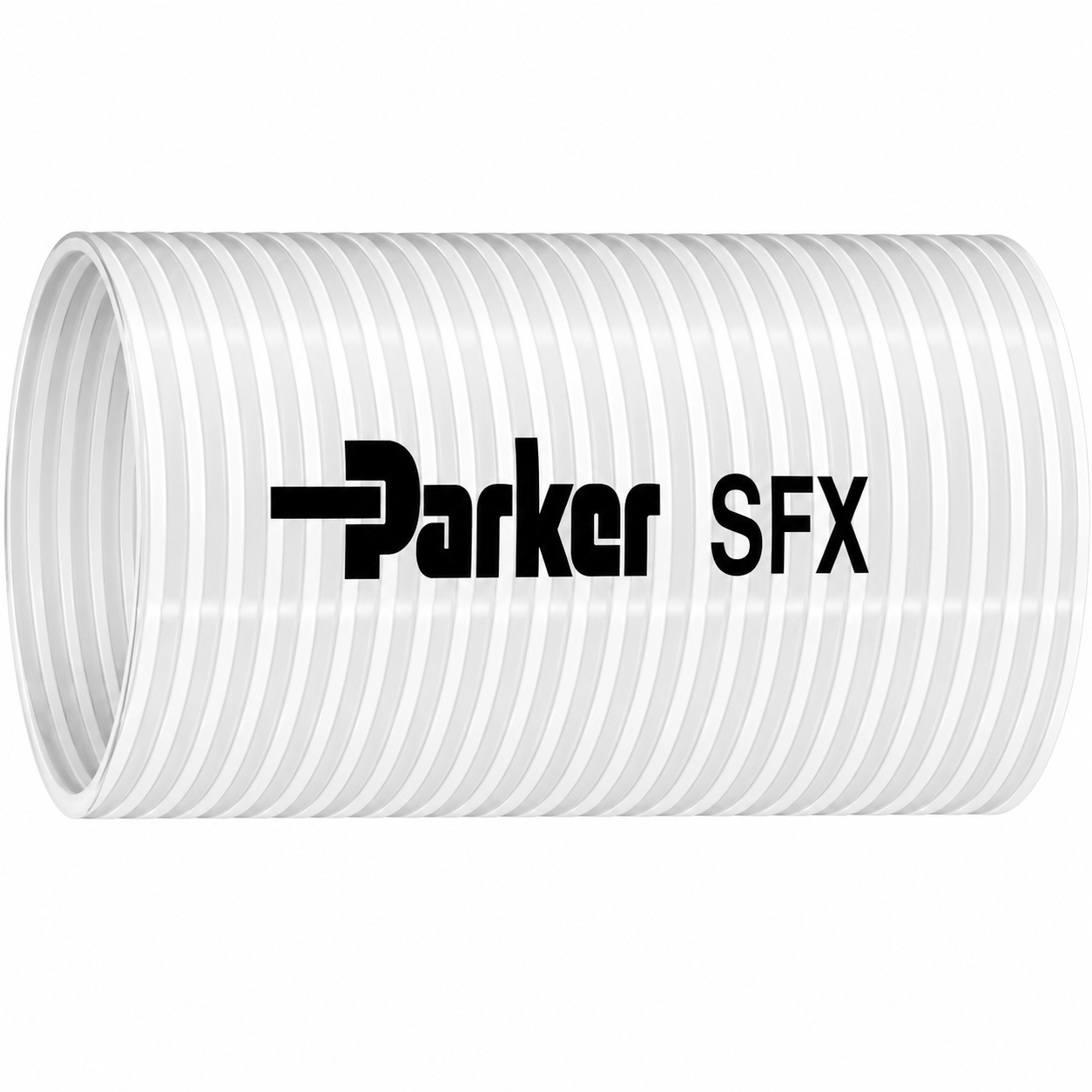

Seedflex Designed to suit harsh Australian Airseeder applications.This hose has superior abrasion resistance with the advantage of being clear with white helix.Also stocked in black/clear using prefix SFX-B.

Technical Specifications

Hose Inner Tube Material: PVC
Nominal Hose Inside Diameter: 25 to 75 mm
Maximum Operating Pressure: 145 psi
Maximum Operating Temperature: 60 °C, 140 °F
Application: Airseeder Applications
Minimum Operating Temperature: -10 °C, 14 °F
Minimum Bend Radius: 75 to 350 mm
Cover Color: White
Media: Wet Abrasive Powders
Specifications Met: Other
Weight: 0.33 to 1.52 kg/m
Inside Diameter: 1 to 3 inch, 22.5 to 76.2 mm
Cover Material: PVC
Design Factor: 2:1
Vacuum Pressure Rating: 20.2 to 23.6 inch-Hg, 515 to 600 mm-Hg
Outside Diameter: 31.5 to 86.6 mm
Size: -16 to -48
Length: 20 m

Additional information

Part Number

SFX-025-020, SFX-032-020, SFX-038-020, SFX-050-020, SFX-063-020, SFX-075-020
