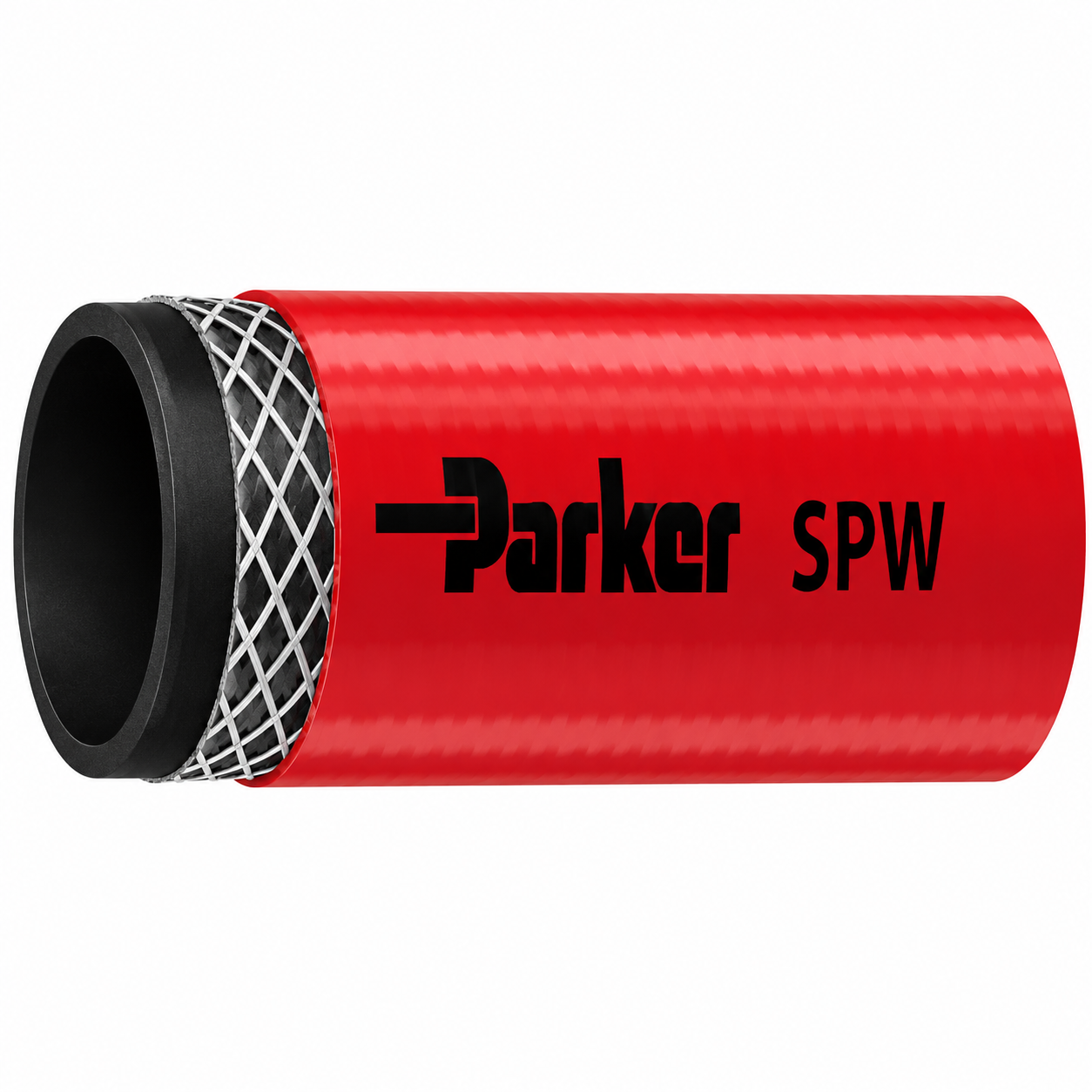

SPW
Other
Description
Spraychem Specifically designed for use in pest control and agricultural chemical spray applications. Its lightweight construction, makes it suitable for most spraying applications, where flexibility and ease of handling is essential.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Minimum Bend Radius: | 80 to 190 mm |
| Cover Color: | Red |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | Other |
| Compatible Fitting: | n/a |
| Weight: | 0.16 to 0.35 kg/m |
| Inside Diameter: | 3/8 to 3/4 inch, 10 to 20 mm |
| Maximum Operating Pressure: | 17.2 to 20.6 bar, 1.7 to 2 MPa, 250 to 300 psi |
| Application: | Horticultural Equipment, Pest Spray |
| Cover Material: | PVC |
| Hose Reinforcement Material: | Fiber |
| Nominal Hose Inside Diameter: | DN10 to 20 |
| Outside Diameter: | 17 to 27.5 mm |
| Size: | -6 to -12 |
Additional information
| Part Number | SPW-010-020, SPW-010-100, SPW-012-020, SPW-012-100 |
|---|
