SS106
ISO 2928 (E)
Description

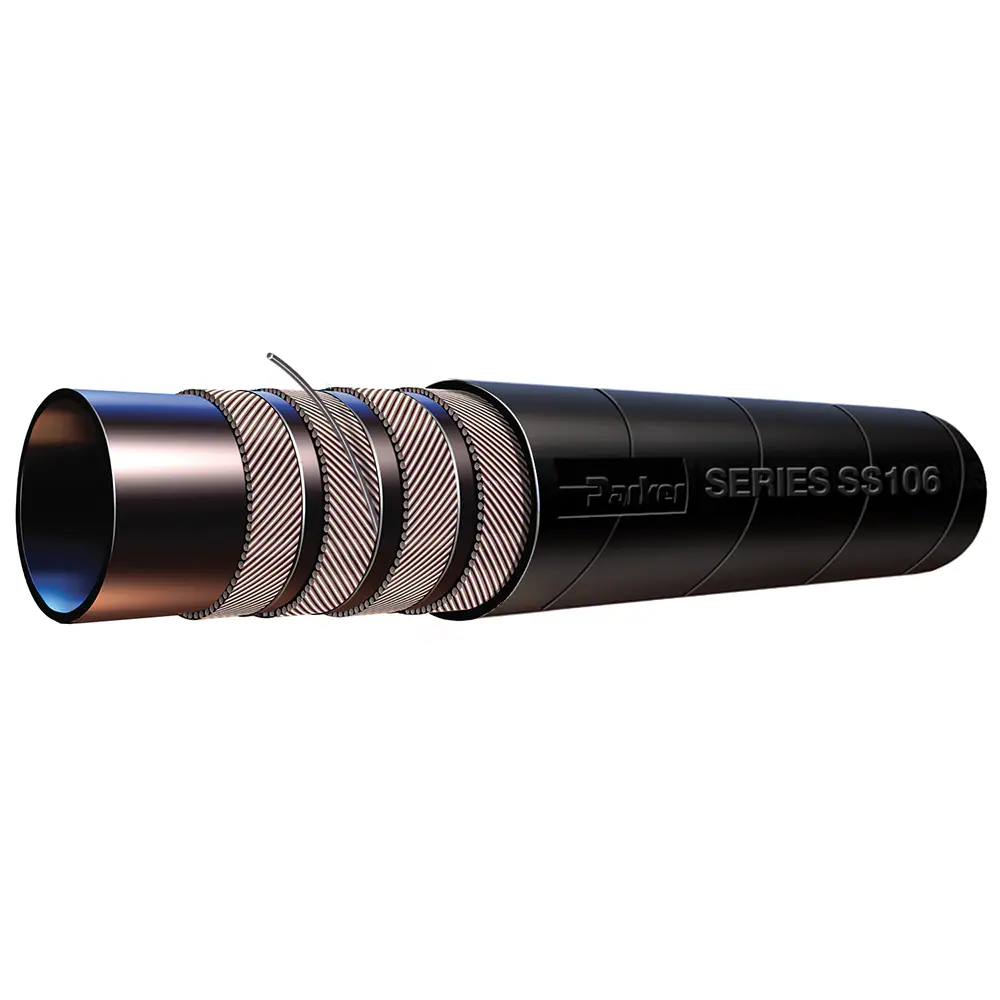

Large Diameter Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series SS106
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Nitrile |
| Maximum Operating Temperature: | 71 °C, 160 °F |
| Application: | Compressed Gas |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Weight: | 0.11 to 0.62 kg/m, 0.82 to 4.5 lb/ft, 0.82 to 4.47 lb, 0.37 to 2.03 kg |
| Inside Diameter: | 31.8 to 101.6 mm, 1-1/4 to 4 inch |
| Outside Diameter: | 50.6 to 127.0 mm, 1.990 to 5.000 inch |
| Specifications Met: | ISO 2928 (E) |
| Maximum Operating Pressure: | 2.4 MPa, 350 psi, 24.1 bar |
| Minimum Bend Radius: | n/a |
| Nominal Hose Inside Diameter: | 32 to 100 mm |
| Package Type: | Coil |
| Hose Reinforcement Material: | 4 or 6 Plies of Textile with Static Wire |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Length per Package: | 100 ft |
Additional information
| Part Number | SS106-3000 |
|---|
