SS135
N/A
Description

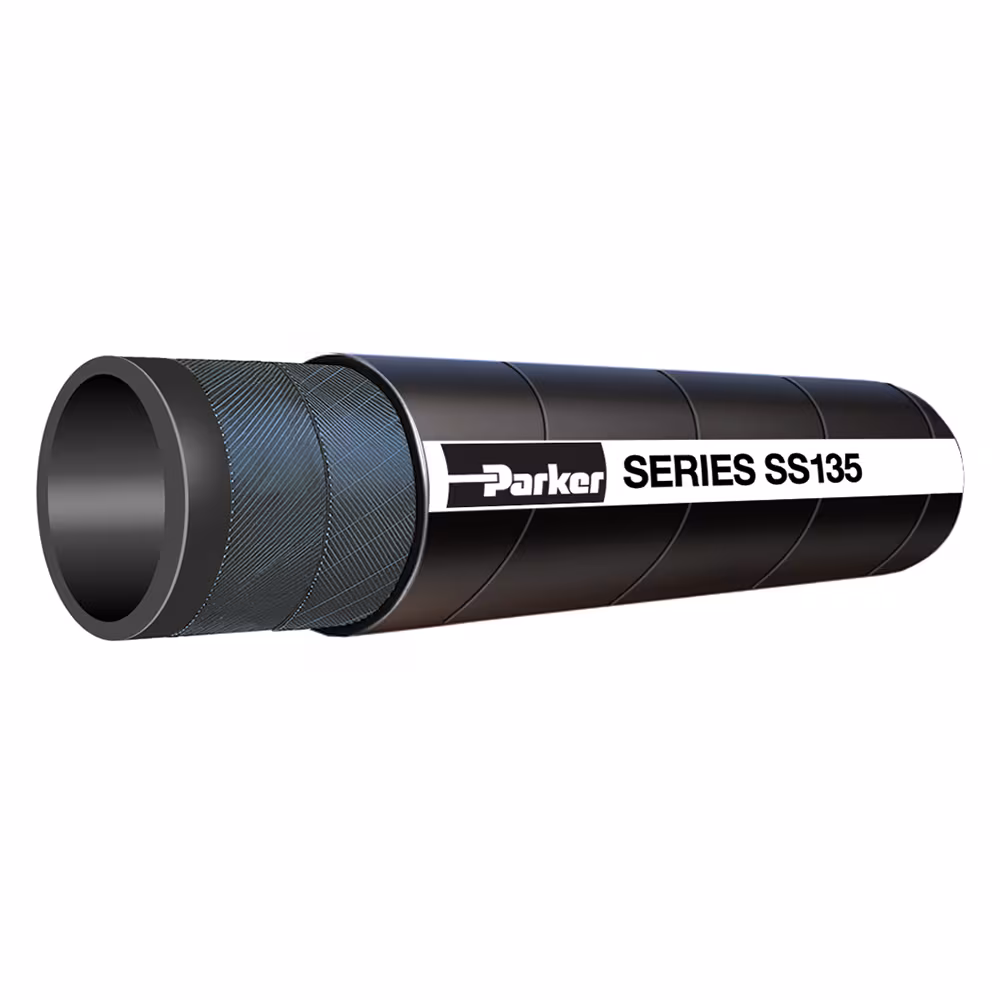

Wildcatter Dry Cement Material Handling Hose incorporates a 1/8” thick rubber tube and is designed for gravity flow/low pressure transfer of dry abrasive materials in applications to 180°F and 65 psi, Series SS135
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Styrene Butadiene Rubber (SBR) Static Dissipative, Black Static Dissipative |
| Cover Material: | Styrene Butadiene Rubber (SBR) |
| Media: | Wet Abrasive Powders |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 0.5 MPa, 65 psi, 4.5 bar |
| Weight: | 0.21 to 0.32 kg/m, 1.5 to 2.3 lb/ft, 1.49 to 2.32 lb, 0.68 to 1.05 kg |
| Nominal Hose Inside Diameter: | 100 to 150 mm |
| Inside Diameter: | 4 to 6 inch, 101.6 to 152.4 mm |
| Application: | Material Handling |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Outside Diameter: | 114.3 to 166.6 mm, 4.50 to 6.56 inch |
| Package Type: | Coil |
| Minimum Bend Radius: | n/a |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Length per Package: | 100 ft |
Additional information
| Part Number | SS135-4000, SS135-4500, SS135-5000, SS135-6000 |
|---|
