SS247
N/A
Description

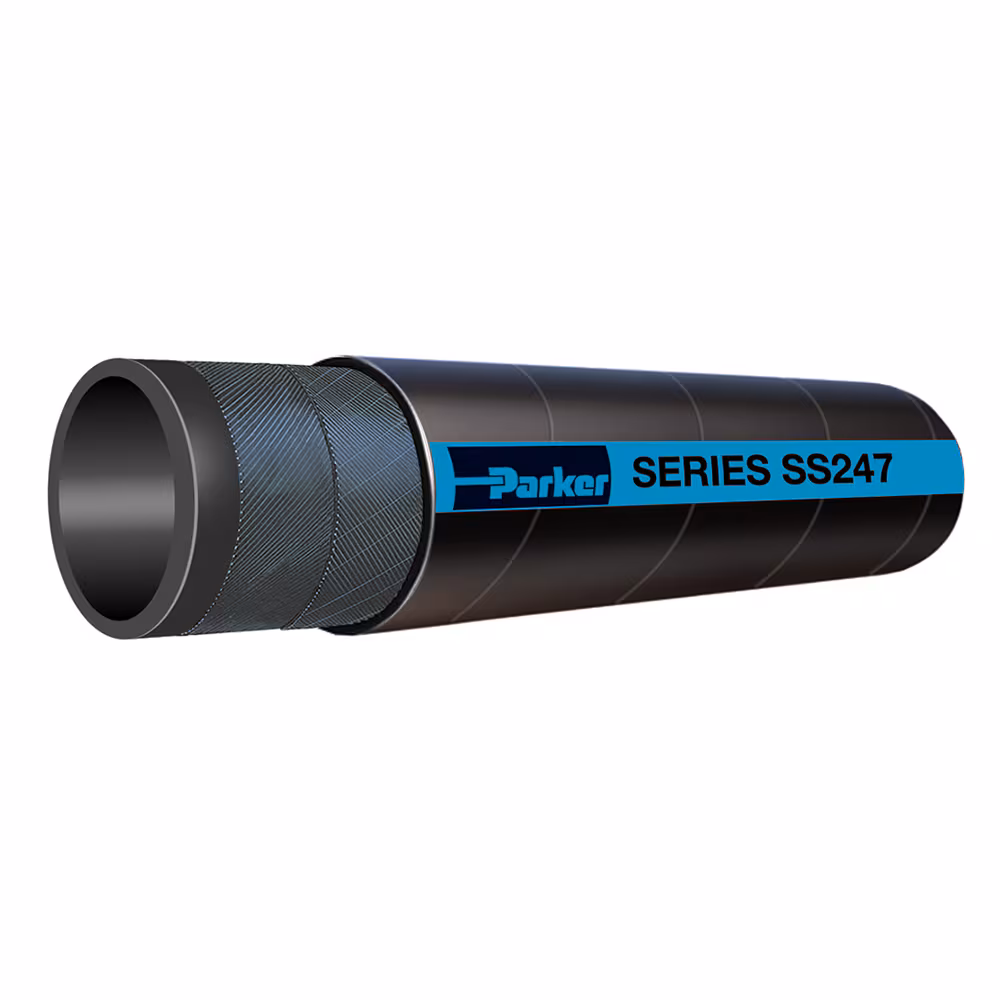

Wildcatter Heavy Duty Dry Cement Material Handling Hose incorporates a 1/4” thick rubber tube and is designed for low pressure transfer of dry abrasive materials in applications to 180°F and 75 psi, Series SS247
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Styrene Butadiene Rubber (SBR) Static Dissipative, Black Static Dissipative |
| Cover Material: | Styrene Butadiene Rubber (SBR) |
| Media: | Wet Abrasive Powders |
| Specifications Met: | n/a |
| Inside Diameter: | 4 to 6 inch, 101.6 to 152.4 mm |
| Application: | Material Handling |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Package Type: | Coil |
| Weight: | 0.36 to 0.68 kg/m, 2.5 to 4.9 lb/ft, 2.49 to 4.88 lb, 1.13 to 2.21 kg |
| Maximum Operating Pressure: | 0.4 to 0.5 MPa, 60 to 75 psi, 4.1 to 5.2 bar |
| Outside Diameter: | 114.3 to 166.6 mm, 4.50 to 6.56 inch |
| Nominal Hose Inside Diameter: | 100 to 150 mm |
| Minimum Bend Radius: | n/a |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Length per Package: | 100 ft |
Additional information
| Part Number | SS247-4000, SS247-4500, SS247-5000, SS247-6000, SS247-8000 |
|---|
