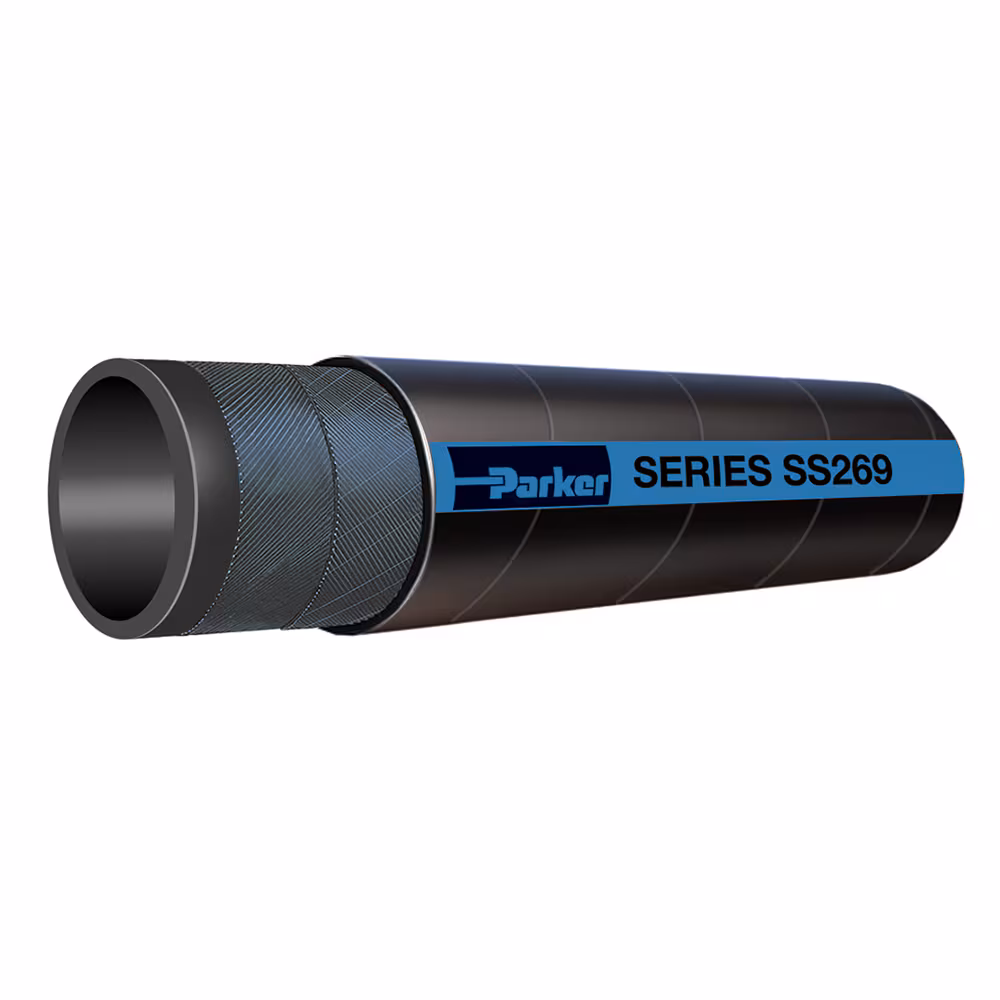

SS269
Certification: SAE J2006R1, ABYC, USCG
Description
Marine Softwall Wet Exhaust Hose is designed as a flexible connection for exhaust systems to circulate, cool and transfer hot engine water and exhaust gases in marine engine applications to 200°F and 200 psi, Series SS269
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Nitrile |
| Maximum Operating Pressure: | 150 to 200 psi, 1.0 to 1.7 MPa |
| Application: | Marine |
| Weight: | 0.06 to 0.65 kg/m, 0.45 to 4.7 lb/ft, 0.45 to 4.65 lb, 0.20 to 2.11 kg |
| Nominal Hose Inside Diameter: | 25 to 150 mm |
| Specifications Met: | SAE J2006R1, ABYC, USCG |
| Inside Diameter: | 25.4 to 152.4 mm, 1 to 6 inch |
| Outside Diameter: | 36.6 to 175.2 mm, 1.440 to 6.898 inch |
| Minimum Bend Radius: | n/a |
| Hose Reinforcement Material: | 2 or 4 Plies of Textile |
| Package Type: | Coil |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Maximum Operating Temperature: | 200 °F, 93 °C |
| Length per Package: | 25 to 50 ft |
Additional information
| Part Number | SS269-1000, SS269-1125, SS269-1250, SS269-1312, SS269-1375, SS269-1500, SS269-1625, SS269-1750, SS269-1875, SS269-2000, SS269-2125, SS269-2250, SS269-2375, SS269-2500, SS269-2625, SS269-2750, SS269-2875, SS269-3000, SS269-3500, SS269-4000, SS269-4500, SS269-5000, SS269-5562, SS269-6000 |
|---|
