STW/STB
FDA (Core Tube), USP Class VI (compliant core tube)
Description

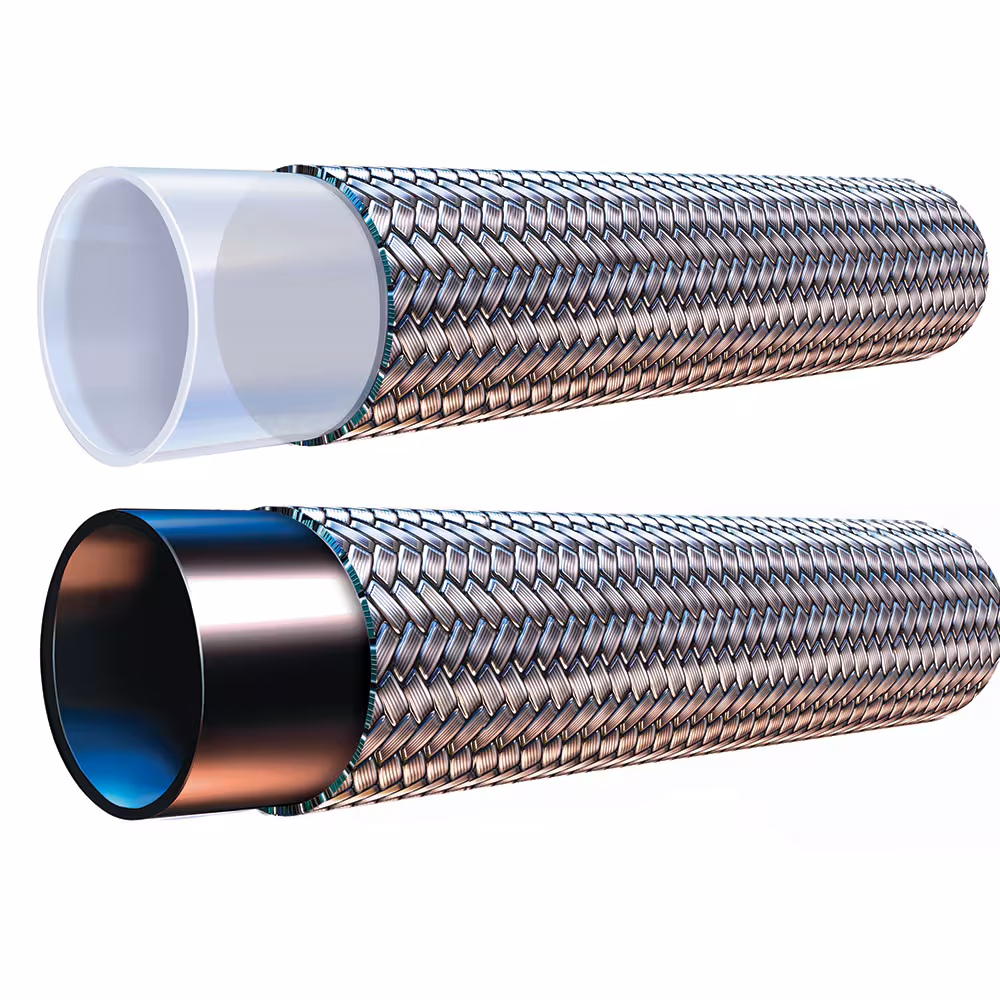

Parker’s STW/STB “True-Bore” Hose differs from other smoothbore PTFE hoses. This braided PTFE hose has a larger I.D. to speed up the flow of the media.
Technical Specifications
| Design Factor: | 4 |
| Cover Color: | n/a |
| Media: | Air, Chemicals (Adhesive), Chemicals – Check your fluid compatibility with our catalogue chart., Food & Beverage (Cooking Oil), Industrial Fluids, Water |
| Specifications Met: | FDA (Core Tube), USP Class VI (compliant core tube) |
| Compatible Fitting: | PAGE Series |
| Weight: | 0.13 to 1.18 kg/m, 0.08 to 0.79 lb/ft |
| Maximum Operating Temperature: | 450 °F, 232 °C |
| Minimum Operating Temperature: | -100 °F, -73 °C |
| Outside Diameter: | 0.370 inch, 0.510 inch, 0.630 inch, 0.880 inch, 1.130 inch, 1.220 inch, 1.520 inch, 1.730 inch, 9 to 44 mm |
| Inside Diameter: | 1/4 to 1-1/2 inch, 6 to 38 mm |
| Maximum Operating Pressure: | 62 to 207 bar, 6.2 to 20.7 MPa, 900 to 3000 psi |
| Application: | Chemical Transfer, Fluid Handling, Food & Beverage Processing, Industrial, Instrumentation, Manufacturing, Medical, Packaging, Pharmaceutical |
| Hose Reinforcement Material: | Braid of Stainless Steel |
| Vacuum Pressure Rating: | 15 to 28 inch-Hg, 381 to 711 mm-Hg |
| Hose Inner Tube Material: | Natural Static Dissipative, Polytetrafluoroethylene (PTFE) Static Dissipative |
| Cover Material: | n/a |
| Product Style: | Smoothbore, Truebore |
| Size: | -4 to -24 |
| Minimum Bend Radius: | 1-1/2 to 15 inch, 76 to 381 mm |
Additional information
| Part Number | 04-STW, 06-STW, 08-STW, 12-STW, 16-STW, 16Z-STW, 20Z-STW, 24Z-STW |
|---|
