SW360

N/A

Description

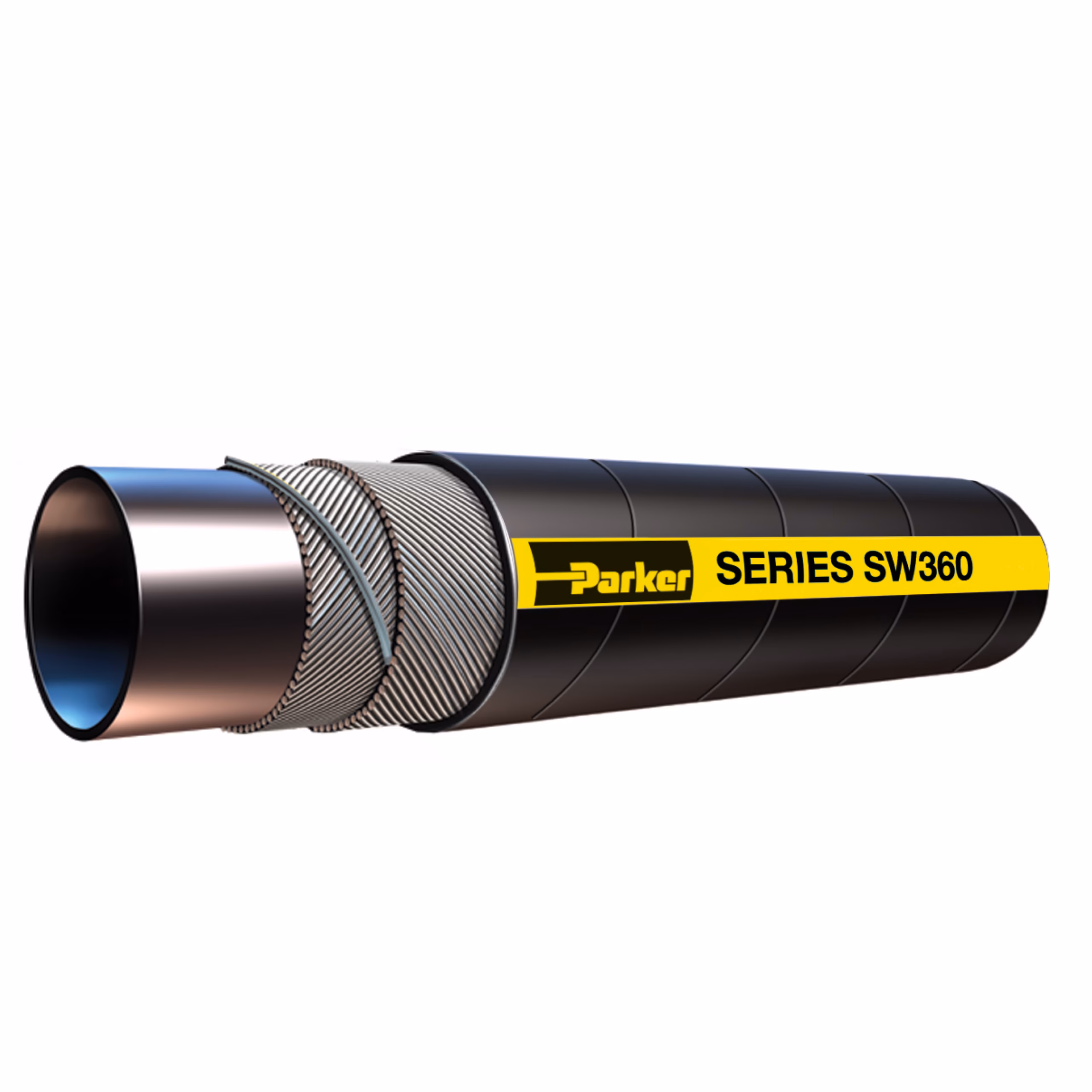

Dragon Breath® Hot Air Hose is designed for hot air transfer in dry material loading/unloading applications to 350°F and 200 psi, Series SW360

Hose Inner Tube Material:	Black, Ethylene Propylene Diene Monomer (EPDM)
Design Factor:	4:1
Minimum Operating Temperature:	-40 °C, -40 °F
Cover Material:	Ethylene Propylene Diene Monomer (EPDM)
Media:	Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water
Specifications Met:	n/a
Vacuum Pressure Rating:	29 inch-Hg, 737 mm-Hg, Full
Weight:	0.15 to 0.69 kg/m, 1.1 to 5.0 lb/ft, 1.08 to 5.00 lb, 0.49 to 2.27 kg
Maximum Operating Pressure:	0.7 to 1.4 MPa, 100 to 200 psi, 6.9 to 13.8 bar
Nominal Hose Inside Diameter:	50 to 150 mm
Inside Diameter:	2 to 6 inch, 50.8 to 152.4 mm
Application:	Air, Multipurpose
Hose Reinforcement Material:	Multiple Plies of Textile with Dual Wire Helix
Outside Diameter:	2.500 to 6.813 inch, 63.5 to 173.0 mm
Package Type:	Coil
Tube Material:	Ethylene Propylene Diene Monomer (EPDM)
Cover Color:	Black
Cover Structure:	Wrapped
Maximum Operating Temperature:	350 °F, 177 °C
Minimum Bend Radius:	6 to 24 inch, 152.4 to 609.6 mm
Length per Package:	100 ft

Part Number	SW360-2000, SW360-3000, SW360-4000, SW360-6000, SW360-1500
