SW387
N/A
Description

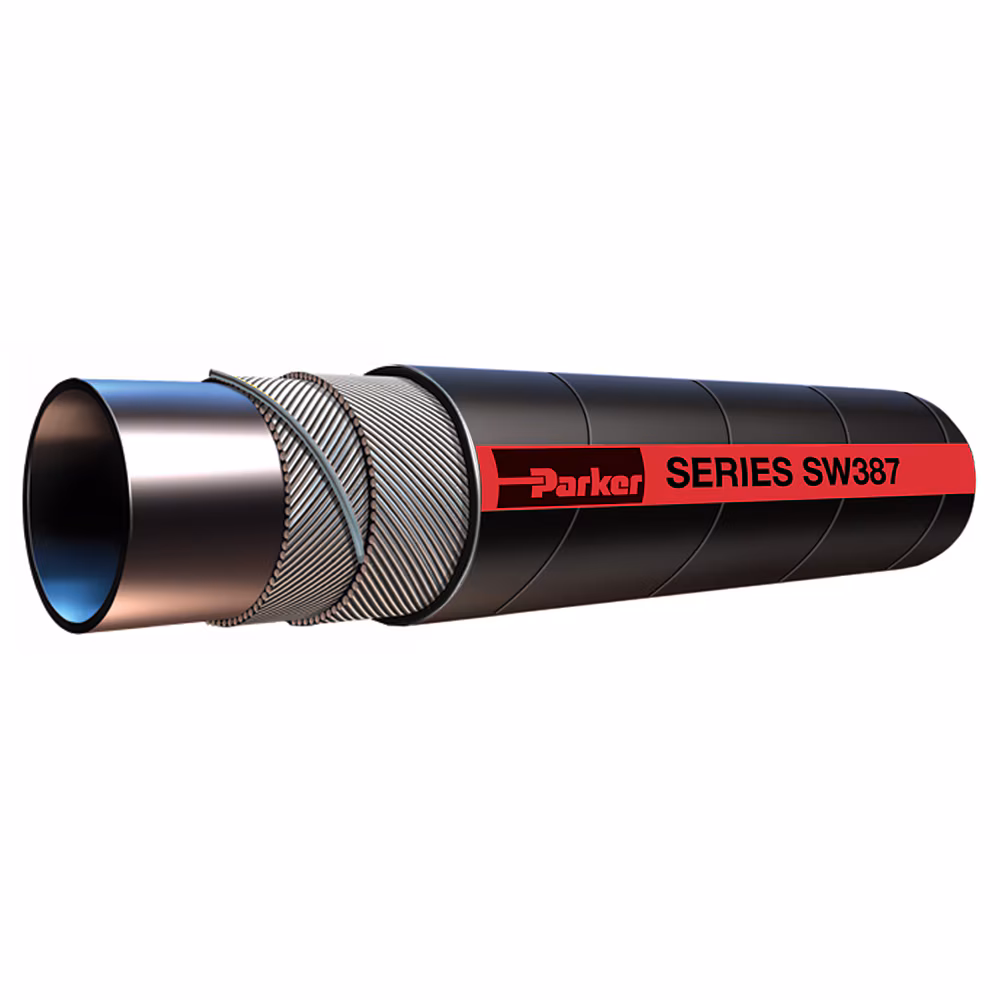

Wildcatter Oilfield Hot Tar Hose is designed for transfer of hot oil and tar in applications to 350°F and 150 psi, Series SW387
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Nitrile |
| Media: | Wet Abrasive Powders |
| Maximum Operating Temperature: | 82 °C, 180 °F |
| Specifications Met: | n/a |
| Inside Diameter: | 4 to 6 inch, 101.6 to 152.4 mm |
| Maximum Operating Pressure: | 1 MPa, 150 psi, 10.3 bar |
| Weight: | 0.98 to 3.6 lb/ft, 0.14 to 0.50 kg/m, 0.98 to 3.60 lb, 0.44 to 1.63 kg |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg, Full |
| Nominal Hose Inside Diameter: | 100 to 150 mm |
| Application: | Material Handling |
| Outside Diameter: | 114.3 to 166.6 mm, 4.50 to 6.56 inch |
| Hose Reinforcement Material: | 2 Plies of Textile with Dual Wire Helix |
| Package Type: | Coil |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Design Factor: | 4:1 |
| Minimum Bend Radius: | 6 to 18 inch, 152.4 to 457.2 mm |
| Length per Package: | 100 ft |
Additional information
| Part Number | SW387-1500, SW387-2000, SW387-2500, SW387-3000, SW387-4000 |
|---|
