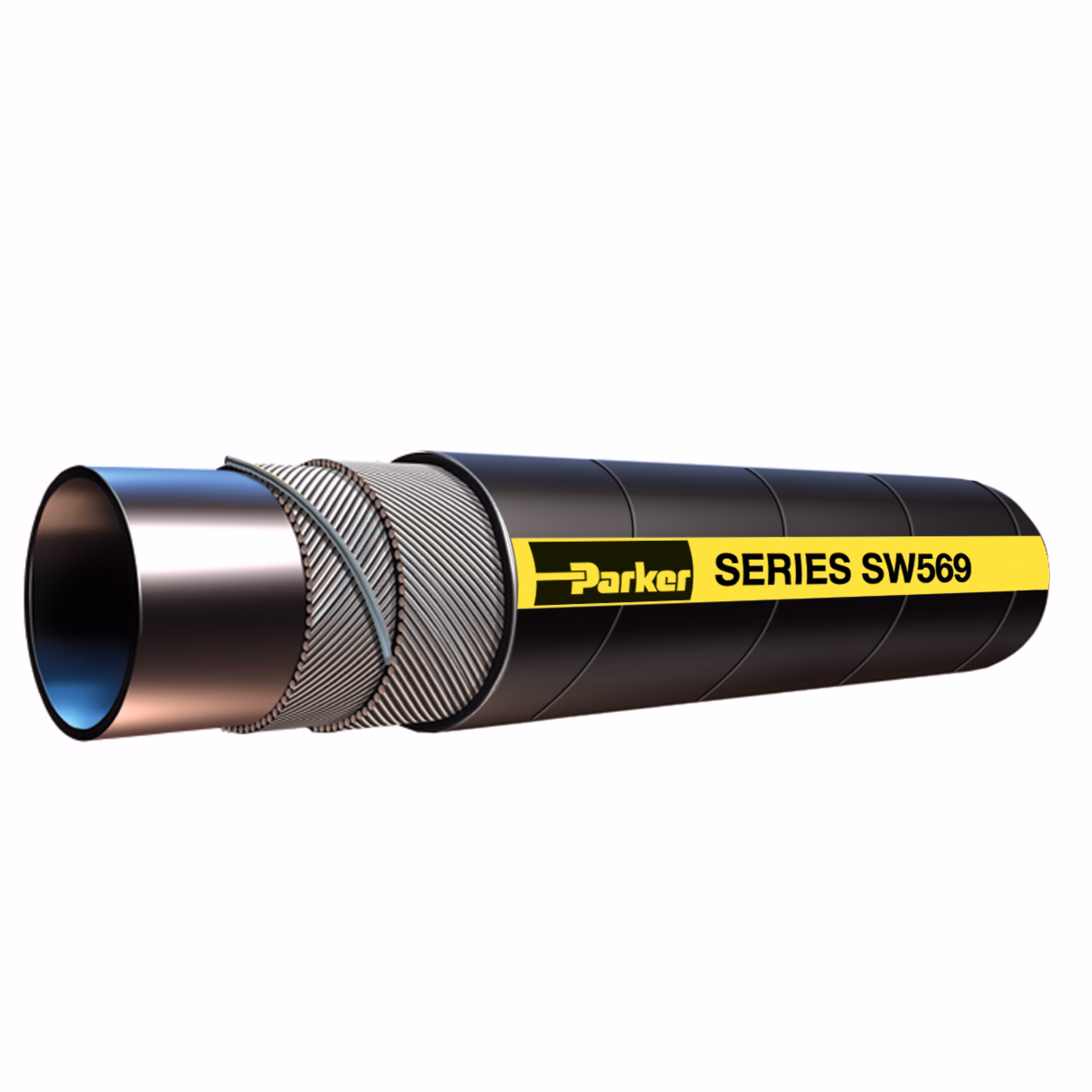

SW569
ISO 7840 A1, ISO 8469 (B1), NMMA, NVW, SAE J1527, Type A1/A2, SAE J1942, Code F, SAE J2006R2, SAE J20R2, Class B, SAE J30R5, USCG, VW
Description
Armada Marine Multipurpose Oil Resistant Suction Hose is designed for marine engine fuel supply and venting, hardwall wet exhaust and other applications to 212°F and 75 psi, Series SW569
Technical Specifications
| Design Factor: | 4:1 |
| Cover Material: | Chloroprene Rubber (CR) |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Weight: | 0.29 to 4.3 lb/ft, 0.04 to 0.59 kg/m, 0.13 to 1.83 kg/ft |
| Maximum Operating Pressure: | 2.8 to 5.2 bar, 40 to 75 psi, 0.3 to 0.5 MPa |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg, Full |
| Minimum Bend Radius: | 2 to 28 inch, 50.8 to 711.2 mm |
| Nominal Hose Inside Diameter: | 15 to 150 mm |
| Application: | Marine |
| Specifications Met: | ISO 7840 A1, ISO 8469 (B1), NMMA, NVW, SAE J1527, Type A1/A2, SAE J1942, Code F, SAE J2006R2, SAE J20R2, Class B, SAE J30R5, USCG, VW |
| Inside Diameter: | 1/2 to 6 inch, 12.7 to 152.4 mm |
| Hose Reinforcement Material: | 2 Plies of Textile with Dual Wire Helix |
| Length per Package: | 25 to 50 ft |
| Outside Diameter: | 22.6 to 167.2 mm, 0.890 to 6.582 inch |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Base number: | SW569 |
| Cover Structure: | Wrapped |
| Cover Color: | Black |
| Hose Inner Tube Material: | Black, Nitrile |
Additional information
| Part Number | SW569-625, SW569-750, SW569-1000, SW569-1125, SW569-1250, SW569-1312, SW569-1375, SW569-1500, SW569-1625, SW569-1750, SW569-1875, SW569-2000, SW569-2375, SW569-2500, SW569-2875, SW569-3000, SW569-3500, SW569-4000, SW569-4500, SW569-5000, SW569-6000 |
|---|
