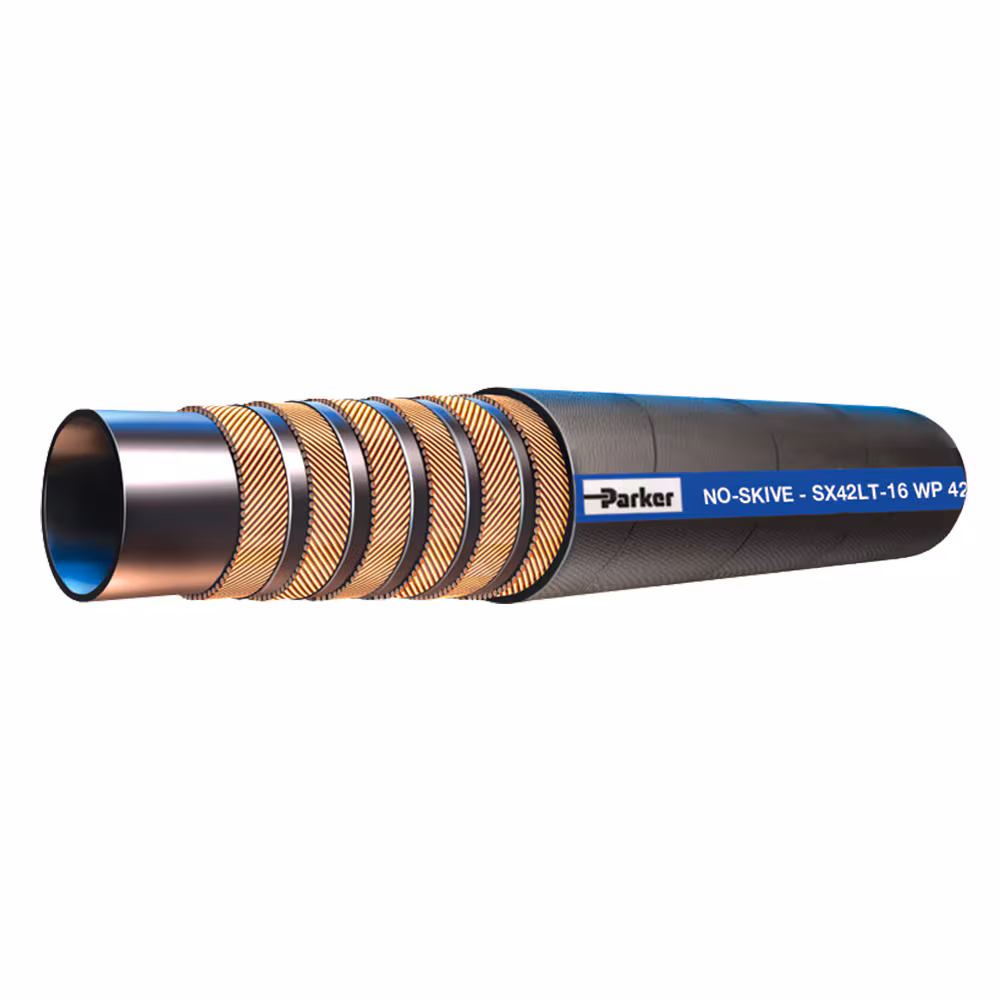

SX42LT
Certification: Parker Specifications
Description
Parker No-Skive High Constant Pressure hose SX42LT is designed for high pressure hydraulic applications in extreme cold environment. Working pressure up to 42,0 MPa and temp range from -57 °C up to +100°C. Compatible with No-Skive fittings series 73/77
Technical Specifications
| Weight: | 1.72 to 2.98 kg/m, 1.15 to 2.00 lb/ft |
| Industry: | General Industrial, Off-road Machinery |
| Hose Inner Tube Material: | Synthetic Rubber |
| Brand: | Parker |
| Minimum Operating Temperature: | -57 °C, -70.6 °F |
| Maximum Operating Pressure: | 42.0 MPa, 420 bar, 6000 psi |
| Product Type: | Specialty Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Synthetic Rubber |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Materials of Construction: | Rubber |
| Product Style: | No-Skive Multispiral |
| Minimum Bend Radius: | 10.236 to 15.748 inch, 260 to 400 mm |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | 73 Series, 77 Series |
| Inside Diameter: | 3/4 to 1-1/4 inch, 19.1 to 31.5 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | High Pressure Hydraulics |
| Hose Reinforcement Material: | 4 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 1.275 to 1.823 inch, 32.4 to 46.3 mm |
| Media: | Air (General Industrial Air), Coolants (Glycol, Coolants (Glycol), Fuels – Check fuel type with our catalogue chart. |
Additional information
| Part Number | SX42LT-12, SX42LT-16, SX42LT-20 |
|---|
