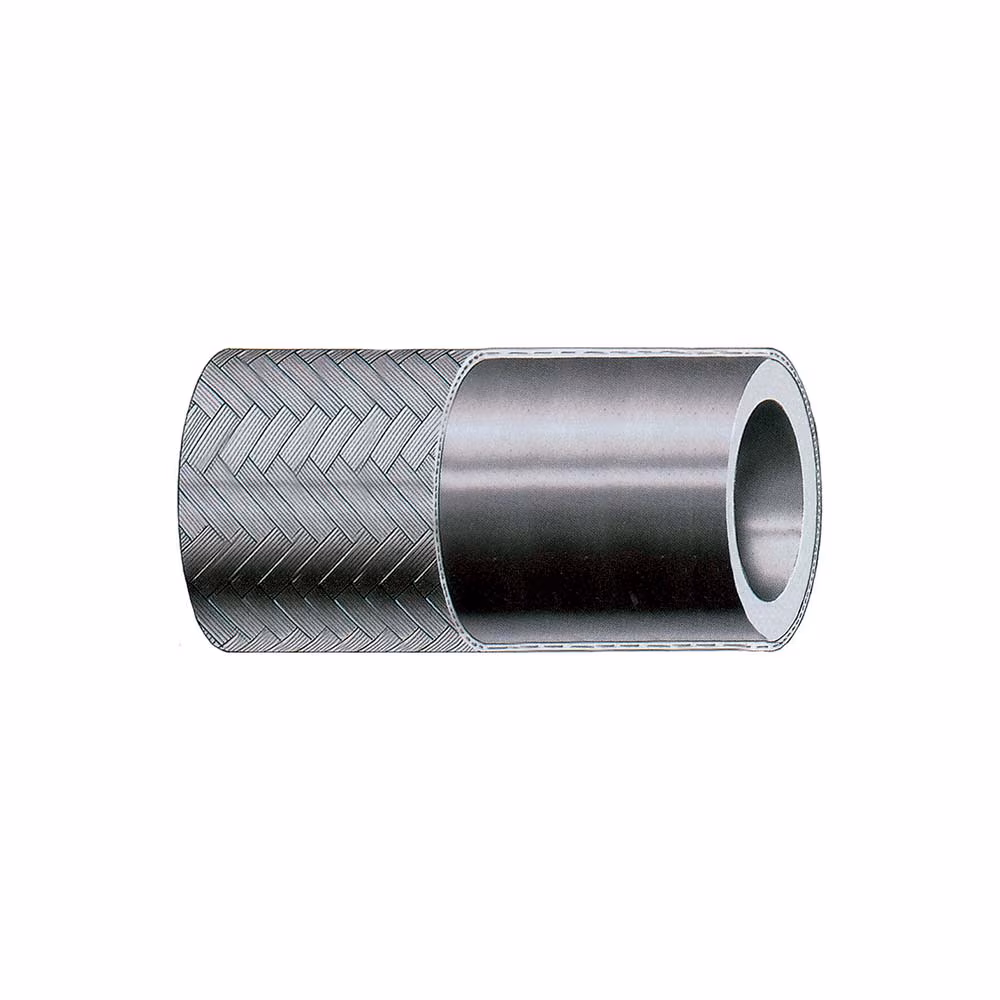

TBE
Parker Specifications
Description
TBE is specially designed for fuel systems where the textile cover of the hose is requested.
Technical Specifications
| Industry: | Automotive, Transportation |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Brand: | Parker |
| Maximum Operating Temperature: | 194 °F, 90 °C |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Maximum Operating Pressure: | 10 bar, 150 psi |
| Application: | Automotive, Boat |
| Product Type: | Fuel Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Weight: | 0.04 kg/m, 0.13 kg/m, 0.03 lb/ft, 0.09 lb/ft |
| Materials of Construction: | Rubber |
| Hose Reinforcement Material: | Braid of Textile, n/a |
| Media: | Fuels – Check fuel type with our catalogue chart., Petroleum Hydraulic Fluids |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | n/a |
| Inside Diameter: | 0.118 to 0.295 inch, 3.0 to 7.5 mm |
| Minimum Bend Radius: | 1.181 to 2.559 inch, 30 to 65 mm |
| Outside Diameter: | 0.276 to 0.571 inch, 7.0 to 14.5 mm |
Additional information
| Part Number | IH11001300/15-R90, IH11001345/15-R90 |
|---|
