Vinitress
CE EU 10/2011
Description

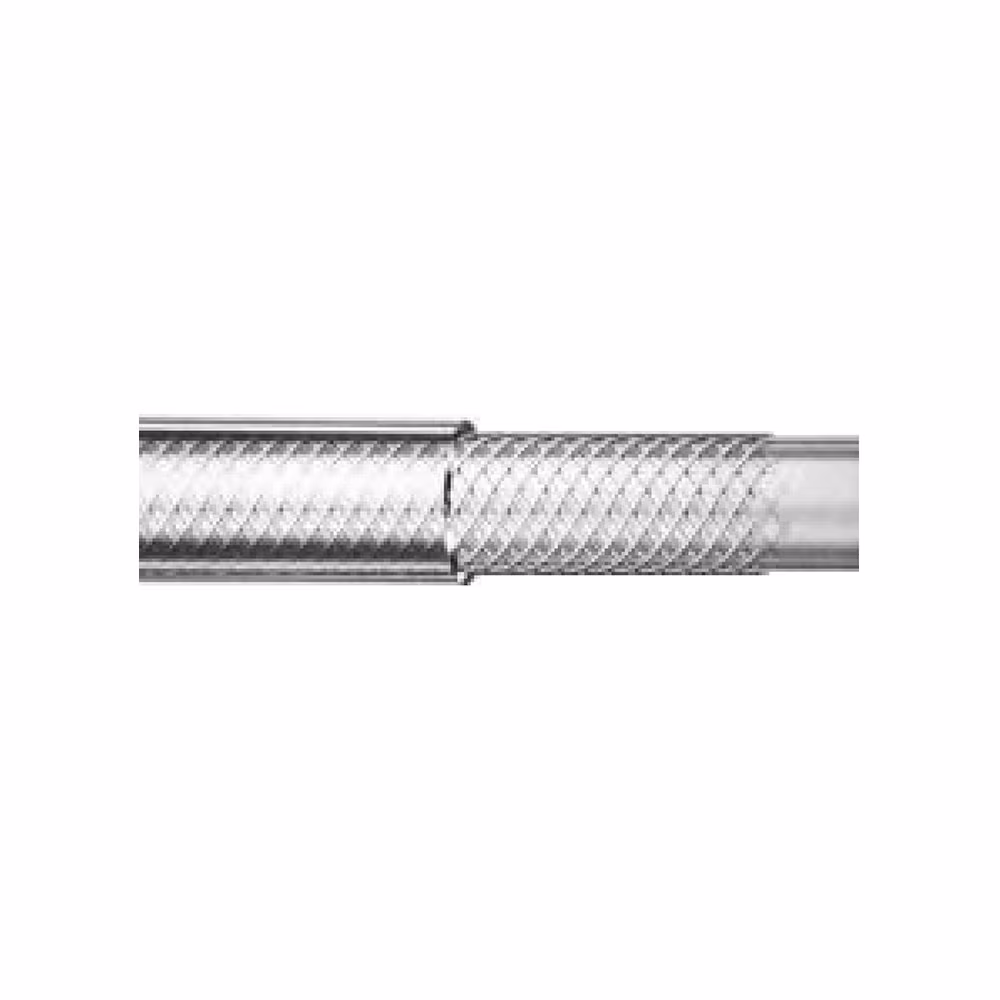

Vinitress is a clear PVC hose engineered for the delivery of liquid food and beverage contents and sanitary products.
Technical Specifications
| Weight: | 0.10 to 1.53 kg/m, 0.07 to 0.55 lb/ft |
| Industry: | Agriculture, General Industrial |
| Hose Inner Tube Material: | n/a |
| Brand: | Parker |
| Maximum Operating Temperature: | 140 °F, 60 °C |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Maximum Operating Pressure: | 5 to 20 bar, 72.5 to 300 psi |
| Product Type: | Food Grade Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | PVC |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Minimum Bend Radius: | 1.575 to 11.811 inch, 40 to 300 mm |
| Materials of Construction: | Rubber |
| Media: | Food & Beverage |
| Specifications Met: | CE EU 10/2011 |
| Compatible Fitting: | n/a |
| Inside Diameter: | 0.236 to 2 inch, 6 to 50 mm |
| Length: | 25 to 100 m |
| Application: | Food & Beverage Processing |
| Hose Reinforcement Material: | Textile |
| Operating Features: | Sterilization at 130 °C for Short Periods. |
| Outside Diameter: | 0.472 to 2.520 inch, 12 to 64 mm |
Additional information
| Part Number | IH35033229/100, IH35033230/100, IH35033223/50, IH35033231/100, IH35033220/50, IH35033222/50, IH35033221/50, IH35033245/50, IH35033241/25, IH35033240/25 |
|---|
