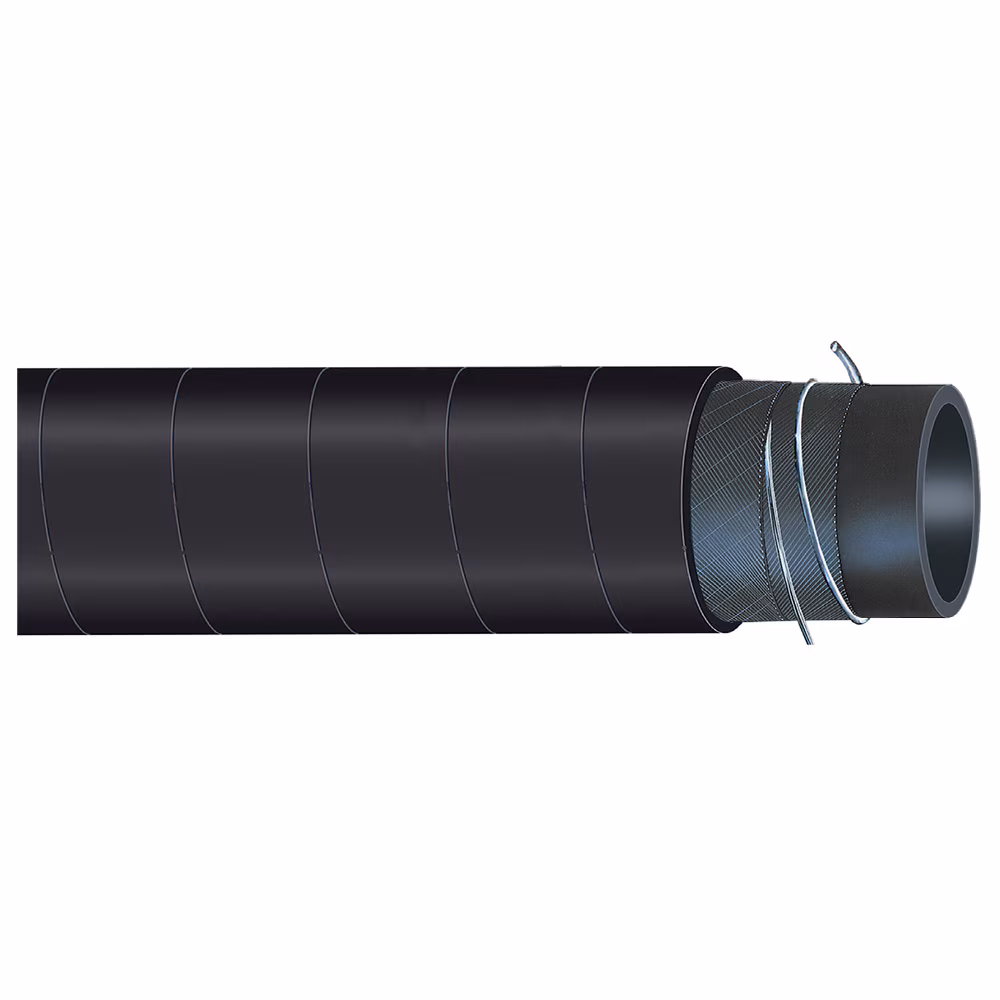

Poliax D SM EN 12115
EN 12115.0, TRbF 131 part 2 par 5.5 (flame resistance)
Description
Poliax D SM EN 12115 is a medium pressure rubber hose designed for suction and delivery of aggressive acids and chemicals combining comfort of use and protection.
Technical Specifications
| Application: | Acid, Chemicals |
| Weight: | 0.48 to 2.96 lb/ft, 0.70 to 4.41 kg/m |
| Industry: | Industrial Manufacturing Equipment, Industrial & Chemicals Processing, Life Sciences & Healthcare |
| Hose Inner Tube Material: | Antistatic, Nitrosamine Free, EPM, Smooth |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F, 130 °C (for short period), 266 °F (for short period) |
| Minimum Operating Temperature: | -31 °F, -35 °C |
| Maximum Operating Pressure: | 1.6 MPa, 16 bar, 232 psi |
| Product Type: | Chemical Hose, Suction Hose, Transfer Hose |
| Design Factor: | 4:1 |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Technology: | Fluid & Gas Handling |
| Minimum Bend Radius: | 125 to 450 mm, 4.921 to 17.716 inch |
| Division: | Polymer Hose Division Europe |
| Product Style: | Suction and Delivery |
| Materials of Construction: | Rubber |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | EN 12115.0, TRbF 131 part 2 par 5.5 (flame resistance) |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 3/4 to 3.937 inch, 19 to 100 mm |
| Length: | 20 to 40 m |
| Hose Reinforcement Material: | Synthetic Textile Fabric with Embedded Steel Wire Helix and Copper Wire |
| Vacuum Pressure Rating: | 0.8 to 0.9 bar, 23.62 to 26.58 inch-Hg, 600 to 675.06 mm-Hg |
| Operating Features: | For Aggressive Chemicals and Solvents the hose is intended to be used at room temperature. The hose can be cleaned and sterilized with usual detergents or steam. |
| Outside Diameter: | 1.220 to 4.567 inch, 31 to 116 mm |
Additional information
| Part Number | IH36810111/40, IH36810112/40, IH36810113/40, IH36810114/40, IH36810115/40, IH36810116/40, IH36810117/40, IH36810118/20 |
|---|
