472LT
Certification: EN 857, Type 2SC
Description

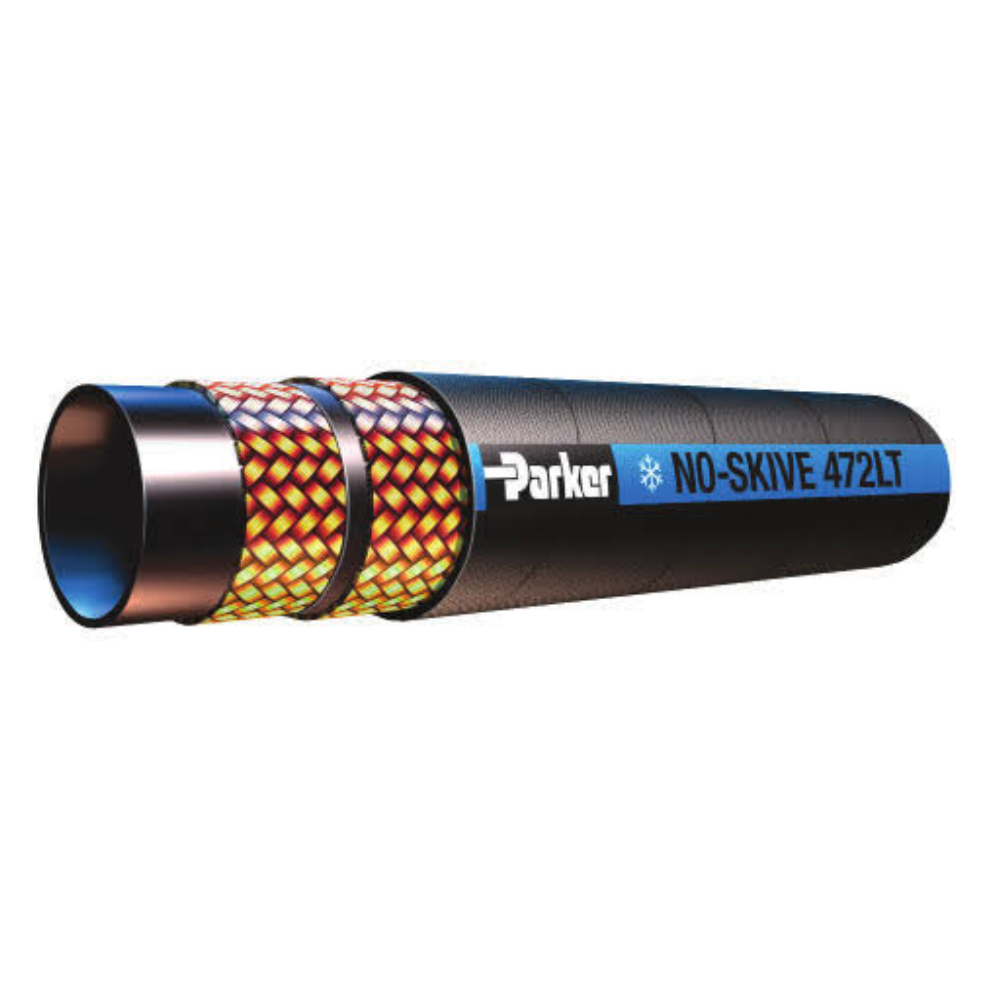

Parker’s 472LT hose is a hydraulic low-temperature hose with a pressure range of 2500-5800 PSI in different sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.
Technical Specifications
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | EN 857, Type 2SC |
| Compatible Fitting: | 43 Series |
| Maximum Operating Pressure: | up to 400 bar, up to 40.0 MPa, up to 5800 psi |
| Weight: | 0.30 to 1.17 kg/m, 0.20 to 0.79 lb/ft |
| Inside Diameter: | 1/4 to 1 inch, 6.3 to 25 mm |
| Application: | Construction Equipment, Hydraulics, Material Handling, Oilfield |
| Hose Reinforcement Material: | 2 Braids of High Tensile Steel Wire |
| Minimum Bend Radius: | 2 to 6 inch, 50 to 150 mm |
| Size: | -4 to -16 |
| Outside Diameter: | 0.53 to 1.39 inch, 13.1 to 35.4 mm |
| Hose Inner Tube Material: | Proprietary Synthetic Rubber Compound |
| Cover Material: | Proprietary Material (Synthetic Rubber) |
| Minimum Operating Temperature: | -70 °F, -57 °C |
| Maximum Operating Temperature: | 212 °F, 100 °C |
Additional information
| Part Number | 472LT-4, 472LT-6, 472LT-8, 472LT-12, 472LT-16 |
|---|
