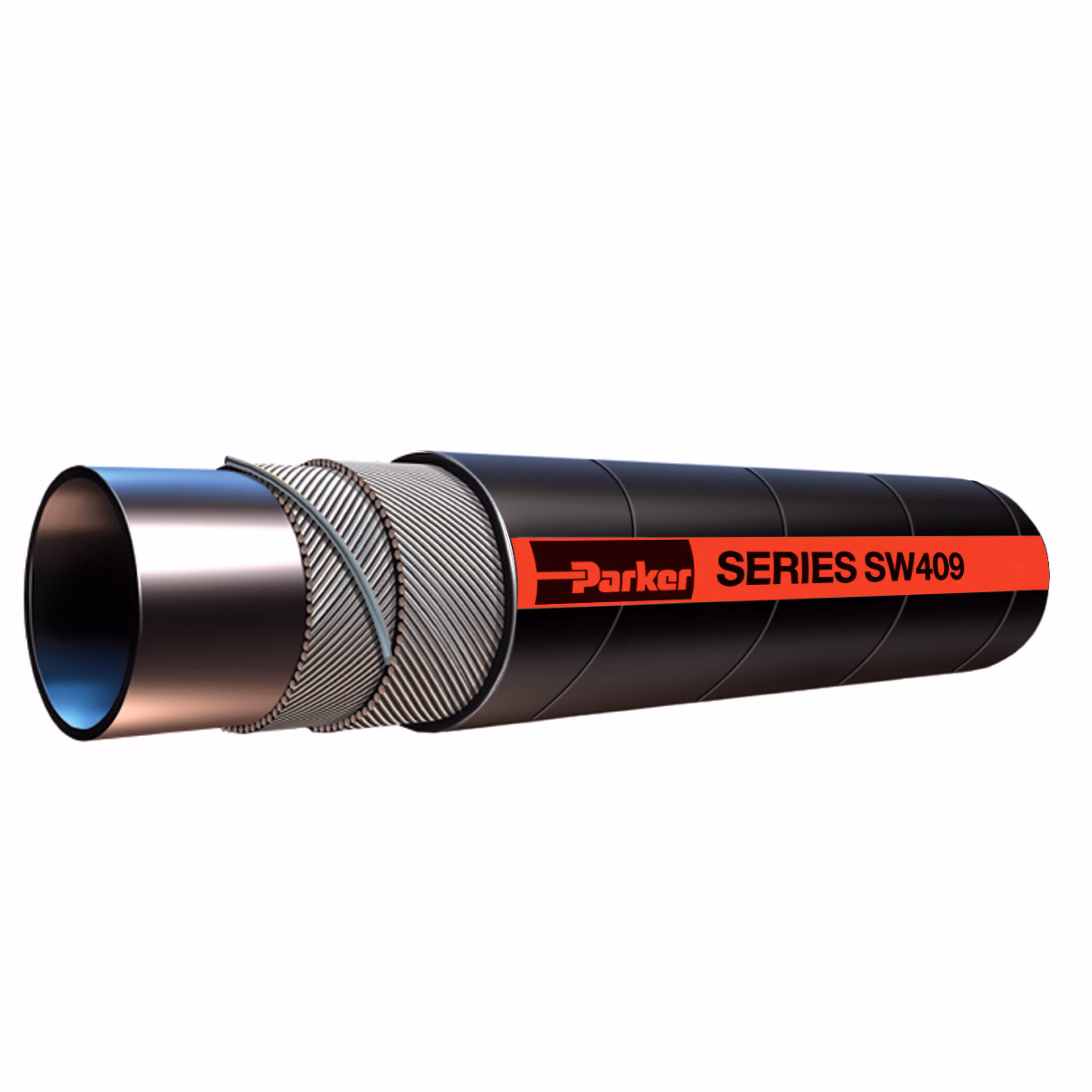

SW409
N/A
Description
Heavy Duty Sand Recovery/Vacuum Hose incorporates a 3/16” thick natural rubber tube and is designed for high pressure transfer of sand and severely abrasive materials in applications to 150°F and 200 psi, Series SW409
Technical Specifications
| Design Factor: | 4:1 |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Styrene Butadiene Rubber (SBR) |
| Media: | Wet Abrasive Powders |
| Specifications Met: | n/a |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg |
| Weight: | 0.19 to 0.73 kg/m, 1.4 to 5.3 lb/ft, 1.41 to 5.30 lb, 0.64 to 2.40 kg |
| Maximum Operating Pressure: | 0.7 to 1.4 MPa, 100 to 200 psi, 6.9 to 13.8 bar |
| Nominal Hose Inside Diameter: | 50 to 150 mm |
| Inside Diameter: | 2 to 6 inch, 50.8 to 152.4 mm |
| Application: | Material Handling |
| Outside Diameter: | 69.9 to 173.0 mm, 2.750 to 6.813 inch |
| Hose Reinforcement Material: | 2 Plies of Textile with Dual Wire Helix |
| Package Type: | Coil |
| Hose Inner Tube Material: | 3/16″ Static Dissipative, Black Static Dissipative, Natural Rubber (NR) Static Dissipative |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Maximum Operating Temperature: | 150 °F, 66 °C |
| Minimum Bend Radius: | 6 to 24 inch, 152.4 to 609.6 mm |
| Length per Package: | 100 ft |
Additional information
| Part Number | SW409-2000, SW409-3000, SW409-4000, SW409-6000 |
|---|
