Medium Pressure No-Skive Compact Hoses - EN 857 1SC - ISO 11237 - 492 - 492TC - 492ST
| Products | Hose I.D. (size) | Hose Cover Type |
|---|---|---|
| 492-4 | -4 | Standard |
| 492-5 | -5 | Standard |
| 492-6 | -6 | Standard |
| 492-8 | -8 | Standard |
| 492-10 | -10 | Standard |
| 492-12 | -12 | Standard |
| 492-16 | -16 | Standard |
| 492-20-WR | -20 | Standard |
| 492ST-6 | -6 | Super Tough |
| 492ST-8 | -8 | Super Tough |
| 492ST-10 | -10 | Super Tough |
| 492ST-12 | -12 | Super Tough |
| 492ST-4 | -4 | Super Tough |
| 492ST-5 | -5 | Super Tough |
| 492ST-16 | -16 | Super Tough |
| 492ST-20 | -20 | Super Tough |
| 492TC-4 | -4 | Tough Cover |
| 492TC-5 | -5 | Tough Cover |
| 492TC-6 | -6 | Tough Cover |
| 492TC-8 | -8 | Tough Cover |
| 492TC-10 | -10 | Tough Cover |
| 492TC-12 | -12 | Tough Cover |
| 492TC-16 | -16 | Tough Cover |
| 492TC-20 | -20 | Tough Cover |
Description

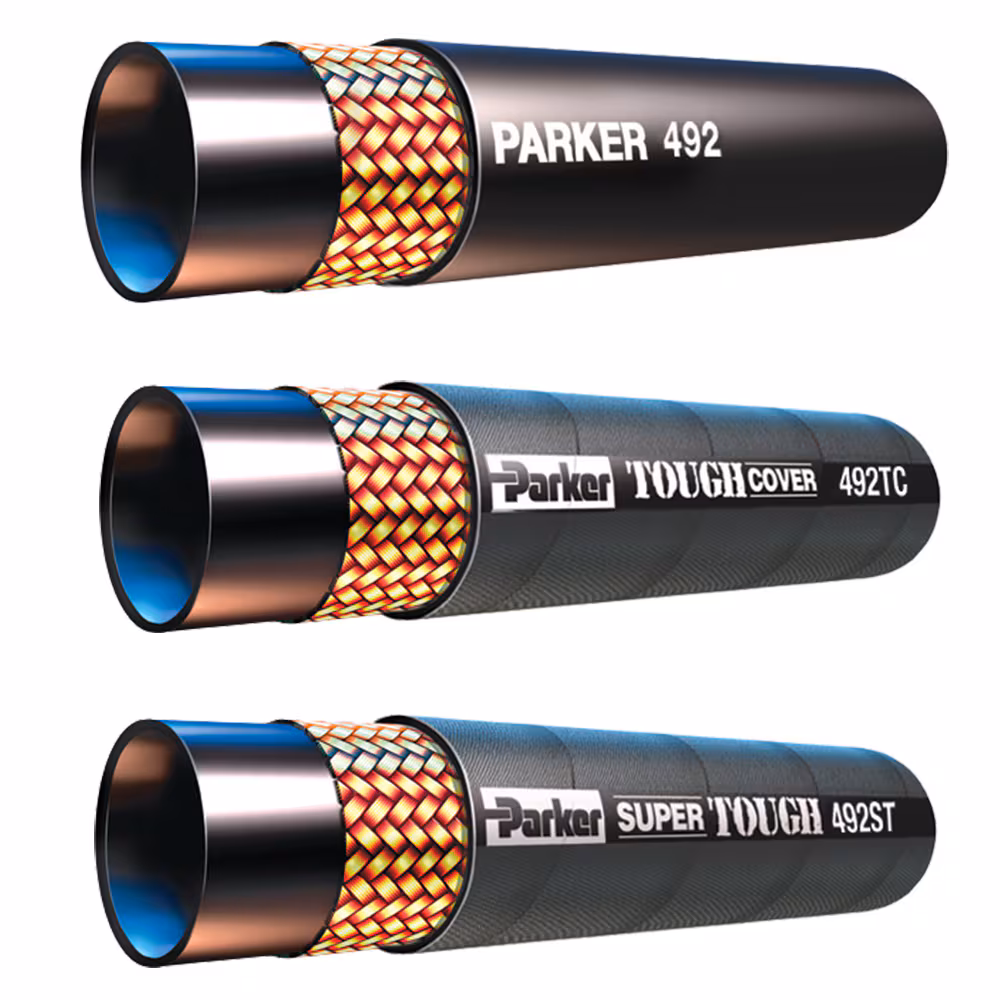

Parker’s Medium Pressure Elite No-Skive Compact hose range 492, 492TC, 492ST – according to EN 857 1SC – ISO 11237 Type 1SC offers an excellent solution for the more demanding market requirements and is exceeding ISO and EN specifications. Advanced materials and production technologies are applied to address the market’s top compact hose application priorities such as routing ease, abrasion resistance, bend radius, media and environmental influence. This medium pressure hoses are available with standard cover, tough cover (TC) and super tough cover (ST). Tough cover offers 80 x and super tough cover even 450 x greater abrasion resistance than standard rubber cover hoses. The Medium Pressure hose range is complemented by a full selection of compatible No-Skive fittings in steel and stainless steel.
Markets:
• Construction Equipment
• Injection Moulding
• Forestry and Agriculture
• Materials Handling
• Pulp and Paper
Features/Benefits:
• Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety
combined with the longest service life of the final product to the end-users.
• High quality compounds allows thin covers, less weight, long service life.
• High flexibility for easier installation and increased service life.
• High abrasion resistance hose covers superior to ISO 6945 requirements, extending service life.
• Small bend radii and light weight for applications where space and weight are determining factors.
• High ozone-resistant cover compounds extending weathering and aging resistance.
• Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and
safer hose assembly.
Applications:
• All mobile and industrial medium pressure applications
• Construction machines
• Agriculture and forestry machines
• Materials handling machines
• Automotive/machine tool
• Injection moulding and pulp and paper machines
Parker’s Medium Pressures Hoses 492, 492TC, 492ST are compatible with the Parker Parkrimp medium pressure fitting series 46
