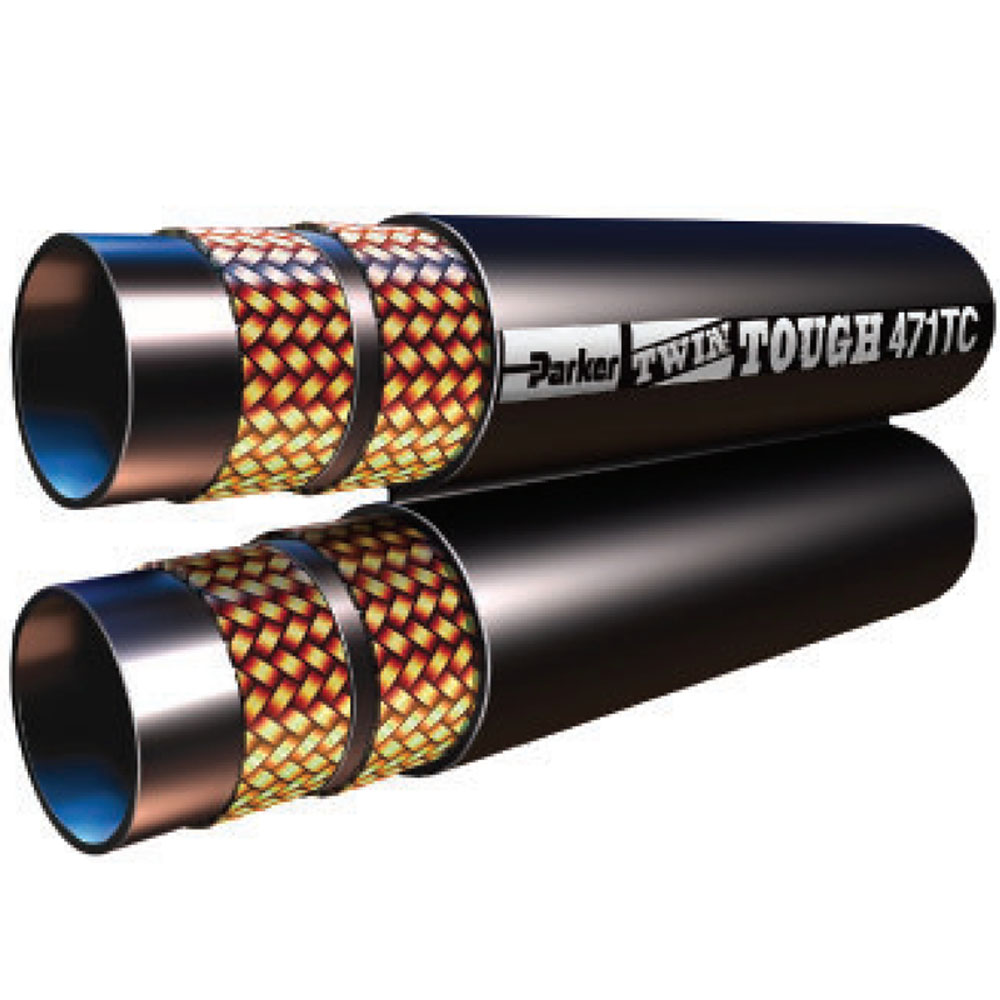

471TC Twin Tough
Certification: EN 857, Type 2SC, ISO 11237, Type 2SC, SAE J1942
Description
Parker’s 471TC Twin Tough hose working pressure of 4250-5000 PSI, was designed to eliminate the labor and material costs required to manually bundle two separate hoses.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | EN 857, Type 2SC, ISO 11237, Type 2SC, SAE J1942 |
| Compatible Fitting: | 43 Series |
| Maximum Operating Pressure: | up to 350 bar, up to 35.0 MPa, up to 5000 psi |
| Weight: | 0.30 to 1.17 kg/m, 0.20 to 0.79 lb/ft |
| Inside Diameter: | 1/4 to 1 inch, 6.3 to 25 mm |
| Application: | Construction Equipment, Hydraulics, Industrial, Material Handling |
| Hose Reinforcement Material: | 2 Braids of Steel Wire |
| Minimum Bend Radius: | 65 to 90 mm |
| Size: | -6 to -8 |
| Outside Diameter: | 0.51 to 1.40 inch, 13 to 35 mm |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber Abrasion Resistant, MSHA approved |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Hose Cover Type: | Tough Cover |
Additional information
| Part Number | 471TC-6-6, 471TC-8-8 |
|---|
