6751
SAE J20R1 Class A
Description

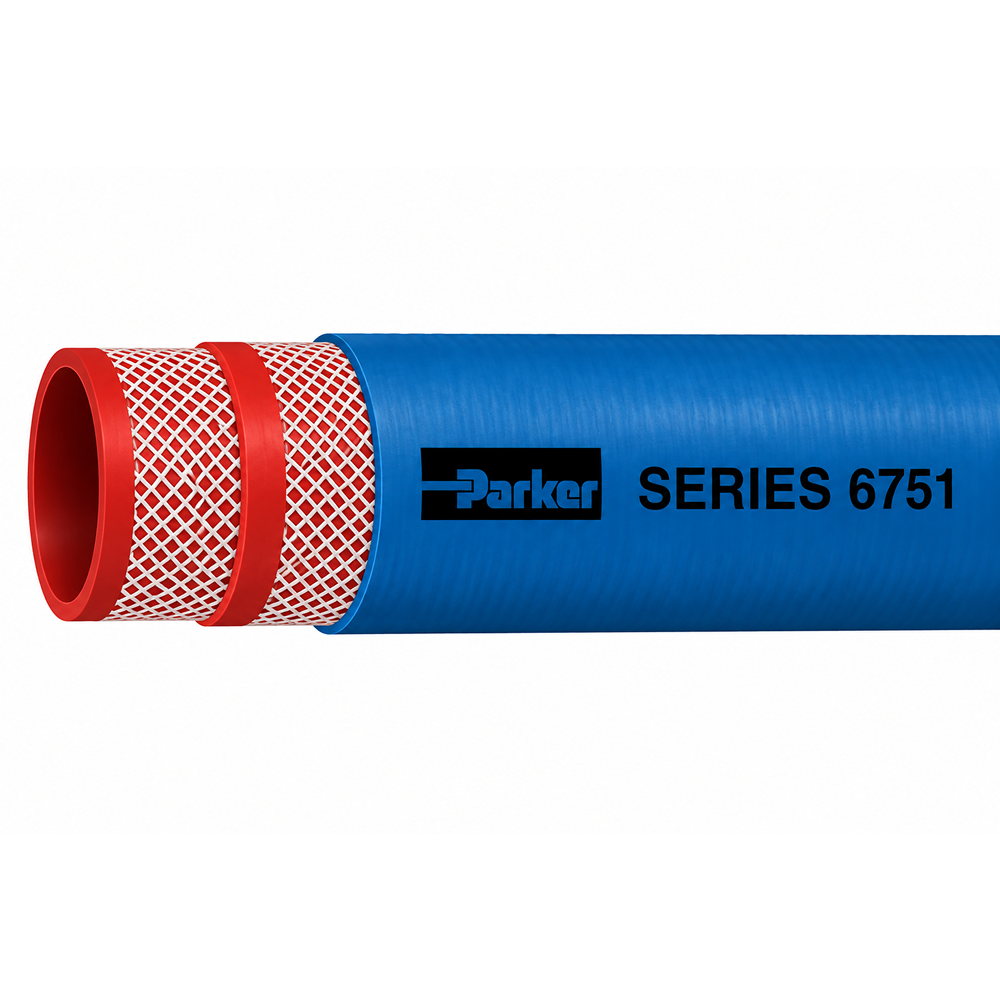

Silicone Heavy Duty High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6751
Technical Specifications
| Cover Material: | Silicone |
| Media: | Coolants |
| Inside Diameter: | 1/4 to 5 inch, 6.4 to 127.0 mm |
| Maximum Operating Pressure: | 1.1 to 11 bar, 0.1 to 1.1 MPa, 16 to 159 psi |
| Hose Reinforcement Material: | Multiple Plies of High Temperature Textile |
| Application: | Engine |
| Outside Diameter: | 16.0 to 136.7 mm, 0.630 to 5.880 inch |
| Size: | -4 to -80 |
| Nominal Hose Inside Diameter: | 8 to 125 mm |
| Quantity per Box: | 1 x 3-ft Lengths |
| Package Type: | Carton |
| Hose Inner Tube Material: | Brick Red, Silicone |
| Cover Color: | Blue |
| Cover Structure: | Glossy |
| Minimum Operating Temperature: | -65 °F, -54 °C |
| Maximum Operating Temperature: | 392 °F, 200 °C |
| Weight: | 0.50 to 5.20 lb/ft, 0.74 to 7.73 kg/m |
| Minimum Burst Pressure: | 49 to 477 psi, 3.8 to 32.9 bar |
| Minimum Bend Radius: | n/a |
Additional information
| Part Number | 6751-1000003, 6751-2313003, 6751-3500003 |
|---|
