7116M
N/A
Description

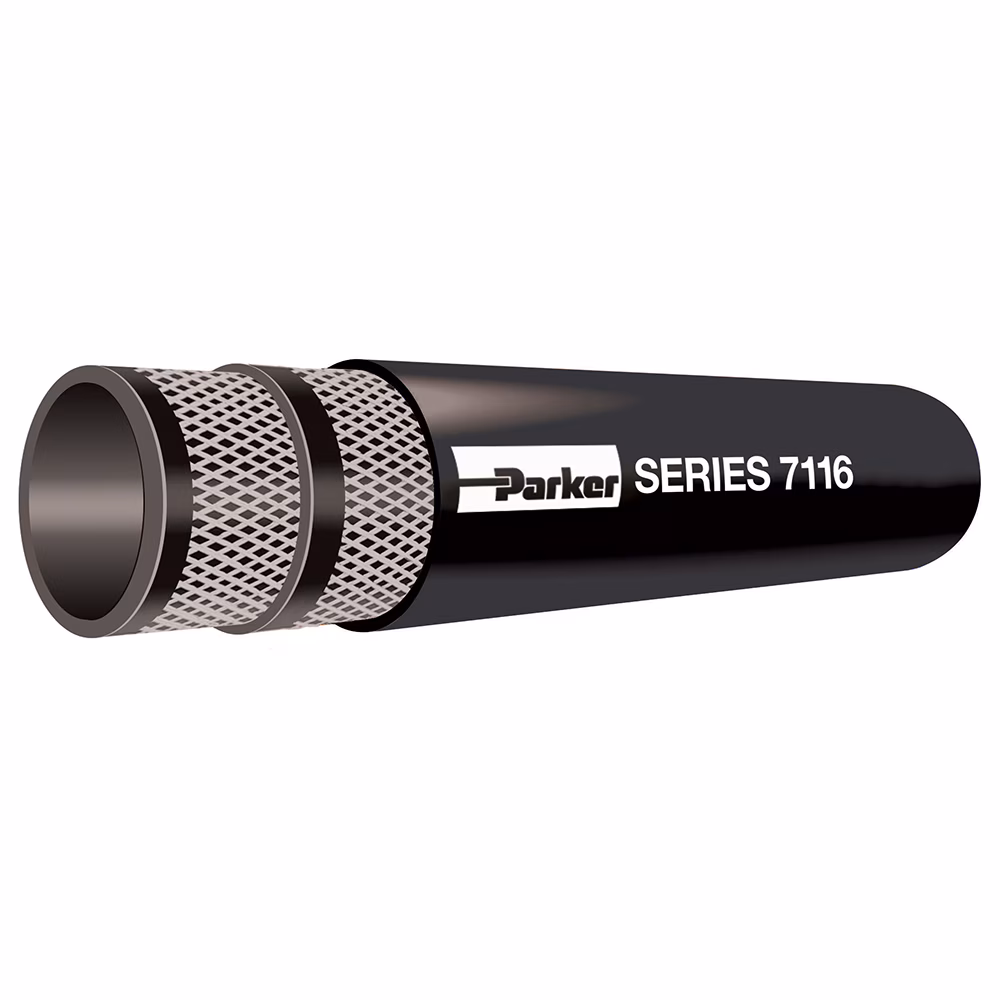

Soft-Flex Diesel Exhaust Fluid (DEF) Dispenser Hose is designed to transfer diesel exhaust fluid from powered dispensers to 212°F and 150 psi, Series 7116M
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Application: | Media Transfer |
| Media: | Chemicals (DEF Fluids), Chemicals (Urea) |
| Specifications Met: | n/a |
| Compatible Fitting: | HBL-C Series |
| Inside Diameter: | 3/8 to 3/4 inch, 9.5 to 19.1 mm |
| Hose Reinforcement Material: | Mutiple Plies of Textile |
| Maximum Operating Pressure: | 1 MPa, 150 psi, 10 bar |
| Package Type: | Reel |
| Nominal Hose Inside Diameter: | 15 to 25 mm |
| Outside Diameter: | 0.7 to 1.2 inch, 16.7 to 29.4 mm |
| Size: | -8 to -16 |
| Cover Color: | Black |
| Cover Structure: | Smooth |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Design Factor: | 4:1 |
| Weight: | 0.13 to 0.34 lb/ft, 0.19 to 0.51 kg/m |
| Minimum Bend Radius: | 4 to 6 inch, 97 to 152 mm |
| Length per Package: | 400 to 700 ft |
Additional information
| Part Number | 7116M-380, 7116M-500, 7116M-750 |
|---|
