7122
N/A
Description

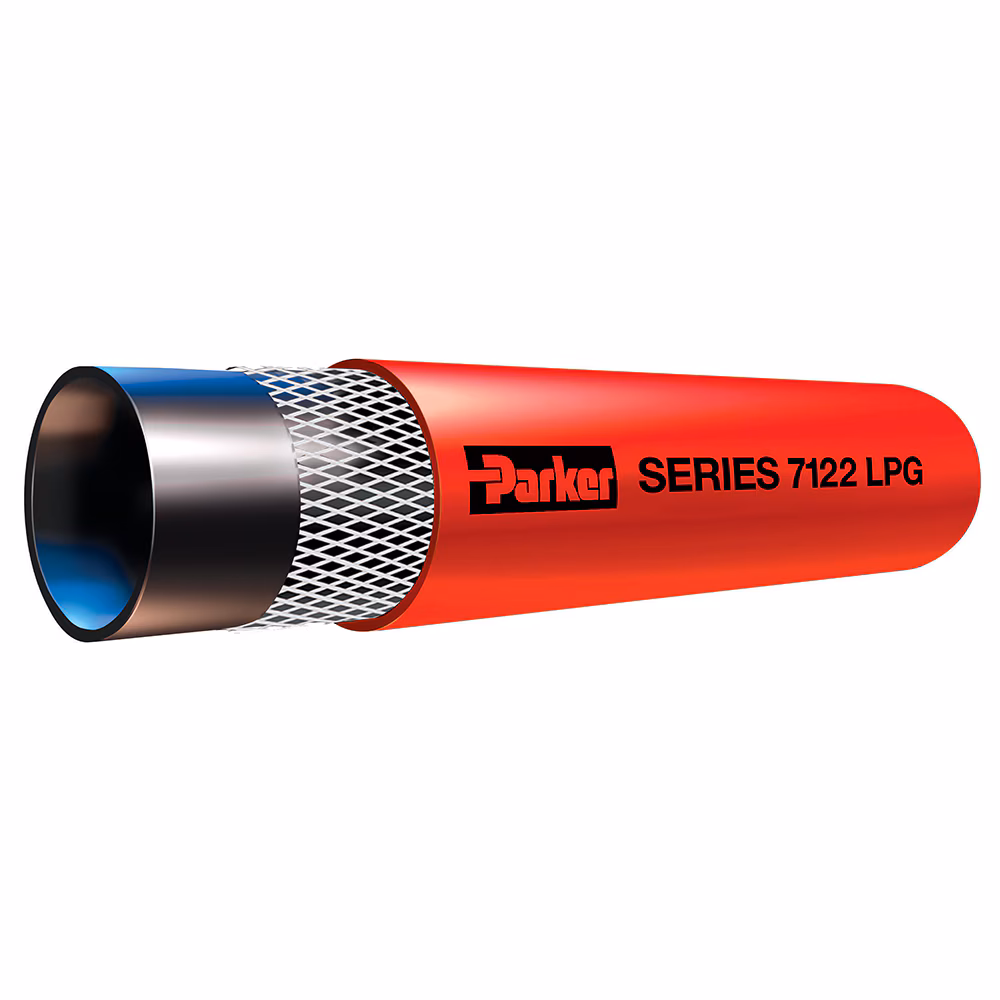

Liquid Petroleum Gas Vapor Hose is designed for light duty propane vapor line service light duty in applications to 140°F and 125 psi, Series 7122
Technical Specifications
| Cover Material: | Chloroprene Rubber (CR) |
| Cover Structure: | Smooth, Perforated |
| Application: | Compressed Gas |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Weight: | 0.15 lb/ft, 0.07 kg, 0.22 kg/m |
| Maximum Operating Pressure: | 0.7 MPa, 125 psi, 8.6 bar |
| Nominal Hose Inside Diameter: | 10 mm |
| Specifications Met: | n/a |
| Compatible Fitting: | HY Series |
| Inside Diameter: | 9.5 mm, 3/8 inch |
| Outside Diameter: | 16.7 mm, 0.656 inch |
| Package Type: | Reel |
| Size: | -6 |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Red |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Maximum Operating Temperature: | 160 °F, 71 °C |
| Minimum Bend Radius: | 3.8 inch, 96.5 mm |
| Length per Package: | 700 ft |
Additional information
| Part Number | 7122-38200 |
|---|
