7165
CARB SORE, ISO 7840 A1, SAE J1527, Type A1-15, USCG A1
Description

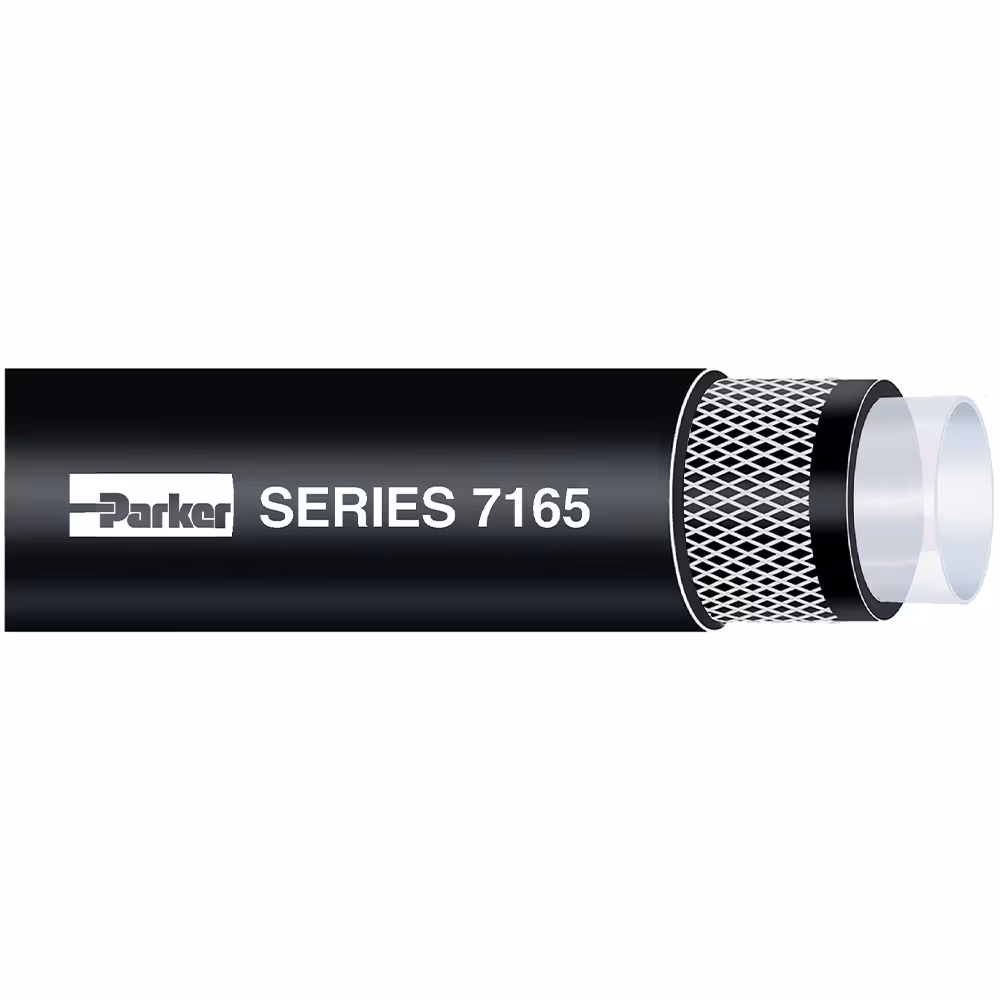

Wavemaster™ series 7165 is a premium grade marine barrier fuel line/venting hose where low permeability levels for efficient engines are required.
Technical Specifications
| Weight: | 0.11 to 0.34 lb/ft, 0.16 to 0.51 kg/m |
| Industry: | Marine |
| Hose Inner Tube Material: | Translucent, Polyamide (PA) |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Application: | Automotive, Boat |
| Product Type: | Transfer Hose, Fuel Hose |
| Product Style: | Suction and Delivery |
| Cover Material: | Nitrile/PVC |
| Technology: | Fluid & Gas Handling |
| Materials of Construction: | Rubber |
| Minimum Bend Radius: | 2.5 to 4.5 inch, 63.5 to 114.3 mm |
| Media: | Fuels (Diesel, Gasoline) – Check fuel type with our catalogue chart. |
| Compatible Fitting: | n/a |
| Inside Diameter: | 1/4 to 3/4 inch, 6.3 to 19 mm |
| Maximum Operating Pressure: | 5.2 to 7 bar, 75 to 100 psi |
| Hose Reinforcement Material: | Mutiple Plies of Textile |
| Division: | Polymer Hose Division Europe |
| Outside Diameter: | 0.535 to 1.126 inch, 13.6 to 28.6 mm |
| Specifications Met: | CARB SORE, ISO 7840 A1, SAE J1527, Type A1-15, USCG A1 |
Additional information
| Part Number | 7165-25250, 7165-31250, 7165-38250, 7165-50250, 7165-63250, 7165-75250 |
|---|
